Option: Piezo Button Single Temperature Application Master-Trol®

Name: Option: Piezo Button Single Temperature Application Master-Trol®
Brand: Acorn Engineering Company
SKU: EVSP1

Find A Representative

Model EVSP1

Submittal

2 available

Model EVSP1

Option: Piezo Button Single Temperature Application Master-Trol®

Learn more about electric water management

This single temperature valve is for use with the Master-Trol Valve Controller. The 24VAC solenoid, soft closing valve features piezo touch activation and is provided with a stainless steel strainer and integral checkstop. The Piezo buttons have no moving parts and are touch activated. When the Piezo buttons are touched this closes the circuit and activates the controller which activates the valve. Valve conforms with the lead free requirements of NSF61, Section 9, 1997; Federal Public Law 111-380 and ADA requirements. Refer to EVS catalog sheets regarding Master-Trol options and technical data.Valve Specification:Minimum Pressure: 30 PSI (206.84 KPA)Maximum Pressure : 100 PSI (689.48 KPA)Maximum Water Temperature 130°F (54°C)EVSP1 -Standard ValveEVSP1-BRS -Lead-Free Brass Valve Body and Checkstop Assembly

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Submittal Master-Trol (EVS Series)	Master-Trol General Submittal	788 KB
Submittals	Spec Sheet Option -EVSP1	Piezo Button Single Temperature Application Master-Trol®	605 KB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB
Videos	24 Volt Troubleshooting (video)	How to service an Acorn Engineering 24 Volt Operated Valve System	132 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Valve
Product Features	Piezo Button, Hot & Cold
Ligature Resistant	Yes
Institutional Applications	Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings
Commercial Applications	Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena
Park and Recreation Applications	Yes

Details

Regularly Furnished:

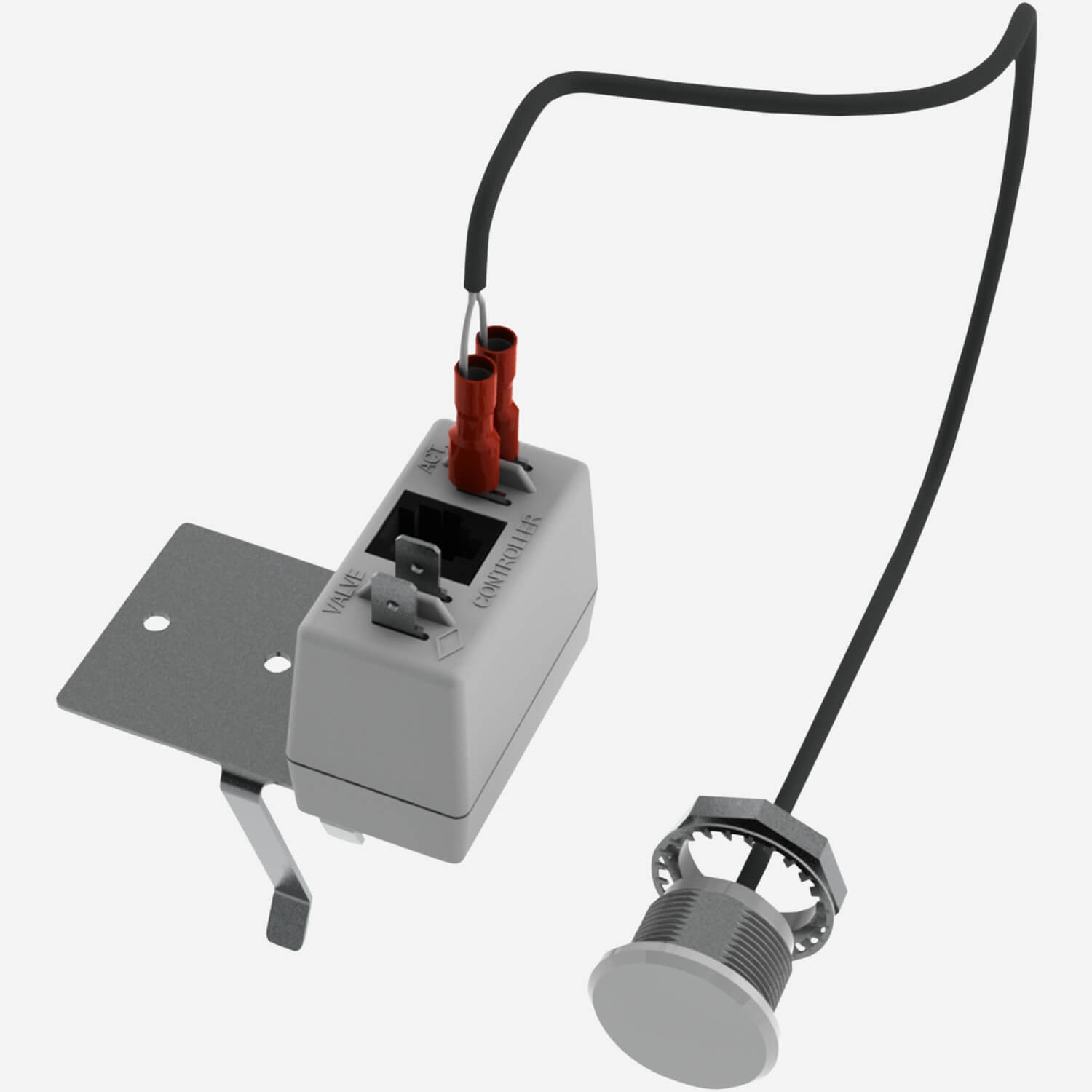

Piezo pushbutton assembly; solenoid valve & checkstop typically on a galvanize steel mounting plate

Product Function:

Providing single temperature activating piezo pushbutton solenoid valve for Master-Trol System

Product Variations

Image	Model ID	Description
	EVS1	Option: Single Temperature Application Master-Trol®
	EVS2	Option: Hot & Cold Application Master-Trol®
	EVSFV	Option: Flush Valve Application Master-Trol®
	EVSFV-FTE	Option: Master-Trol® Flush Valve with Flood-Trol® Anti-Flood System
	EVSP2	Option: Piezo Button Hot & Cold Application Master-Trol®
	EVSPFV	Option: Piezo Button Flush Valve Application Master-Trol®
	EVSPFV-FTE	Option: Piezo Button Flush Valve with Flood-Trol® Anti-Flood System Application Master-Trol®
