Model EVSPFV-FTE
Option: Piezo Button Flush Valve with Flood-Trol® Anti-Flood System Application Master-Trol®

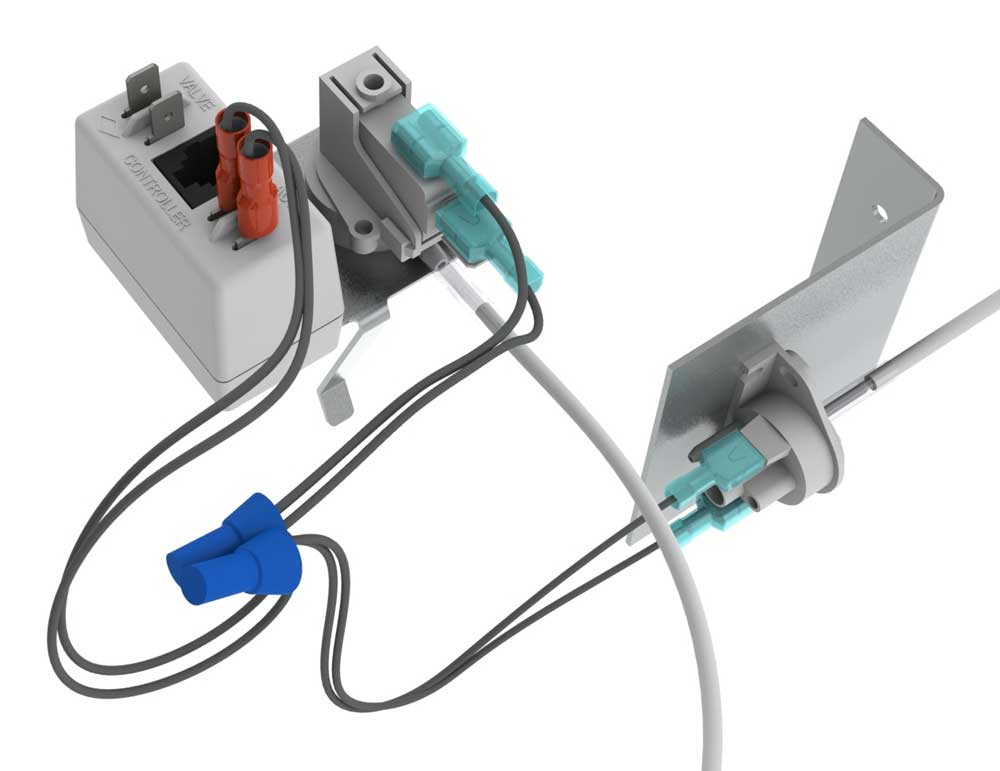

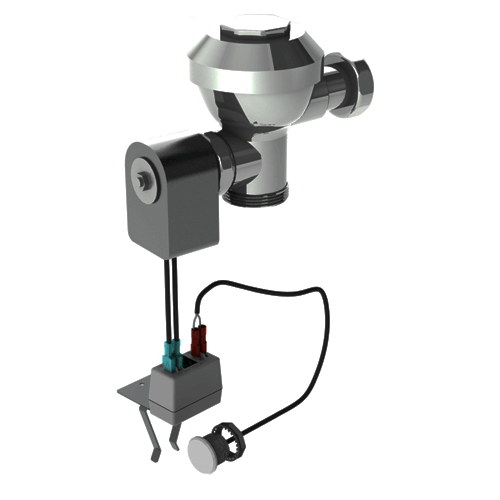

This option is for the electronic valve system with a single Piezo pushbutton. The Piezo pushbutton has no moving parts and is touch activation. When the Piezo pushbutton is touched this closes the circuit and activates the controller which activates the flush valve. An automatic reset Flood-Trol system is added to make the toilet resistant to overflowing. Once the water is above the Flood-Trol port this makes pressure on the switch then will not let the toilet flush until the pressure on the Flood-Trol switch is released.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Flush Valve with Flood-Trol®(Anti-Flood System) Master-Trol® or Time-Trol | 0 | 502 KB | ||
| | Master-Trol General Submittal | 0 | 788 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
 | | How to service an Acorn Engineering 24 Volt Operated Valve System | 0 | 132 KB |
Specifications
| Product Type | Valve |
| Ligature Resistant | Yes |
| Institutional Applications | Correctional, Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
