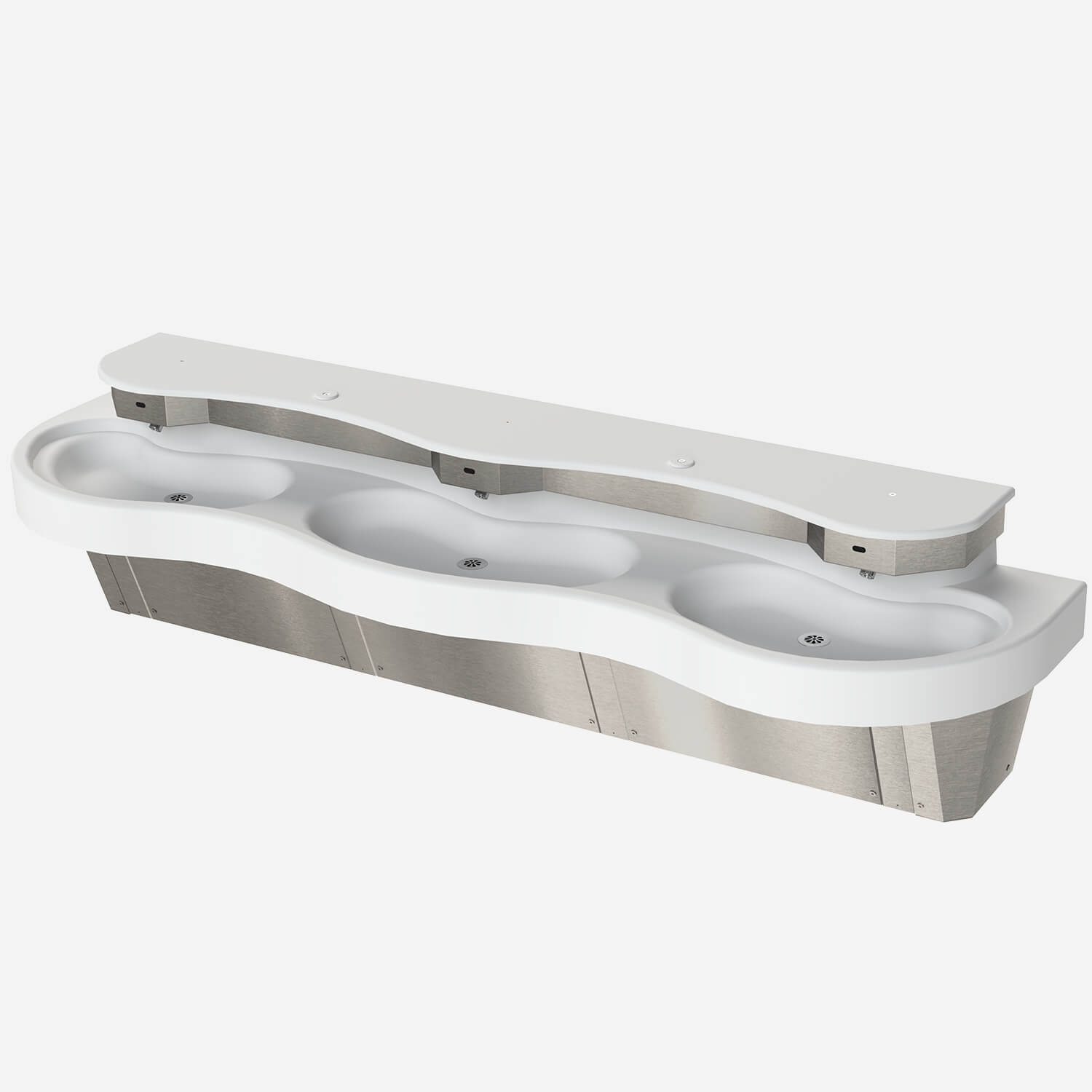

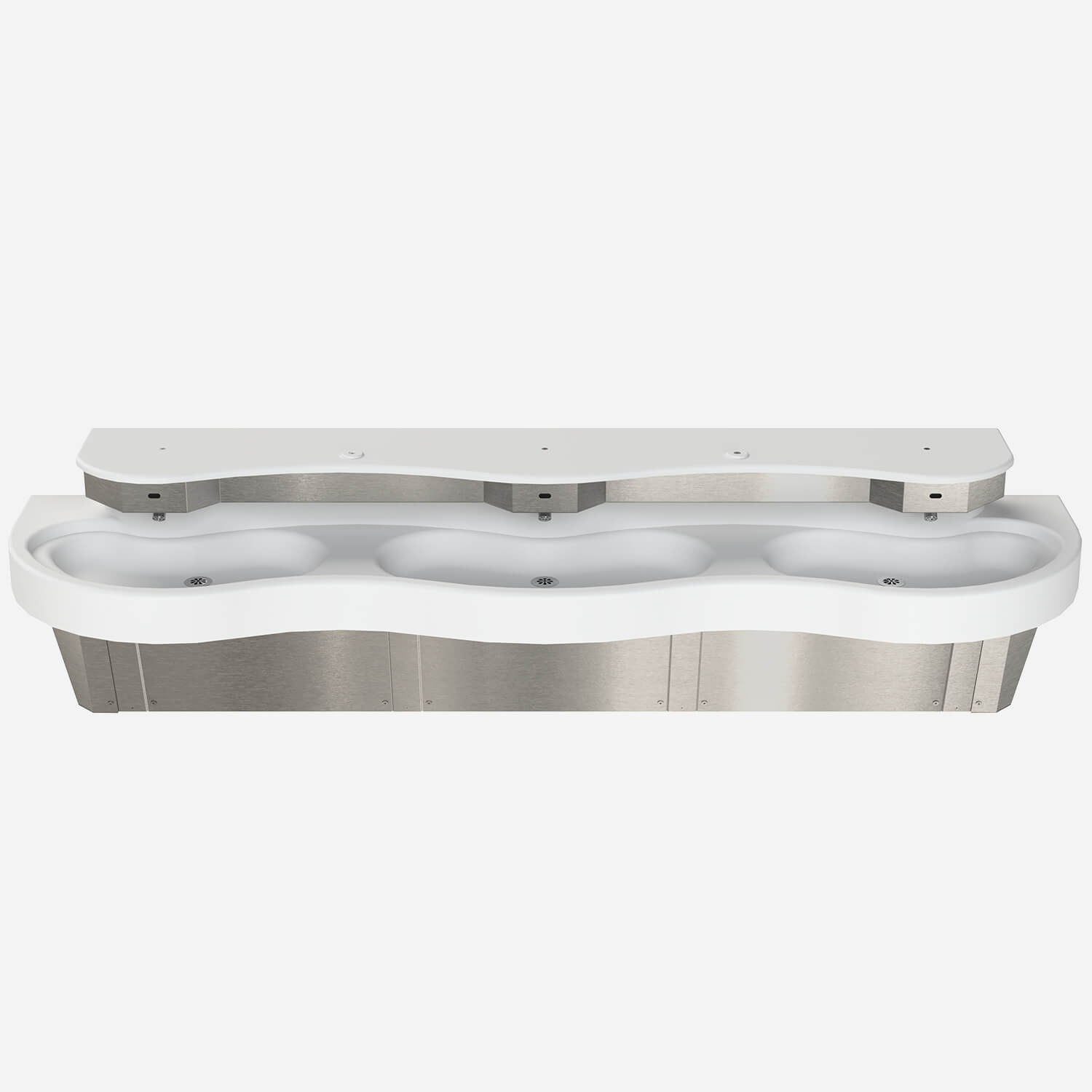

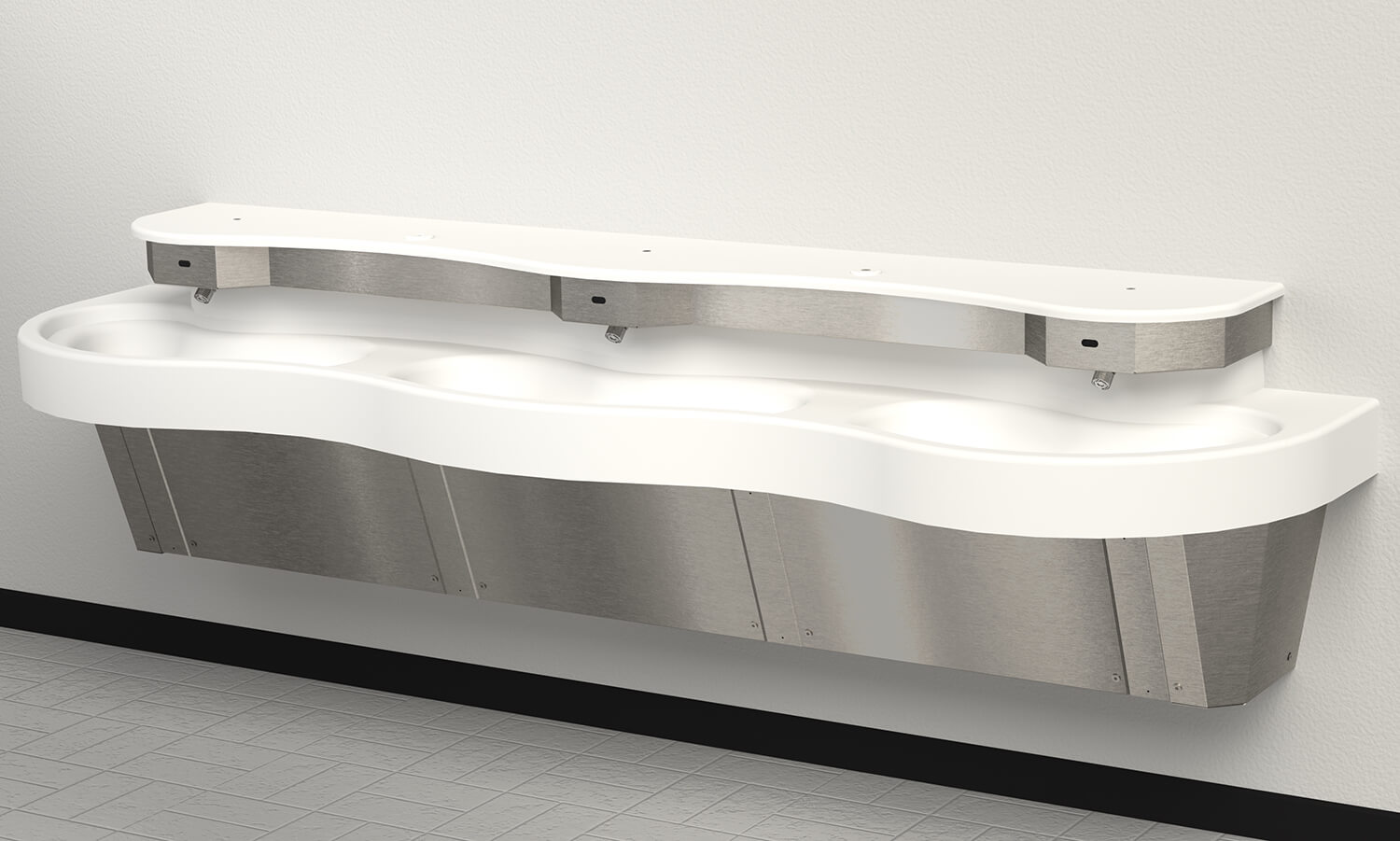

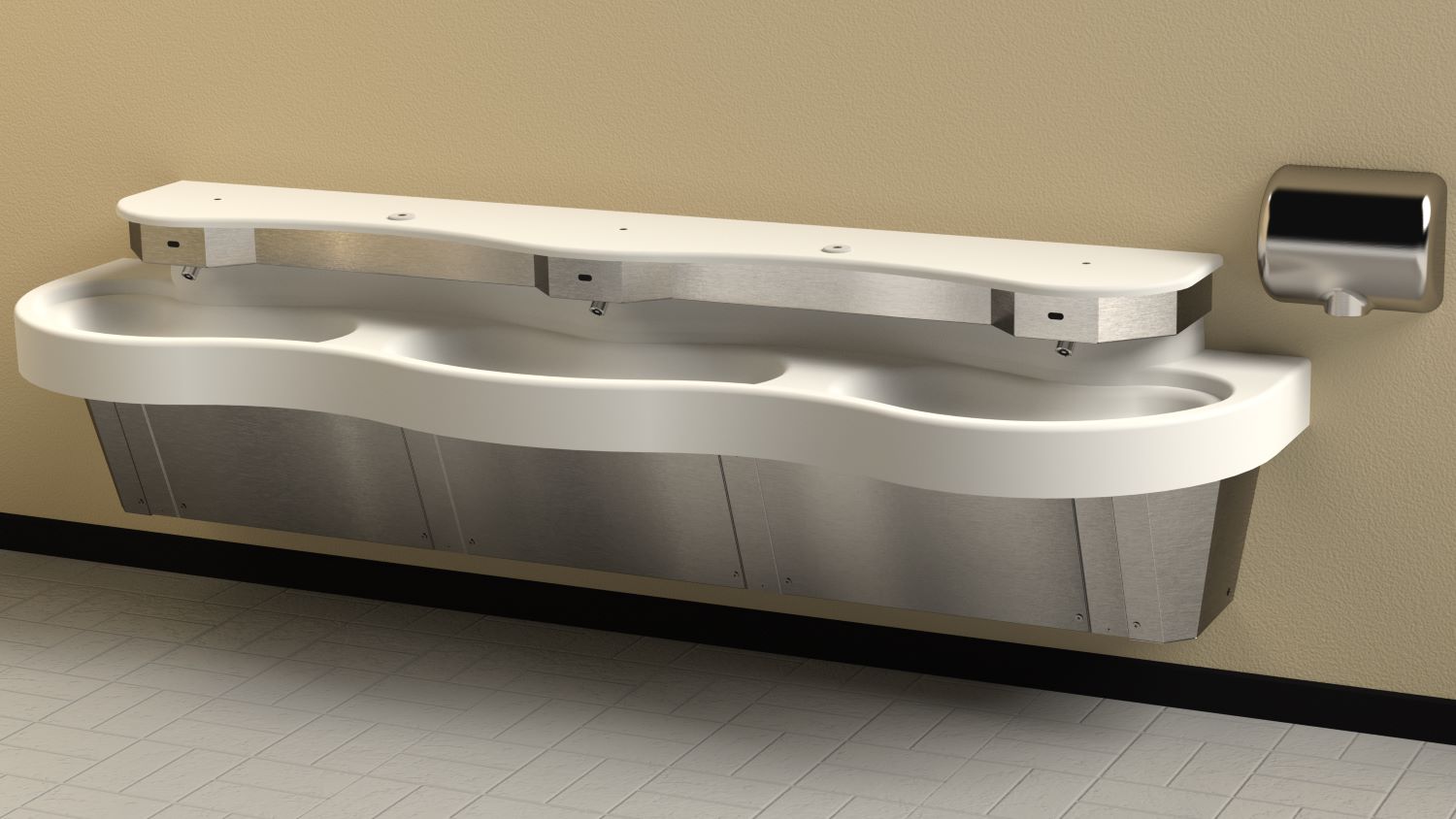

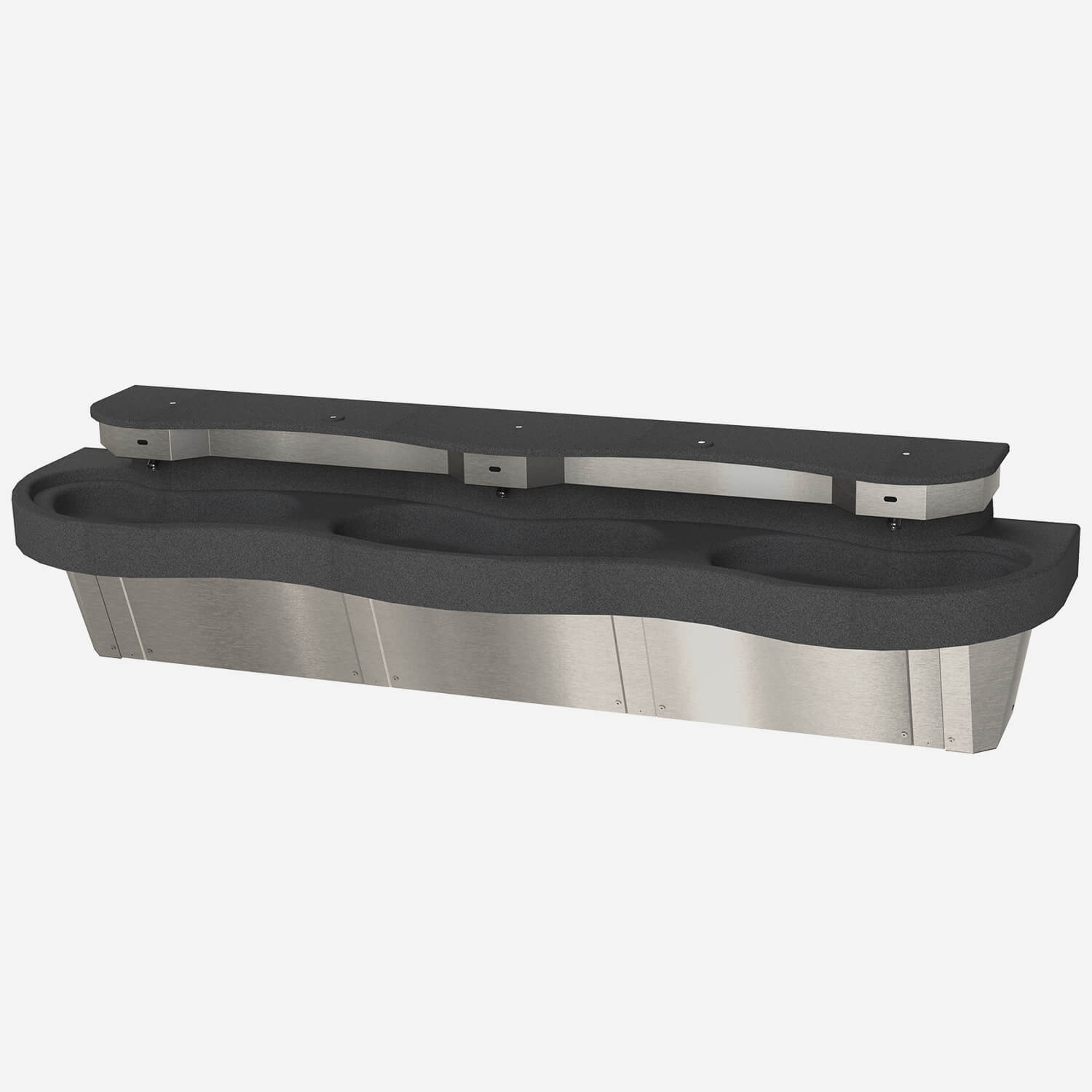

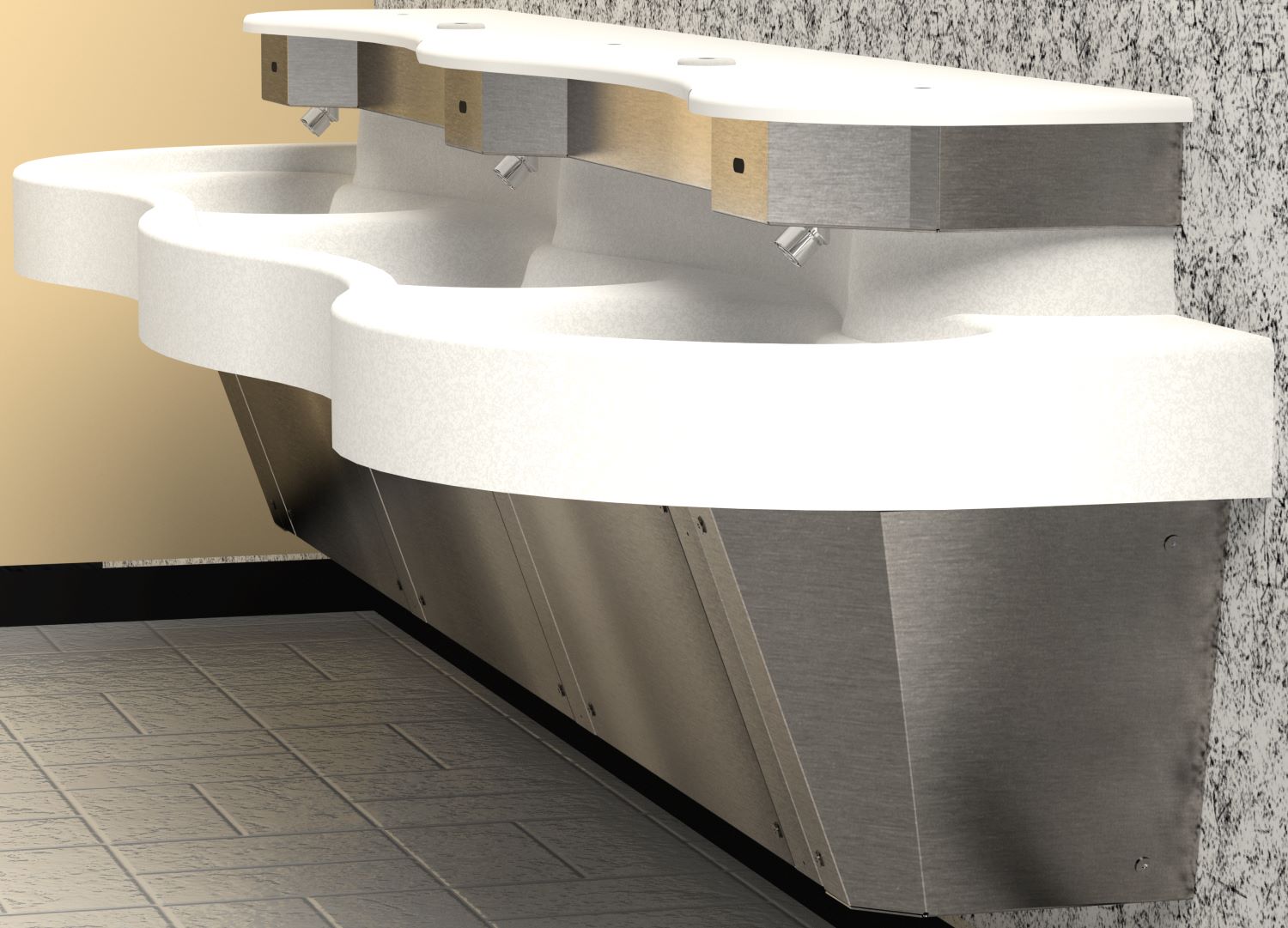

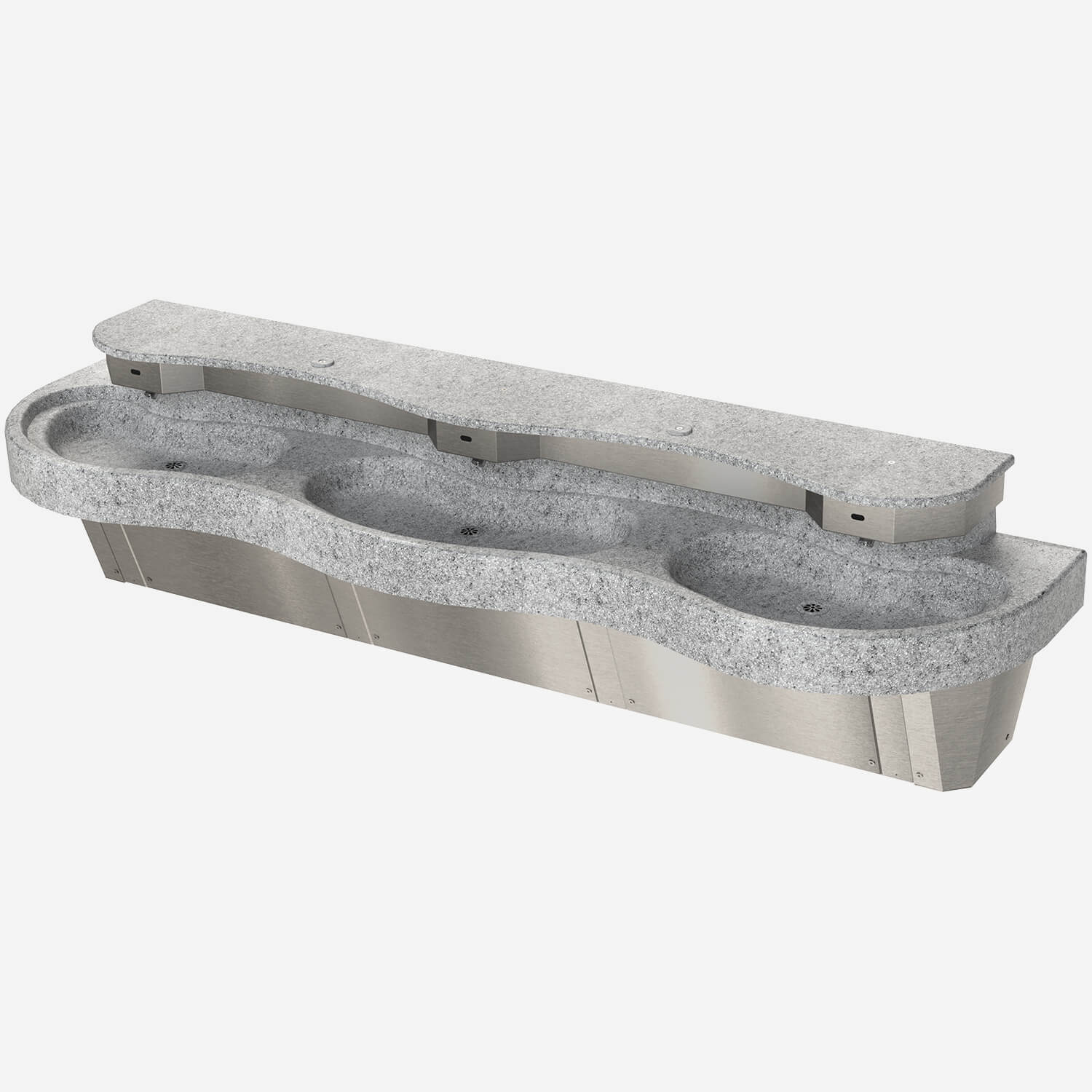

Three Station, Cast Solid Surface Kurve® Wash Basin
Constructed with long lasting, impact and stain resistant Corterra® solid surface material, Meridian® Kurve® wash basins are ideal for institutional and public installations. This three-station wash basin features a wall mount, off-floor with wall waste outlet configuration, a curve front design and is ADA compliant when installed properly.
T/P Mixing Valve is ASSE 1070 compliant and delivers constant water flow by compensating for temperature and pressure fluctuations. Valve is to be field set to 105° Fahrenheit and includes Integral Checks and Screens to prevent cross-flow and contamination. Operating range is 30 PSI - 100 PSI.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Three Station Cast Solid Surface (Corterra®) Kurve® Wash Basin | 0 | 3 MB | ||
| | Three Station Cast Solid Surface (Corterra®) Kurve® Wash Basin | 0 | 230 KB | ||
 | | Three Station, Cast Solid Surface Kurve® Wash Basin | 0 | 800 KB | ||
| | Three Station, Cast Solid Surface Kurve® Wash Basin | 0 | 456 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Product Type | Wash Basin |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1) |
| Brand | Meridian, Kurve®, Acorn ConTrols® Inside |
| Material | Corterra® Solid Surface |
| Mounting | Wall Mounted |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Bowl Shape | Curve |
| Compliance | UL Greenguard, ADA Compliant, Federal Public Law 111-380 |
| Overall Dimensions | 84" (Side-to-Side) x 20.75" (Front-to-Back) |
| Stations-Users | 3 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | DV | Option: Liquid/Lotion Soap Dispenser | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||

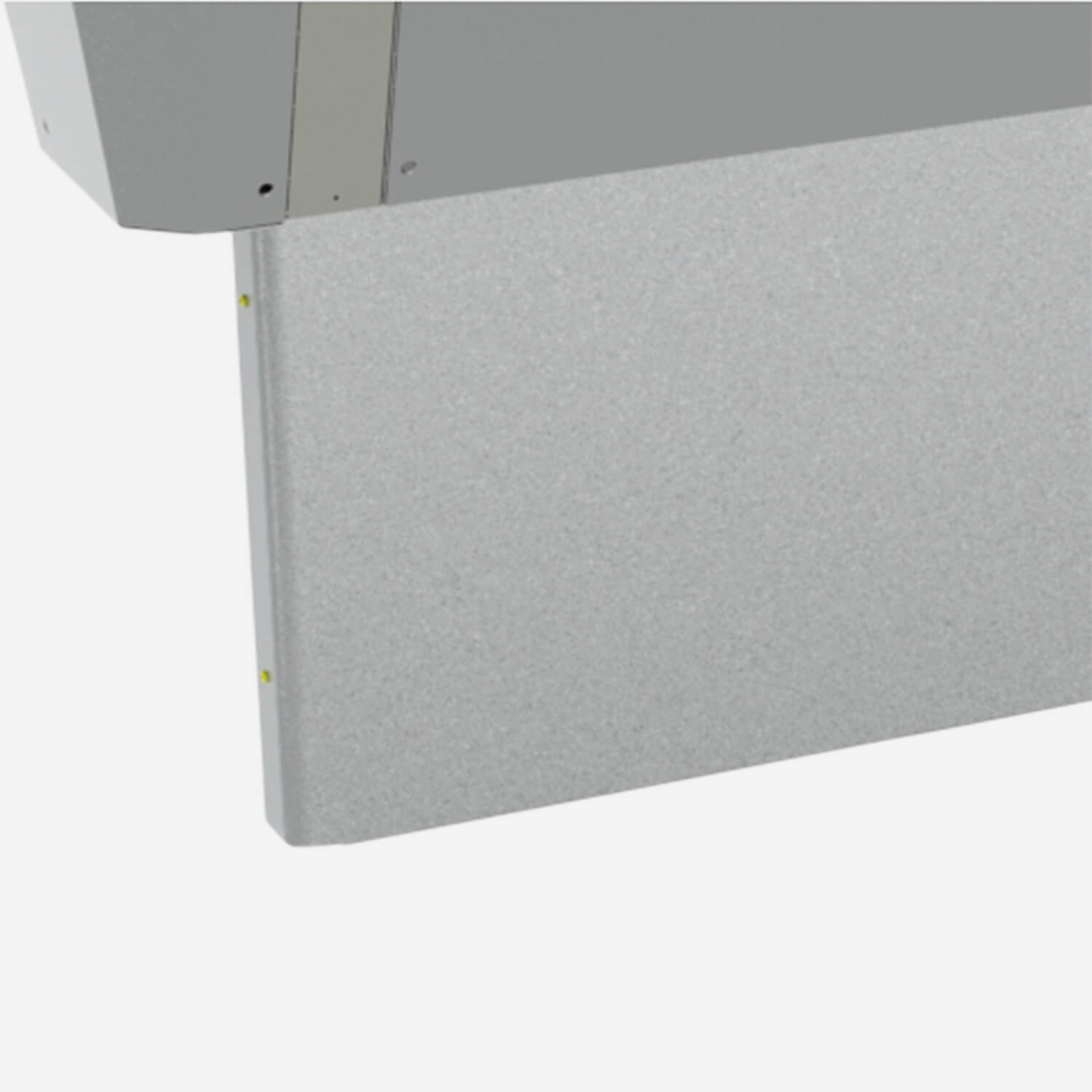

 | KP3 | Option: Kick Plate for Three-Station | ||
 | LWP | Option: Less Waste Piping | ||
 | OCC | Option: Corterra® Solid Surface | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | ST | Option: Single Temperature |
Models
3793-1
-H | Hand Operation
-PPZ | Programmable Piezo Button Electronic Metering
-PPZ-BAT | Programmable Piezo Button, Battery Powered (batteries not included)
-SO | Sensor Operation
-SO-BAT | Sensor Operation, Battery Powered (batteries not included)
Product Variations
Image | Model ID | Description |
|---|---|---|
 | 3791 | One Station, Cast Solid Surface Kurve® Wash Basin |
 | 3792 | Two Station, Cast Solid Surface Kurve® Wash Basin |
