Foot Pump - Eco Portable Wash-Ware® Hand Washing Station

Find A Representative
Model EPS1010
Installation Instructions
Assembly Guide EPS1000 Series Hand Wash
View
Submittal
Submittal EPS1000 Series Hand Wash
View
Model EPS1010

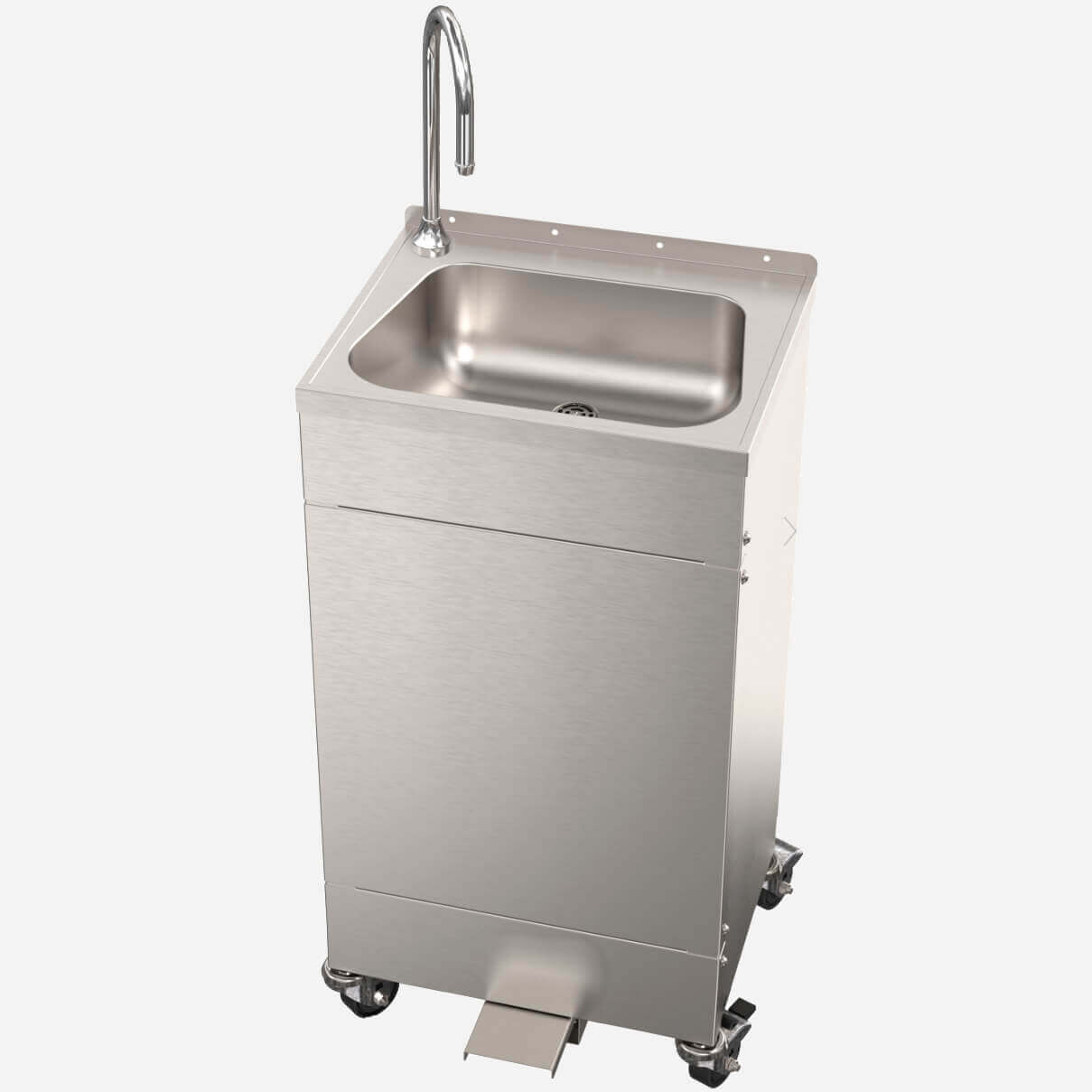

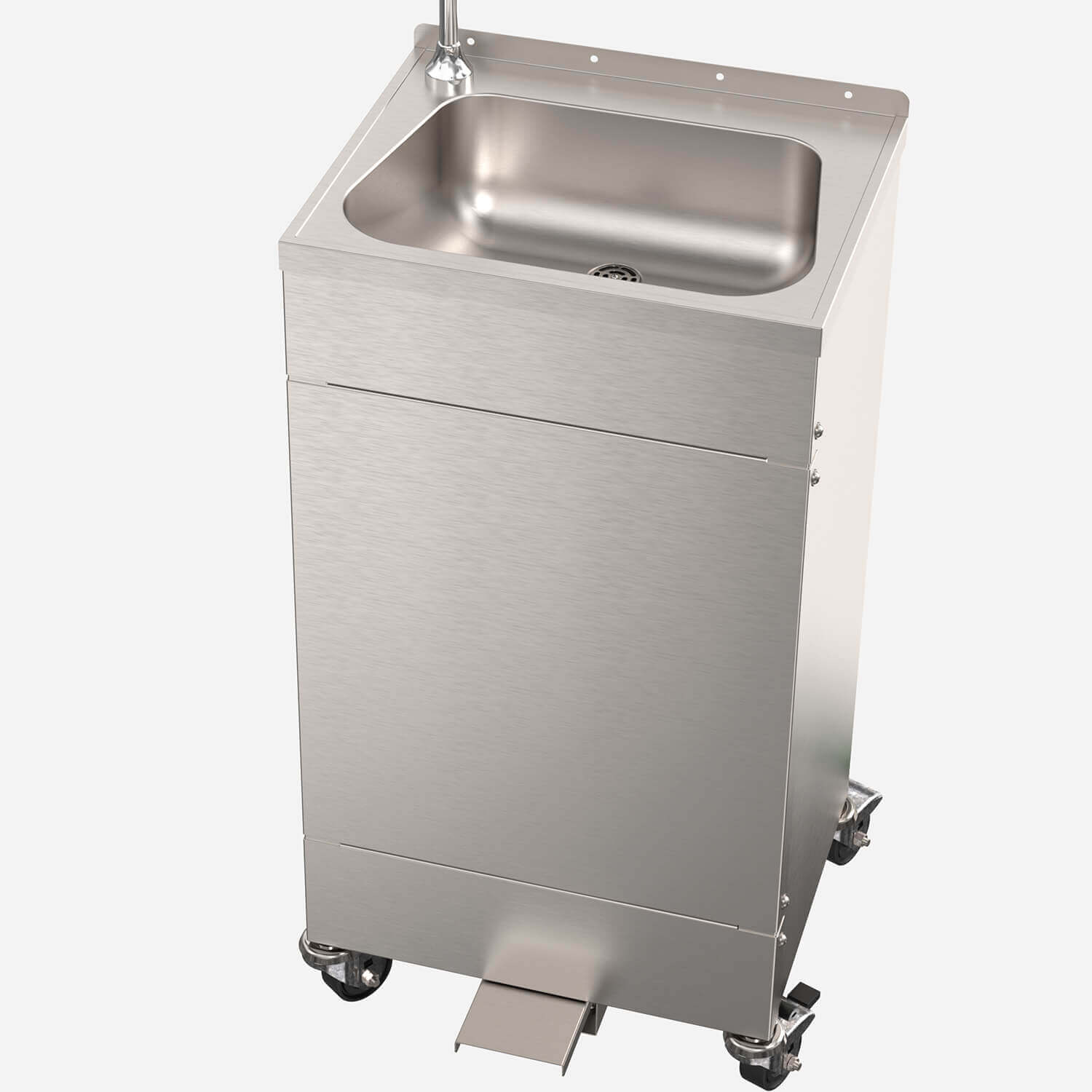

Foot Pump - Eco Portable Wash-Ware® Hand Washing Station

Value-Priced Stainless Steel Portable Sinks! Designed to provide hand washing capabilities in areas not normally equipped for it, Eco Portable Wash-Ware hand sinks are safe for both indoor and outdoor use.

This model provides two onboard 6.5-gallon (24 liter) tanks for fresh water and waste, a foot pump for hands-free operation, and four swivel casters (two locking, two standard). The back of the unit is exposed for easy access.

Eco Portable Wash-Ware hand washing stations are designed to allow for convenient flat-pack shipment, as well as a quick and easy setup.

To accommodate young users, Model EPS1010-JR is available with a shorter 31" (787 mm) rim height.

Downloads

Resource Type
Title
Description
Answers
File Size
Action
PDF icon
Manuals
PDF icon
Assembly Guide EPS1000 Series Hand Wash
Eco Portable Wash-Ware® Hand Wash Unit0735 KB
PDF icon
Submittals
PDF icon
Submittal EPS1000 Series Hand Wash
ECO Portable Wash-Ware™ Hand Wash [EPS1010 - Foot Pump; EPS1015 - Hose Supply, Hose Waste; EPS1020 - Hose Supply, Tank Waste; EPS1041 - Hose Supply, Hose Waste, Water Heater]0592 KB
PDF icon
Literature/Brochures
PDF icon
School hand washing with Wash-Ware
Take Students’ Safety Seriously with Acorn® Wash-Ware® Products. Schools often overlook one of the biggest dangers to student health: GERMS.0850 KB
PDF icon
Literature/Brochures
PDF icon
Theme Parks Hand Washing Flyer (pdf)
Increase park safety with hand washing stations.02 MB
PDF icon
Literature/Brochures
PDF icon
MGI Stainless Steel Hand Washing Products Brochure (pdf)
The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated.03 MB
PDF icon
Literature/Brochures
PDF icon
MGI National Parks Brochure (pdf)
Whether at the ranger station or out on the trail, Portable Wash-Ware sinks provide clean, running water.02 MB
PDF icon
Literature/Brochures
PDF icon
Hand Washing Products Brochure (pdf)
Hand Washing Products Brochure (pdf)02 MB
PDF icon
Technical Data Sheets
PDF icon
Cleaning and Care Guide (pdf)
Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo01 MB
Video icon
Videos
Video icon
Using a Funnel to Prime Tankless Water Heater for Select Portable Wash-Ware® Sinks (video)
Using a Funnel to Prime Tankless Water Heater for Select Portable Wash-Ware® Sinks0132 KB
Video icon
Videos
Video icon
How to Prime an Electric Tankless Water Heater Using the Foot Pedal for Portable Wash-Ware® Sinks (video)
How to Prime an Electric Tankless Water Heater Using the Foot Pedal for Portable Wash-Ware® Sinks0132 KB
Video icon
Videos
Video icon
ECO Portable Sink Caster and Pump Installation - EPS1010 by Acorn Engineering
This video contains a step-by-step tutorial for installing the casters and pump on the EPS1010 ECO Portable Sink by Acorn Engineering.0133 KB
Video icon
Videos
Video icon
ECO Portable Sink Assembly Instructions - EPS 1000 Series
This video contains a step-by-step tutorial on assembling the EPS 1000 ECO Portable Sink by Acorn Engineering.0132 KB
Video icon
Videos
Video icon
Faucet Selection Overview for Portable Hand Washing Stations (Video)
This video contains a complete overview of the faucets available for Portable Wash-Ware® by Acorn Engineering Company®, including the Deluxe and Eco portable hand washing station lines.0132 KB
Video icon
Videos
Video icon
Overview of Eco Portable Wash-Ware® Hand Wash Station Accessories - EPS 1000 Series (Video)
This video contains an overview of the accessories for Acorn's Eco Portable Wash-Ware® Hand Washing Stations, part of our EPS 1000 Series.0132 KB
Video icon
Videos
Video icon
EPS1010 Product Overview: Eco Portable Foot Pump Operated Hand Wash (Video)
This video contains an overview of the features and benefits of the EPS1010 Eco Portable Sink from Acorn Engineering's line of Stainless Steel Wash-Ware® Hand Washing Stations.0133 KB

Specifications

BrandEco Portable Wash-Ware®
MaterialStainless Steel
Product TypeLavatory
PatentPending
Indoor/Outdoor UseSuitable for Outdoor Use
Portable Sink Water SupplySelf-Contained
Bowl ShapeTrapezoidal
Faucet OperationFoot Activation
Overall Dimensions19.75" (Side-to-Side) x 15.75" (Front-to-Back)
Stations-Users1

Options

Accessories

Model
Description
Downloads
Accessory: 6.5 Gallon Fresh Water Jug
EPS1000-6.5F
Accessory: 6.5 Gallon Fresh Water Jug

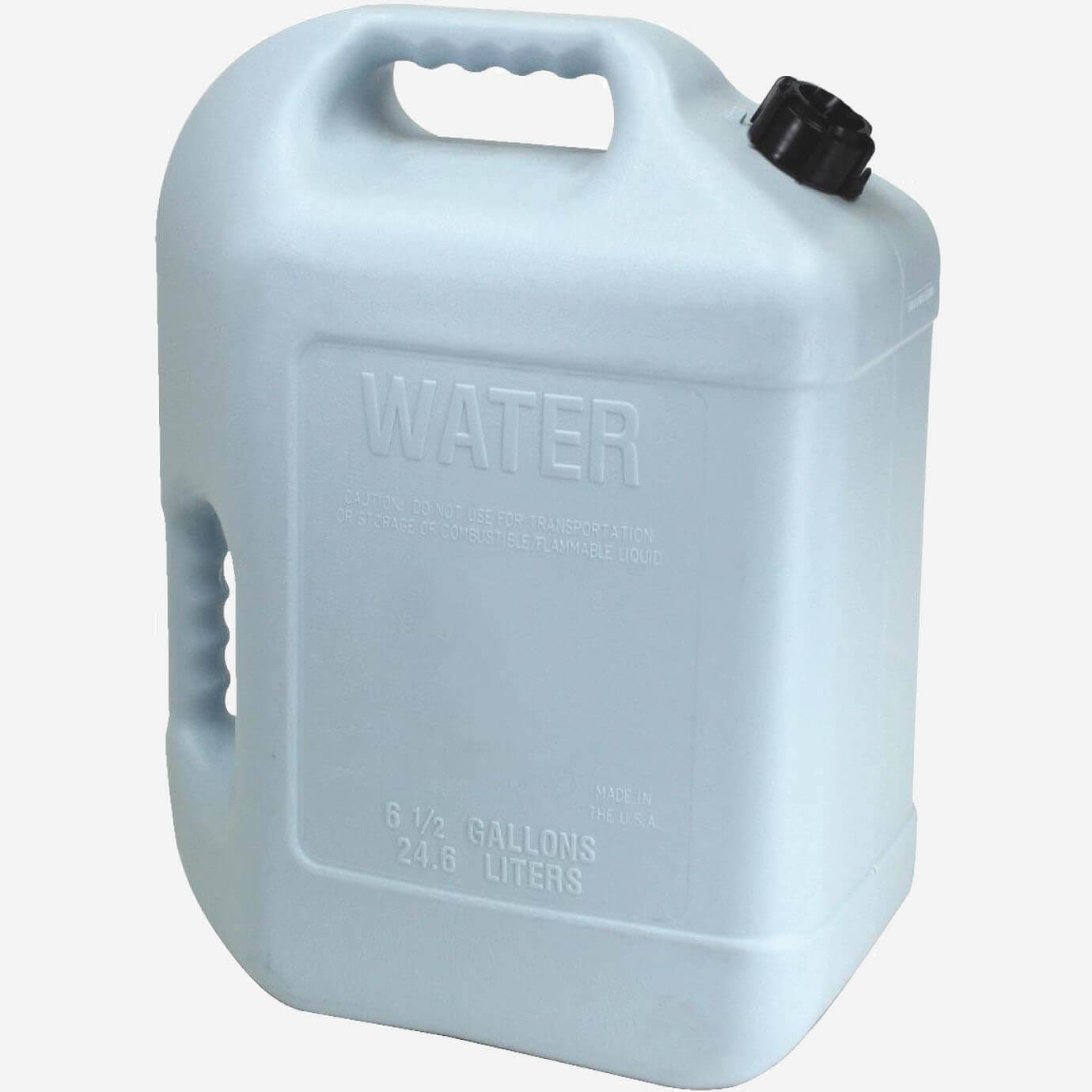

Accessory: 6.5 Gallon Waste Water Jug
EPS1000-6.5W
Accessory: 6.5 Gallon Waste Water Jug
Accessory: Backsplash Only for Eco Portable Hand Wash
EPS1000-BS
Accessory: Backsplash Only for Eco Portable Hand Wash

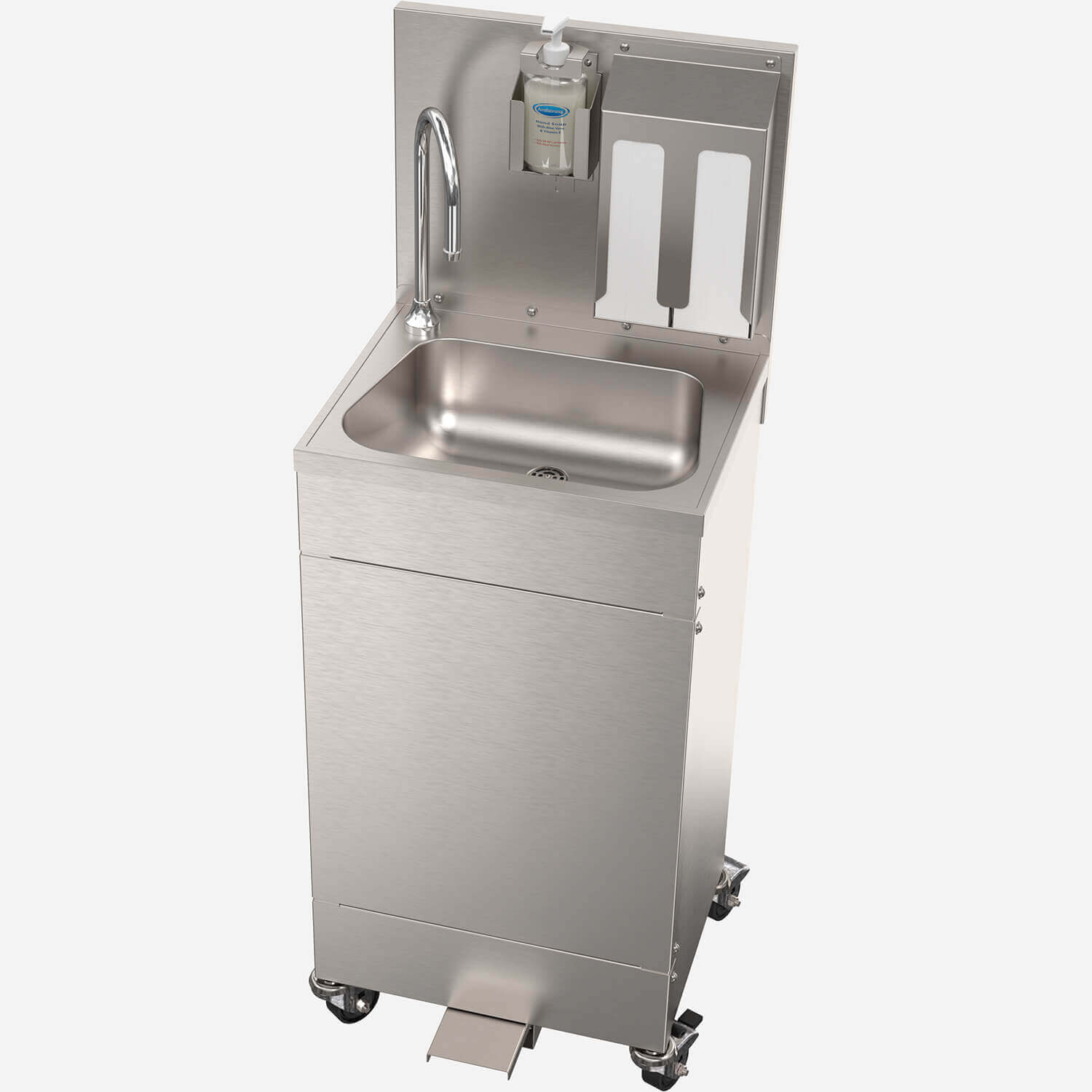

Accessory: Backsplash with Paper and Soap Holder
EPS1000-BS1
Accessory: Backsplash with Paper and Soap Holder
Accessory: Gooseneck Faucet for Foot Activated Lavatory
PS1000-F11
Accessory: Gooseneck Faucet for Foot Activated Lavatory

Miscellaneous

Model
Description
Downloads
No available options

Details

Product Features:
  • Durable stainless steel construction
  • Flat-packed for easy storage, shipment, and assembly
  • Trapezoidal bowl (17-1/2"L x 11-3/4"W x 5-1/2"D)
  • Two onboard 6.5-gallon (24.6 liter) tanks for fresh water and waste
  • Foot pump for hands-free operation (faucet sold separately)

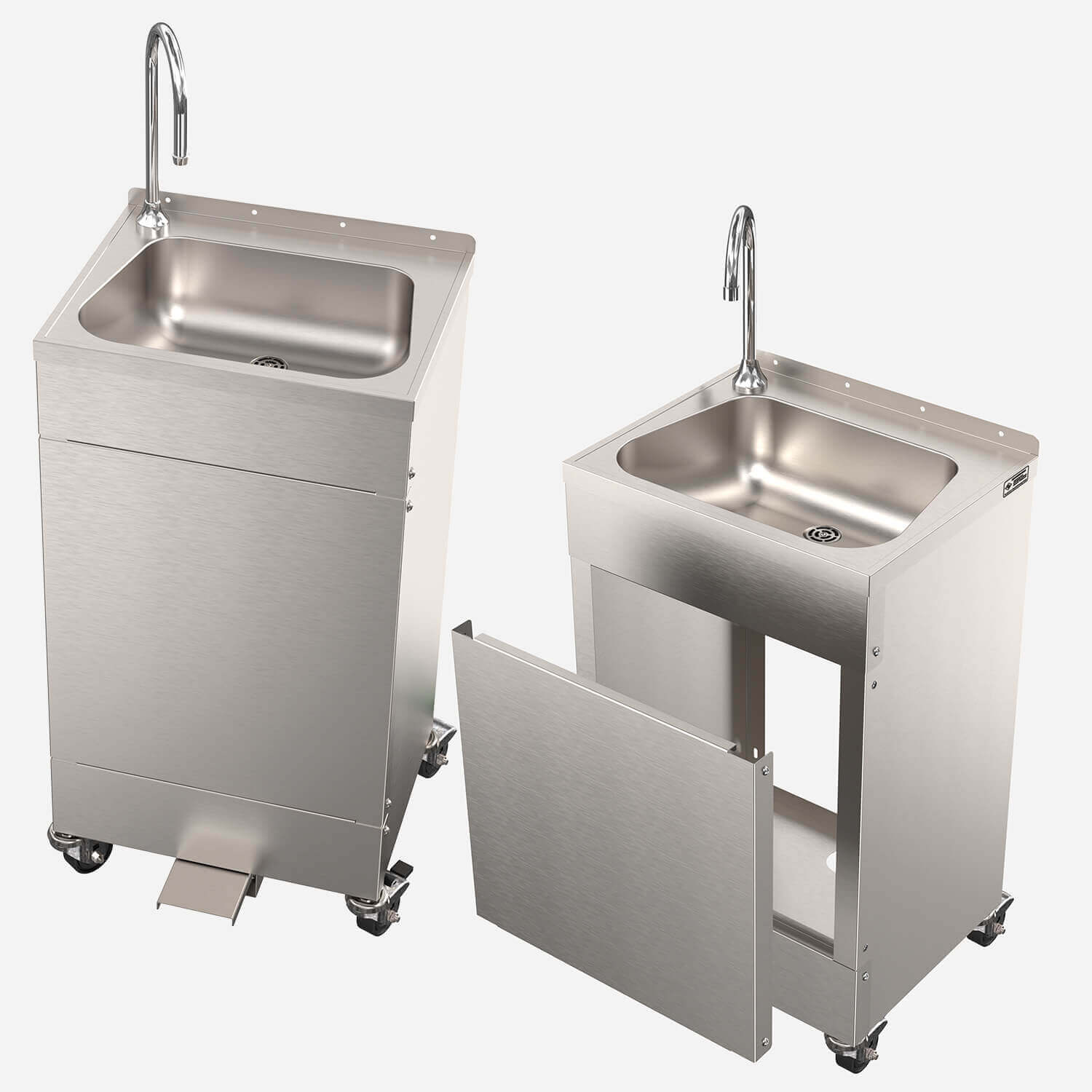

  • Three-sided shroud covering sides and front; open back for easy access
  • Swivel casters for smooth transit—roll it where you need it!

Product Variations
