Secur-Care® Ligature-Resistant, Stainless Steel Security Shower with T/P Mixing Valve
Learn More on Ligature-Resistant Fixtures

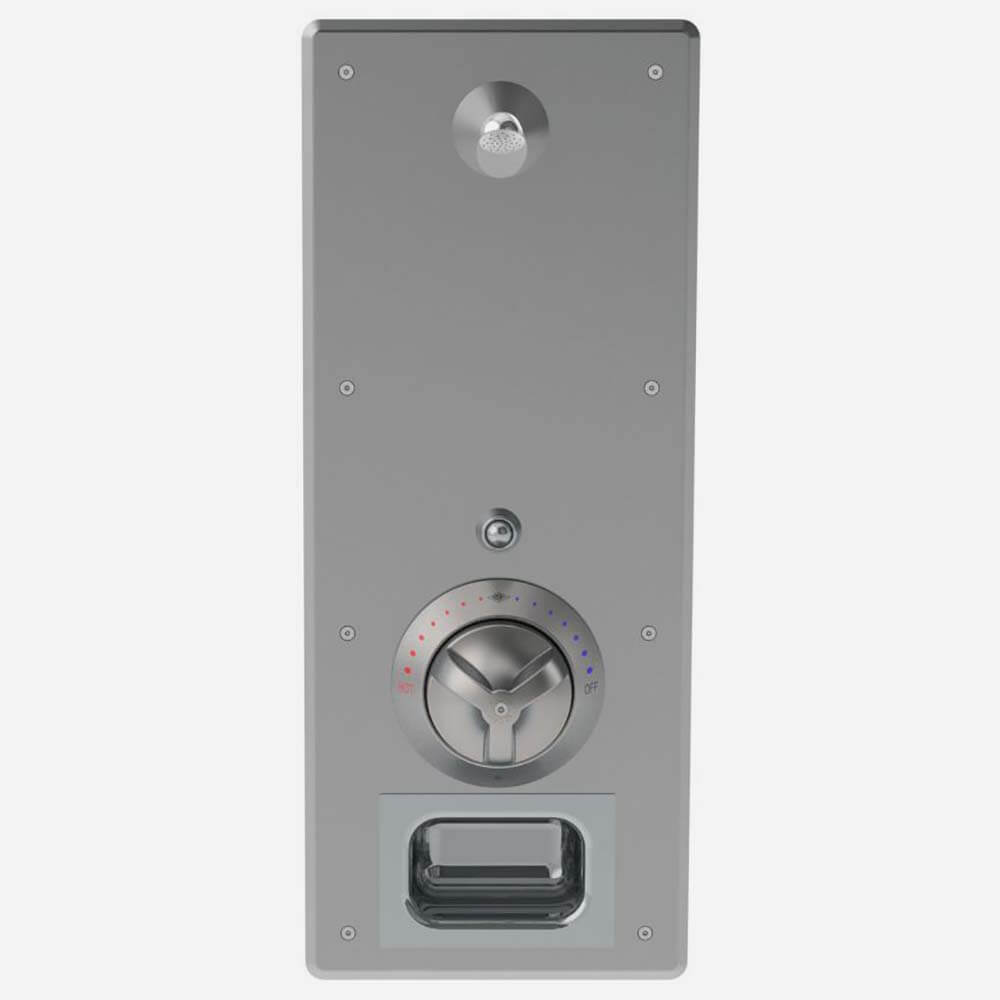

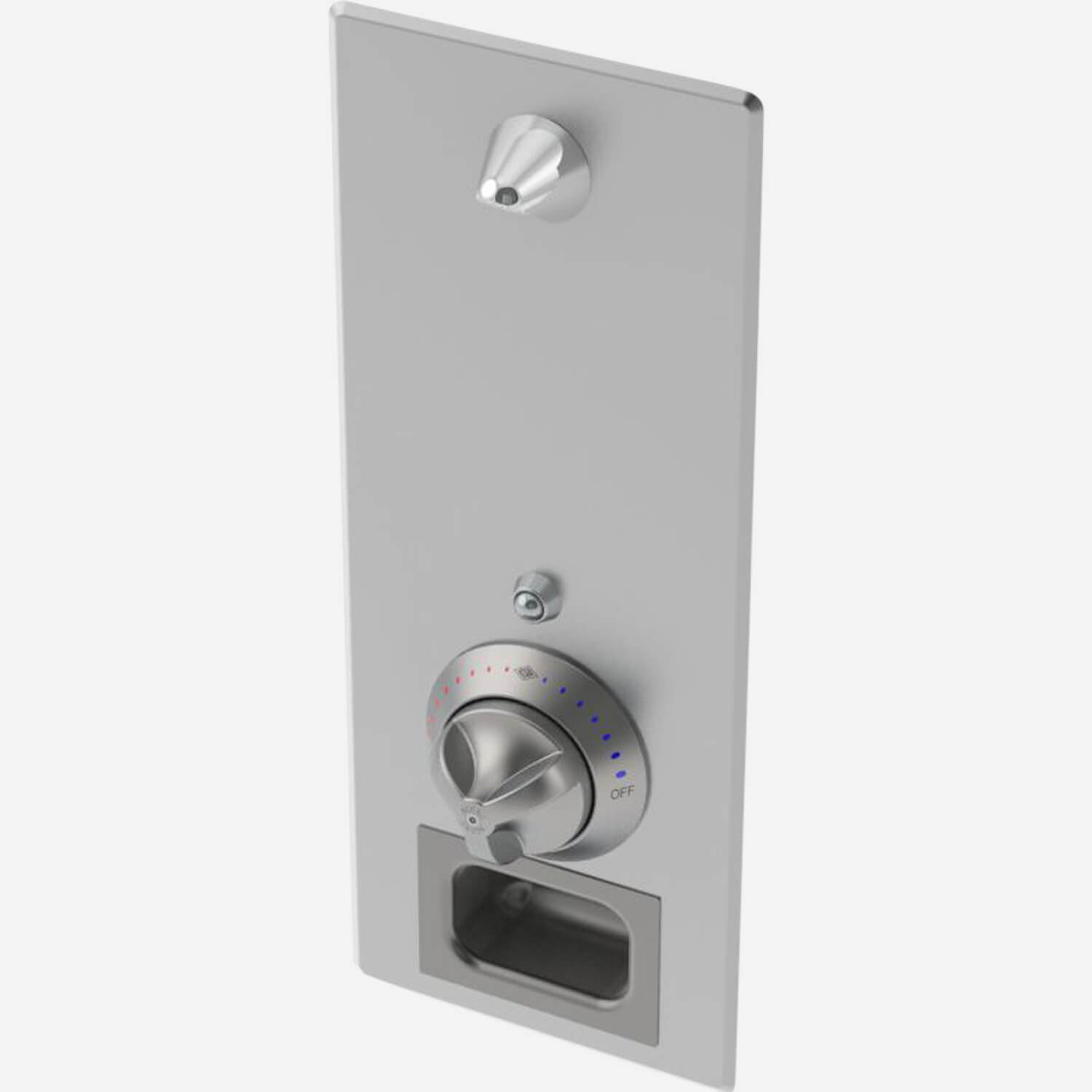

Conical showerhead and provided valve contribute to the ligature-resistant features of this shower. These showerheads and valves are mounted on a 25" (635 mm) high, rear-mounted panel.

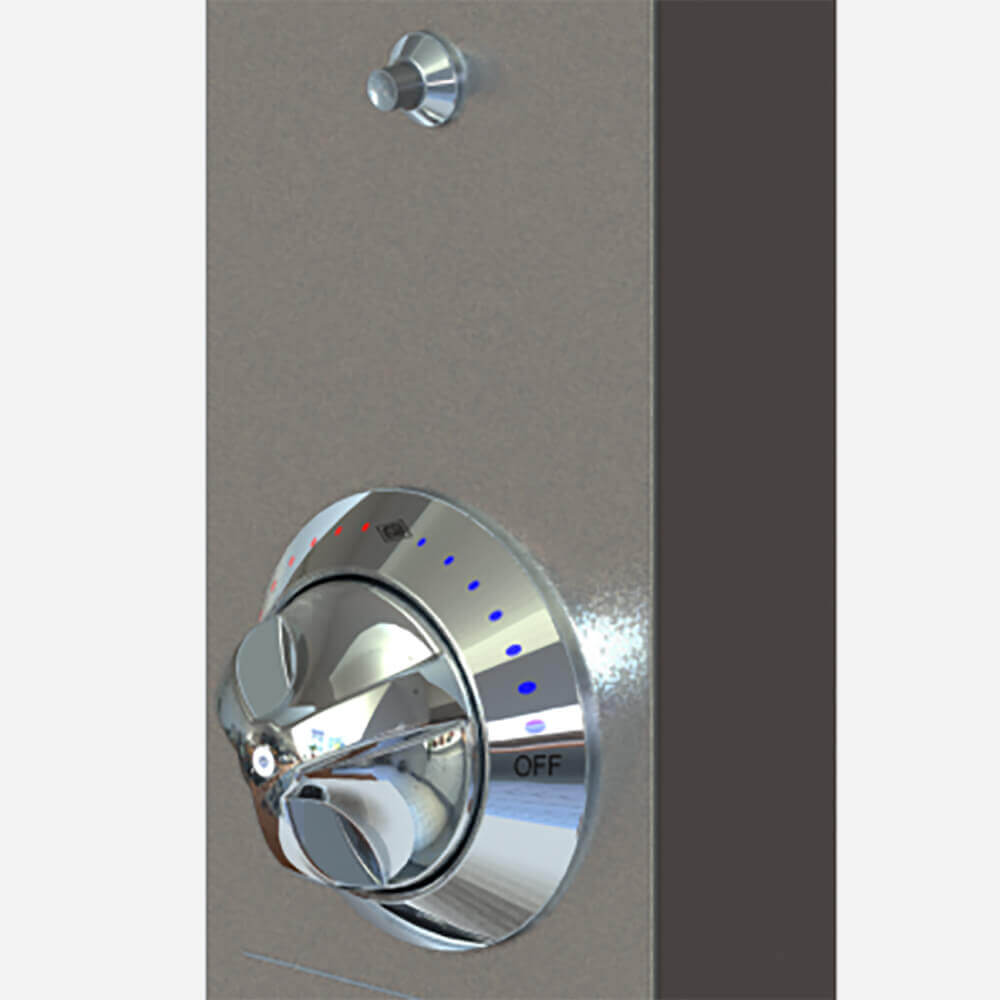

Model LR1748 provides an patented ASSE 1016 compliant temperature-pressure balancing mixing valve. It features a ligature-resistant tri-lever handle. A metering valve of variant types are available on the riser.
The back of the shower is provided with anchor tappings. Optional Wall Sleeve or Metal Template is recommended for all installations for required wall openings. The fixture is fabricated from 14 gauge, type 304 stainless steel with a satin finish.
The shower is designed to meet the needs for ligature resistance, ADA, and the rigorous demands of security facilities.
Disclaimers: This product is designed to decrease the probability that it may be utilized as an apparatus for ligature. It is not a replacement for professionals who are trained in the proper evaluation, management, and supervision of persons at risk of suicide. Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Ligature Resistant Flush-Mounted Stainless Steel Security Shower with T/P Mixing Valve | 1 MB | ||
| | Ligature Resistant Flush-Mounted Stainless Steel Security Shower with T/P Mixing Valve | 120 KB | ||
 | | Ligature Resistant ADA Compliant Flush-Mounted Stainless Steel Security Shower with T/P Mixing Valve, Dual Showerhead | 2 MB | ||
| | Ligature Resistant ADA Compliant Flush-Mounted Stainless Steel Security Shower with T/P Mixing Valve, Dual Showerhead | 259 KB | ||
| | Secur-Care® Ligature-Resistant Brochure (pdf) | 3 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Secur-Care® Ligature-Resistant Flyer (pdf) | 458 KB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | Commercial Showers Brochure (pdf) | 2 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 134 KB |
Specifications
| Brand | Acorn ConTrols® Inside, Secur-Care® |
| Fixture Width | 10" |
| Material | 14-Gauge Stainless Steel |
| Mounting | Flush Mounted, Rear-Chase Mounted |
| Product Type | Shower |
| Product Features | Conical Showerhead(s), Ligature-Resistant Design |
| Compliance | ASSE 1016, Federal Public Law 111-380, Ligature-Resistant |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SW | Accessory: Wall Sleeve |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | LRD | Option: Less Recessed Soap Dish | ||
 | MT | Option: Metal Template | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MV | Option: Metering Air-Control® Valve in Shower Riser | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | TF | Option: Transformer for AC Power Valve |
Details
Product Variations
Image | Model ID | Description |
|---|---|---|

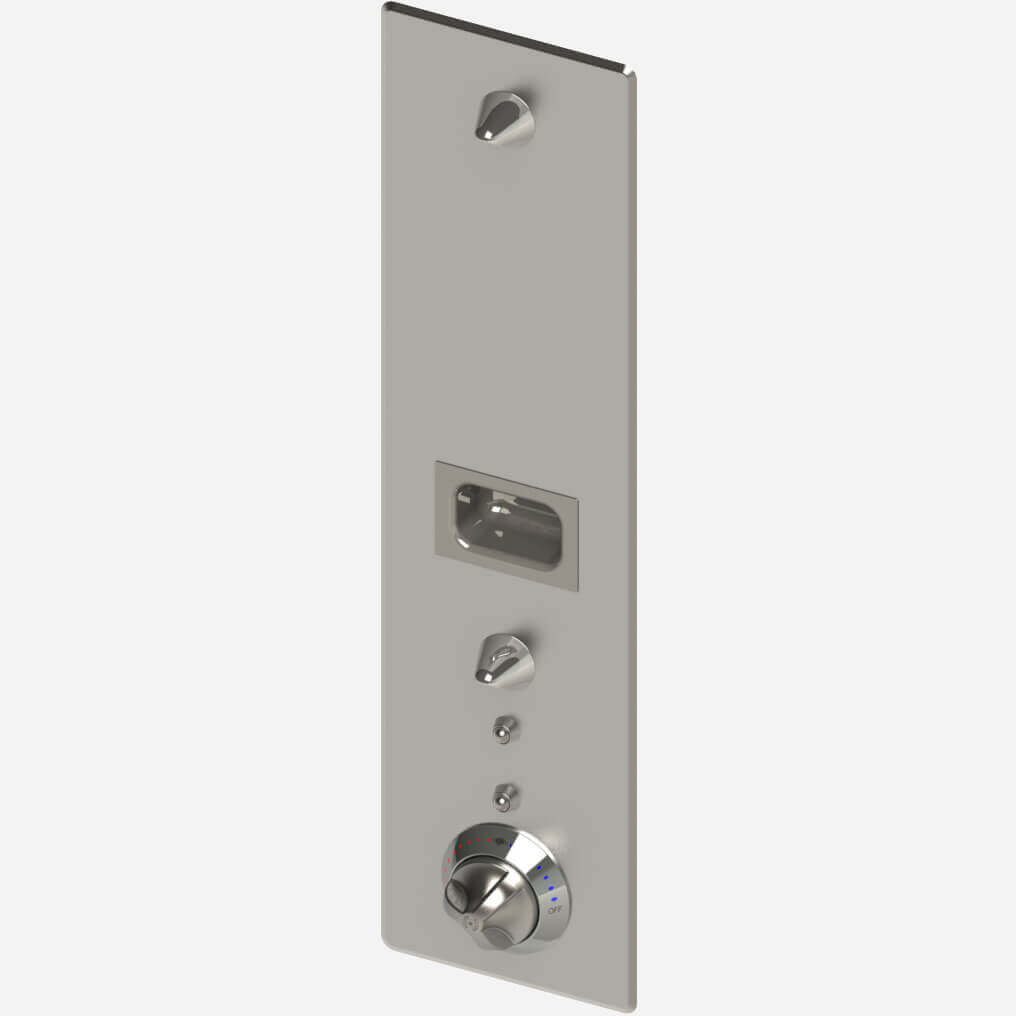

 | LR1748ADA Series | Secur-Care® Ligature-Resistant, ADA Compliant Stainless Steel Security Shower with T/P Mixing Valve-, Dual Showerhead |
 | LR1748FA Series | Secur-Care® Front Access Ligature-Resistant, Stainless Steel Security Shower with T/P Mixing Valve |
