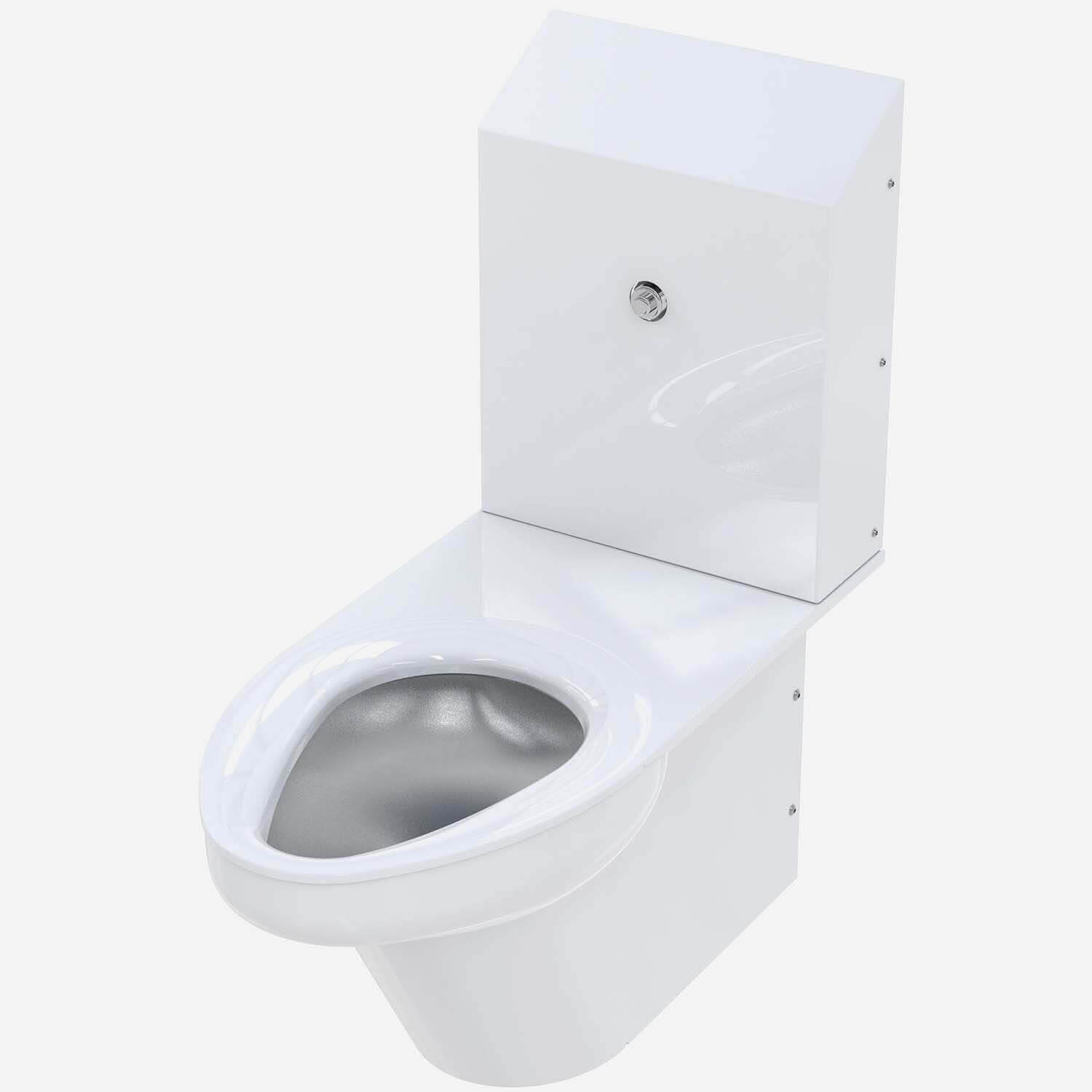

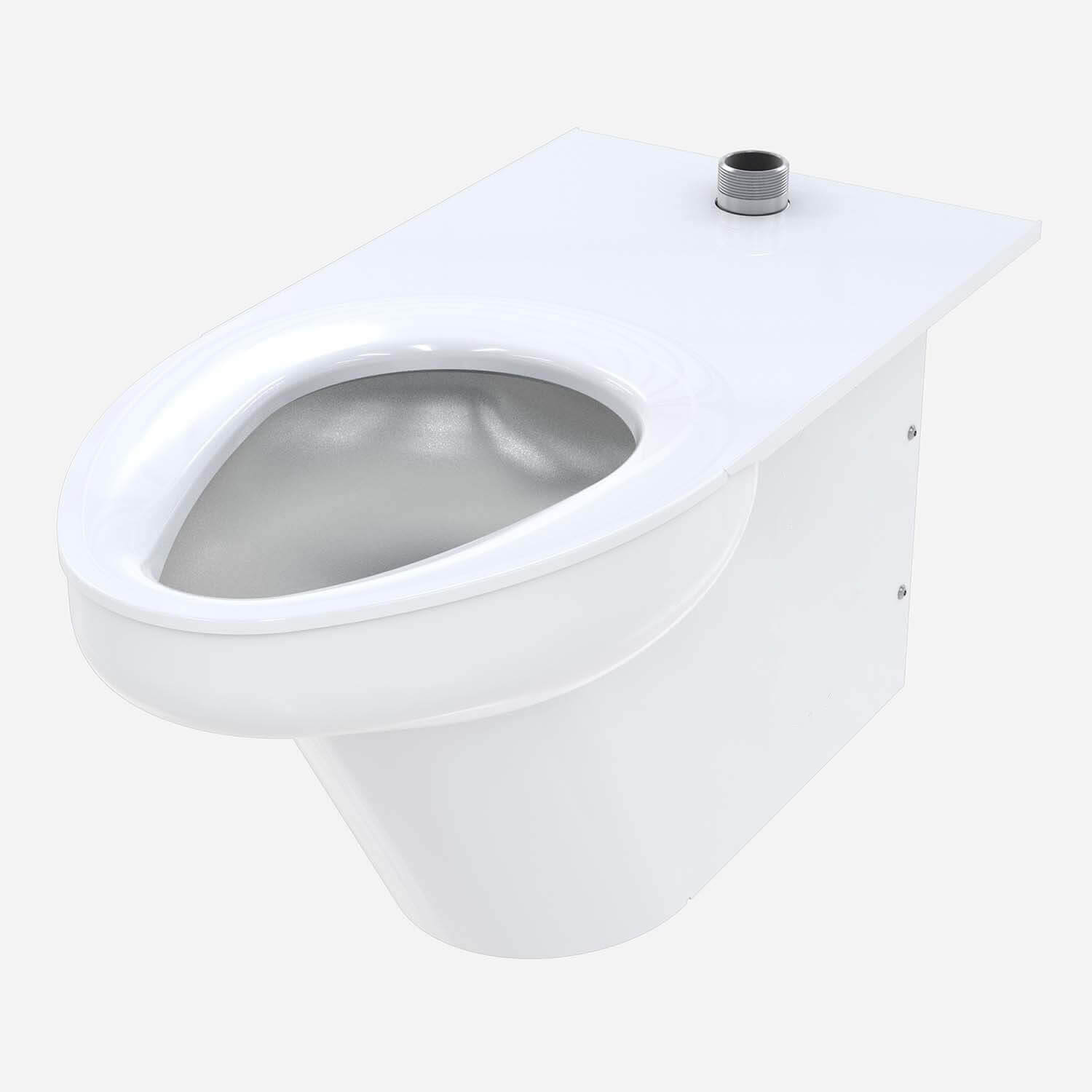

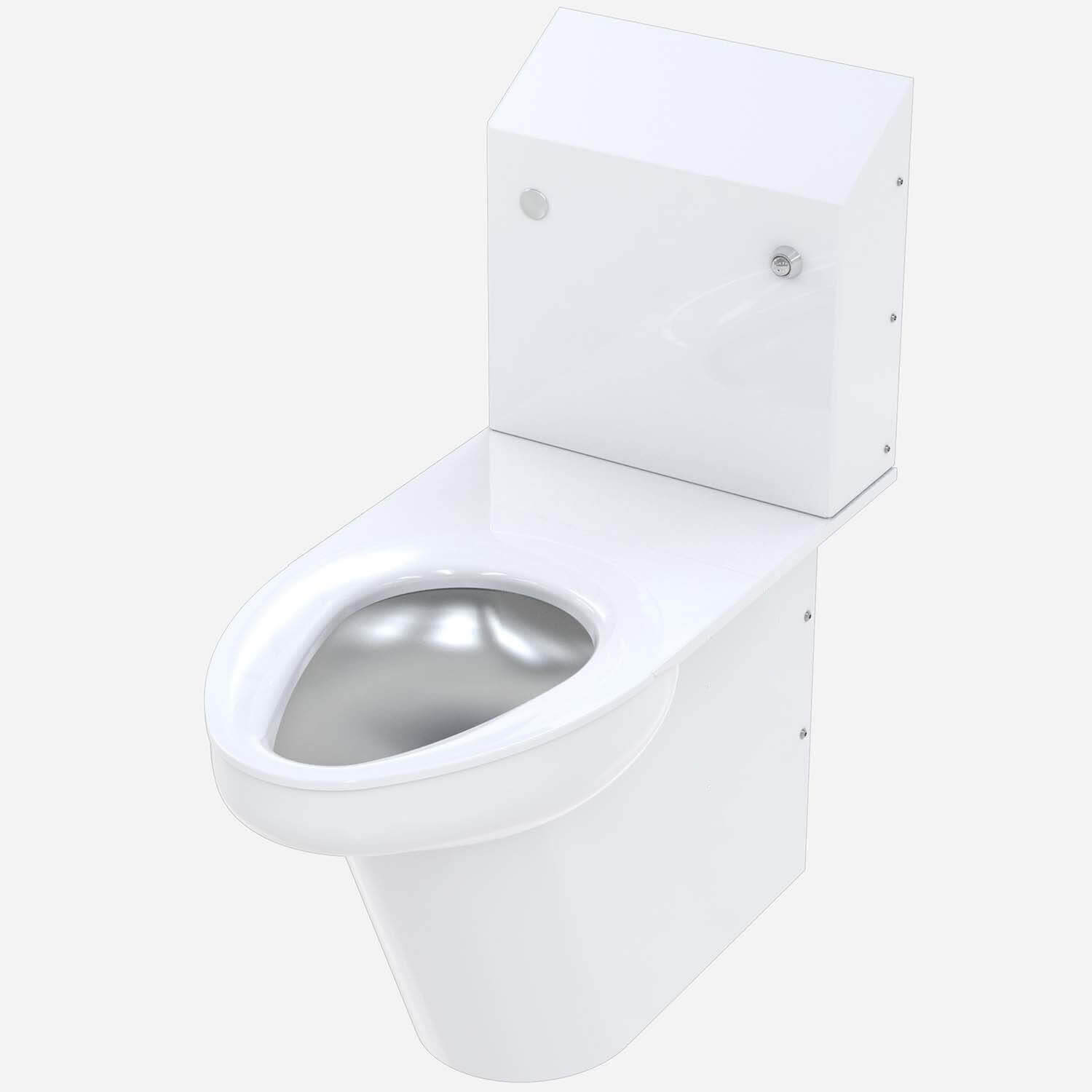

Secur-Care® Ligature-Resistant, Rear Mount, Siphon Jet, Stainless Steel Toilet - Wall Waste

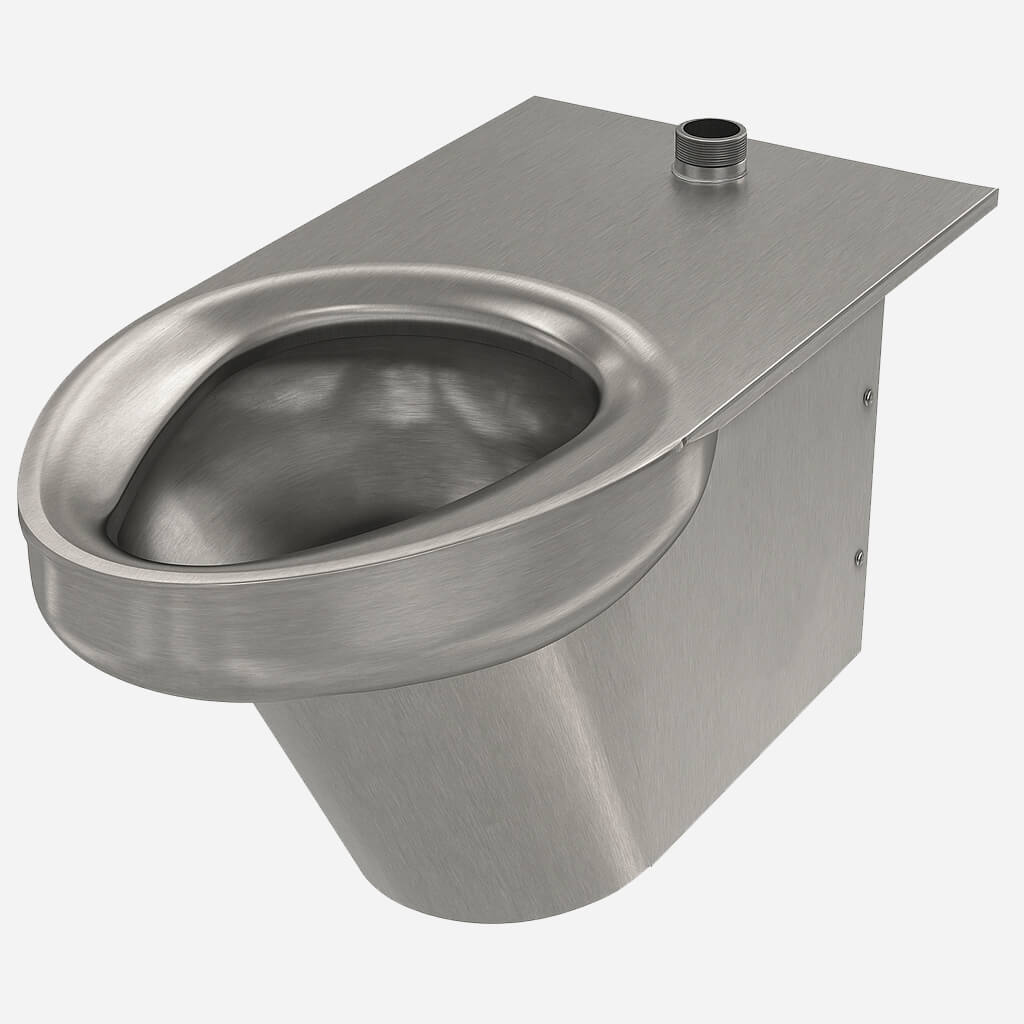

Ligature-Resistant Toilet contoured ligature resistant Housing is fabricated from 16 gauge type 304 stainless steel and polished to a satin finish. The inside of the Toilet Bowl also has a satin finish. Engineered to reduce possible risk of the fixture being used as a ligature device. Mounting is available for rear installations.

Toilet is a Siphon Jet type with ligature resistant elongated Bowl manufactured to ASME A112.19.3 and CSA B45.4 requirements and will flush with a minimum of 25 PSI flow pressure. P-Trap has a minimum 3-1/2" (89 mm) seal, will and pass a 2-1/8" (54 mm) ball.

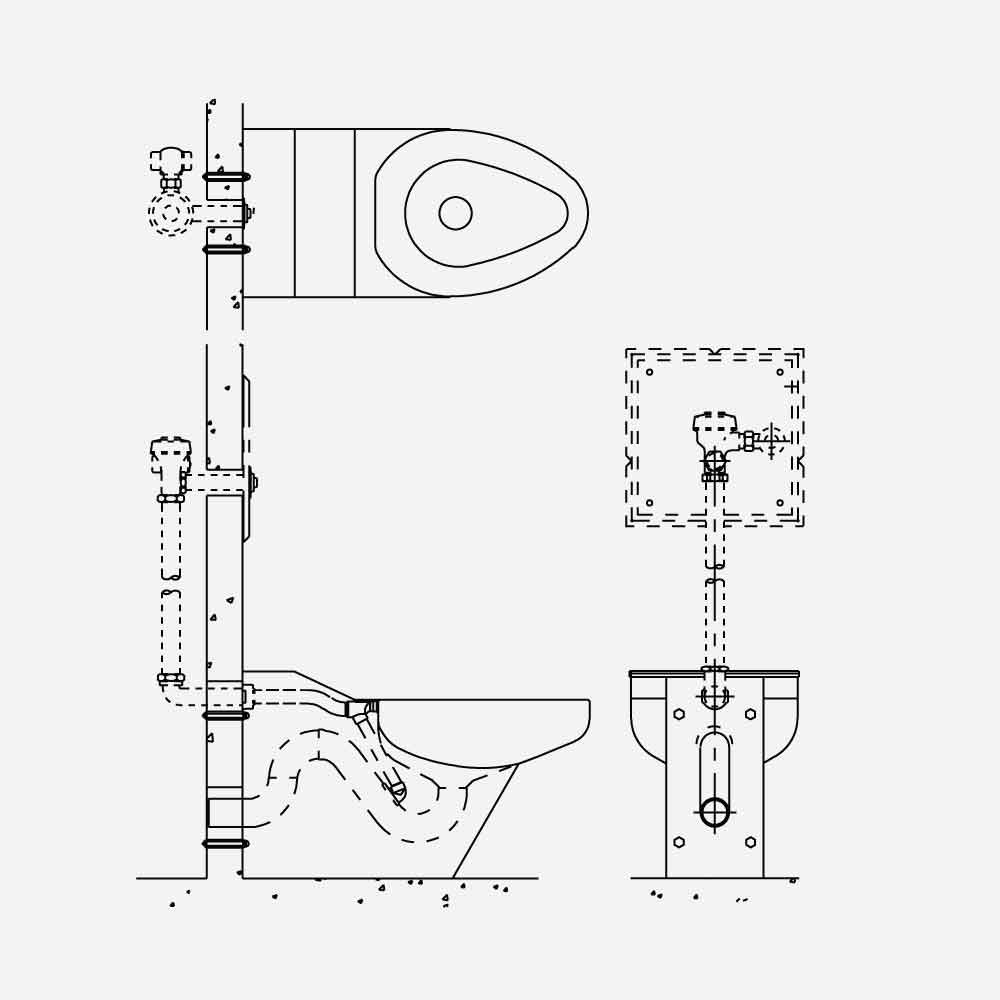

Flush Valve supply is available for exposed or concealed Flush Valve styles with 1-1/2" NPT connection. Exposed Flush Valves require ligature resistant Flush Valve Cover.

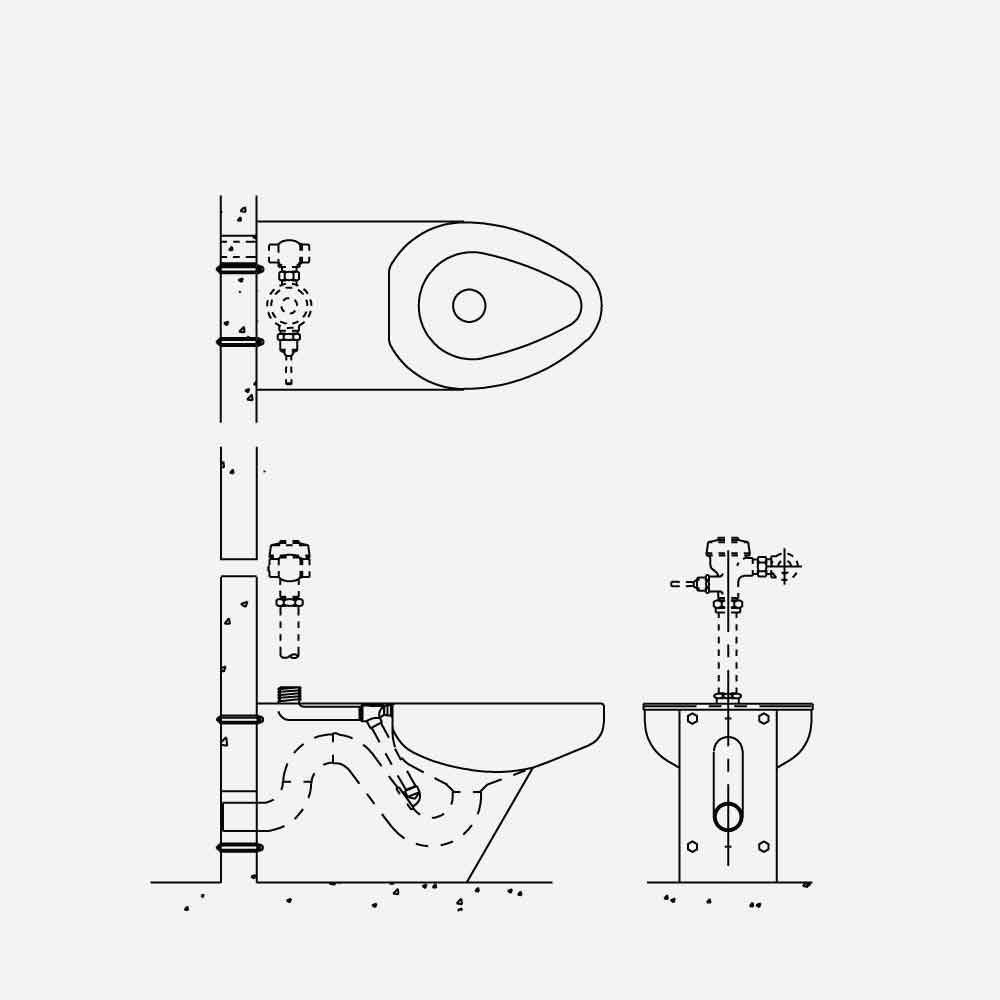

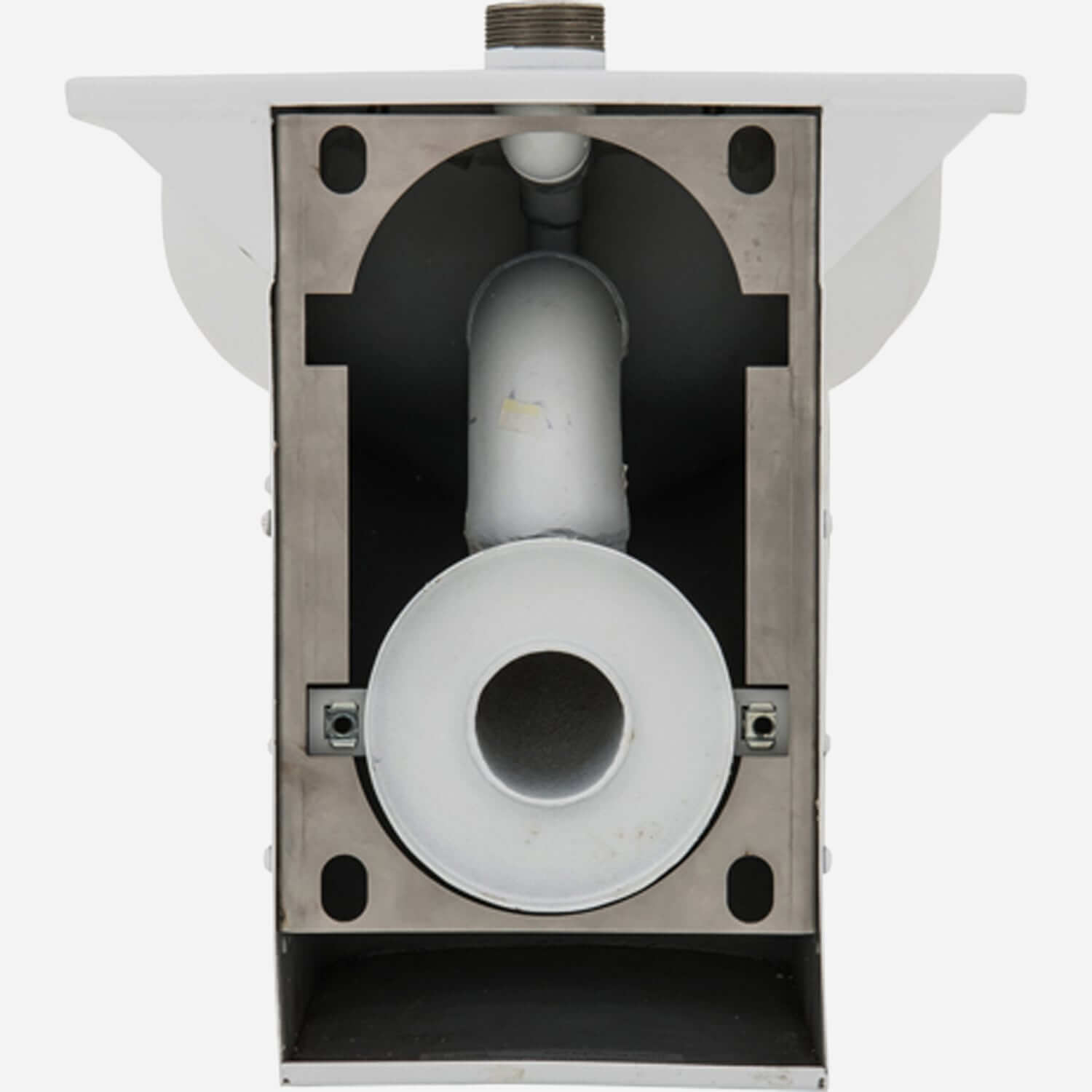

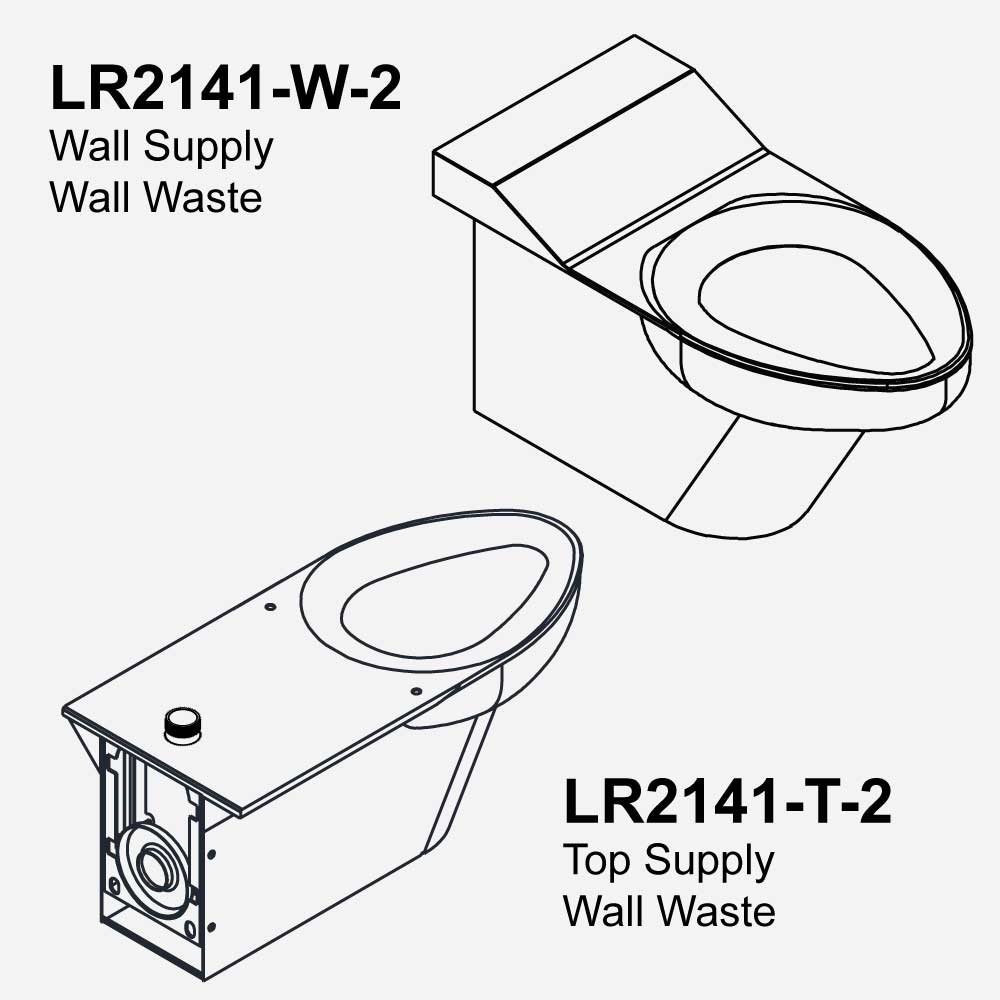

Rear Mount units include integral 1/2" UNC Anchor Tappings and Mounting Hardware. Unit requires an accessible pipe chase for installation. <strong>Wall Waste Outlet</strong> connection is a 2-3/8" (60 mm) OD stainless steel plain end.

Product Function:

Providing a Ligature Resistant rear mount stainless steel Siphon Jet type toilet. Toilet is only available as an on-floor model (off-floor toilets are NOT Ligature Resistant). Options shown are limited to those offering ligature-resistant characteristics.

The toilet is design to meet the needs for ligature resistance, water conservation and ADA compliancy (if ADA option requested), and the rigorous demands of security facilities.

WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.

Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
