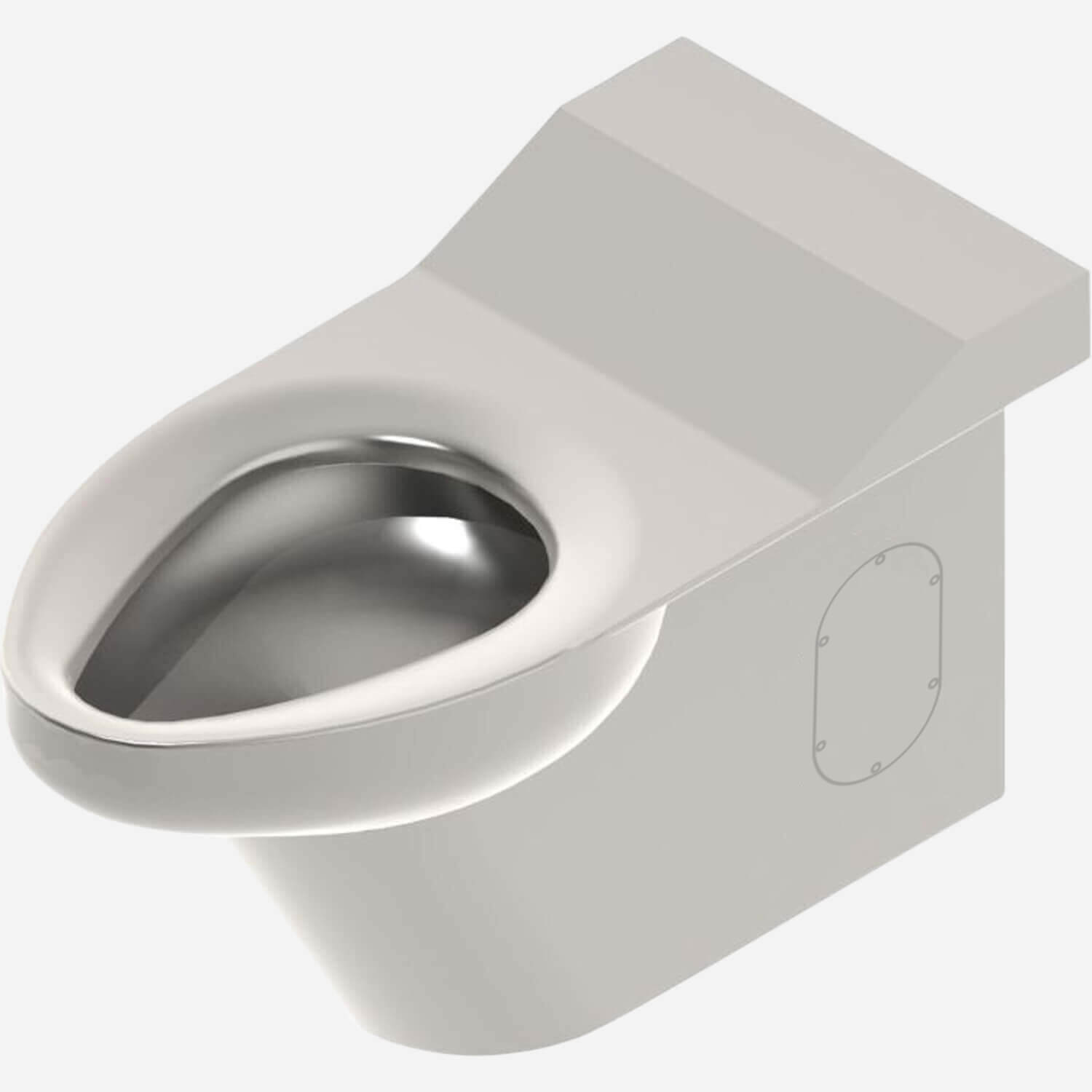

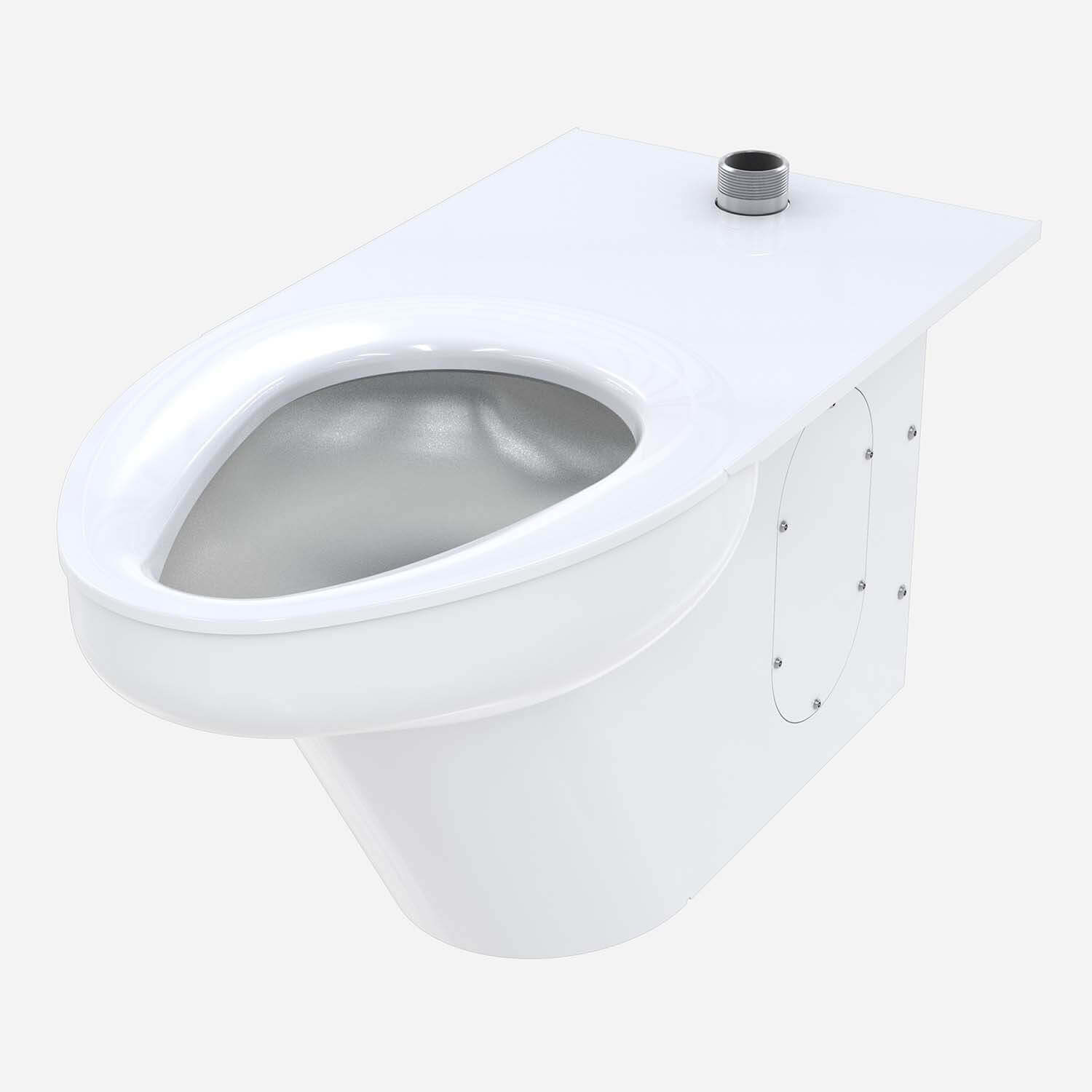

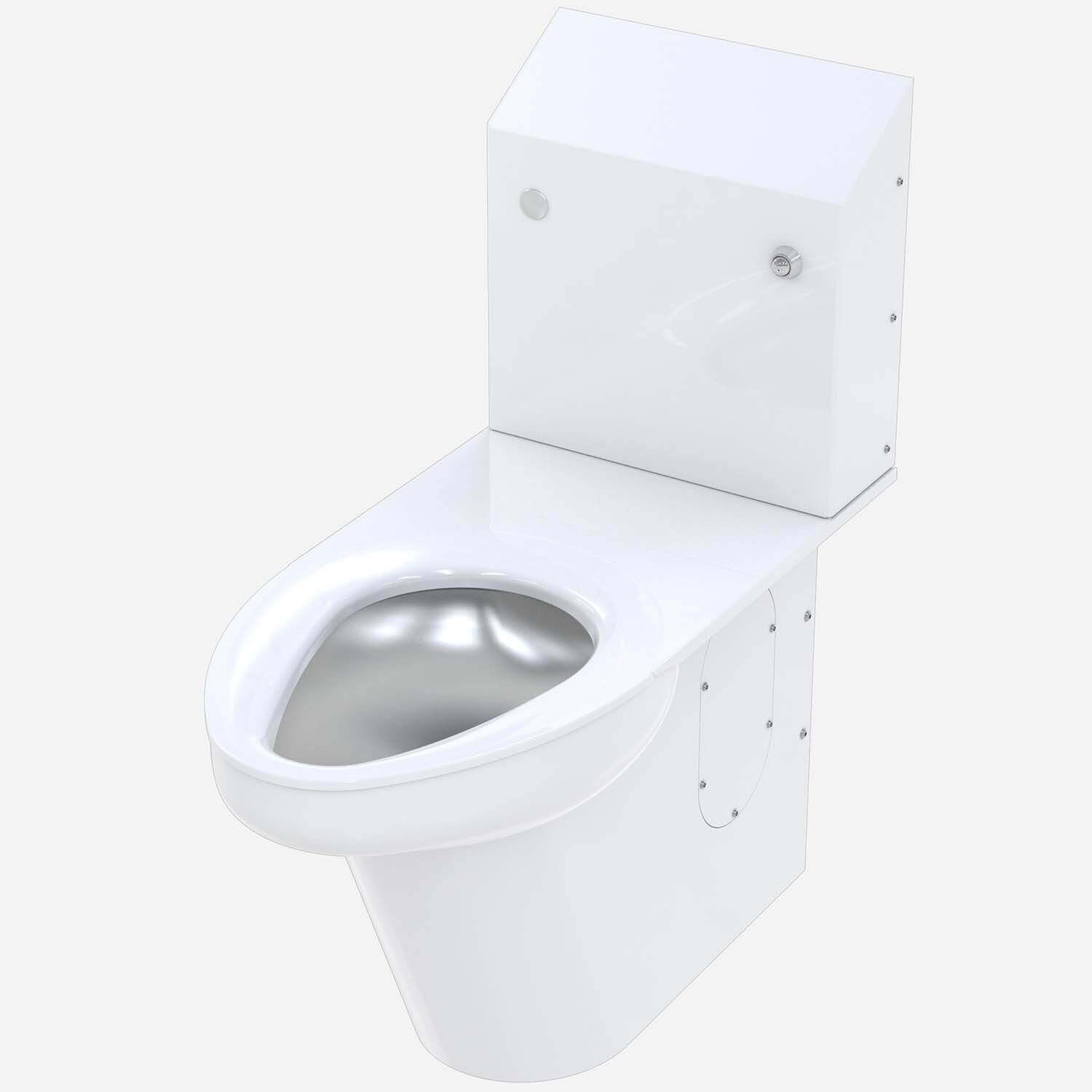

Secur-Care® Ligature-Resistant, Rear Mount, Siphon Jet, Stainless Steel Toilet - Floor Waste

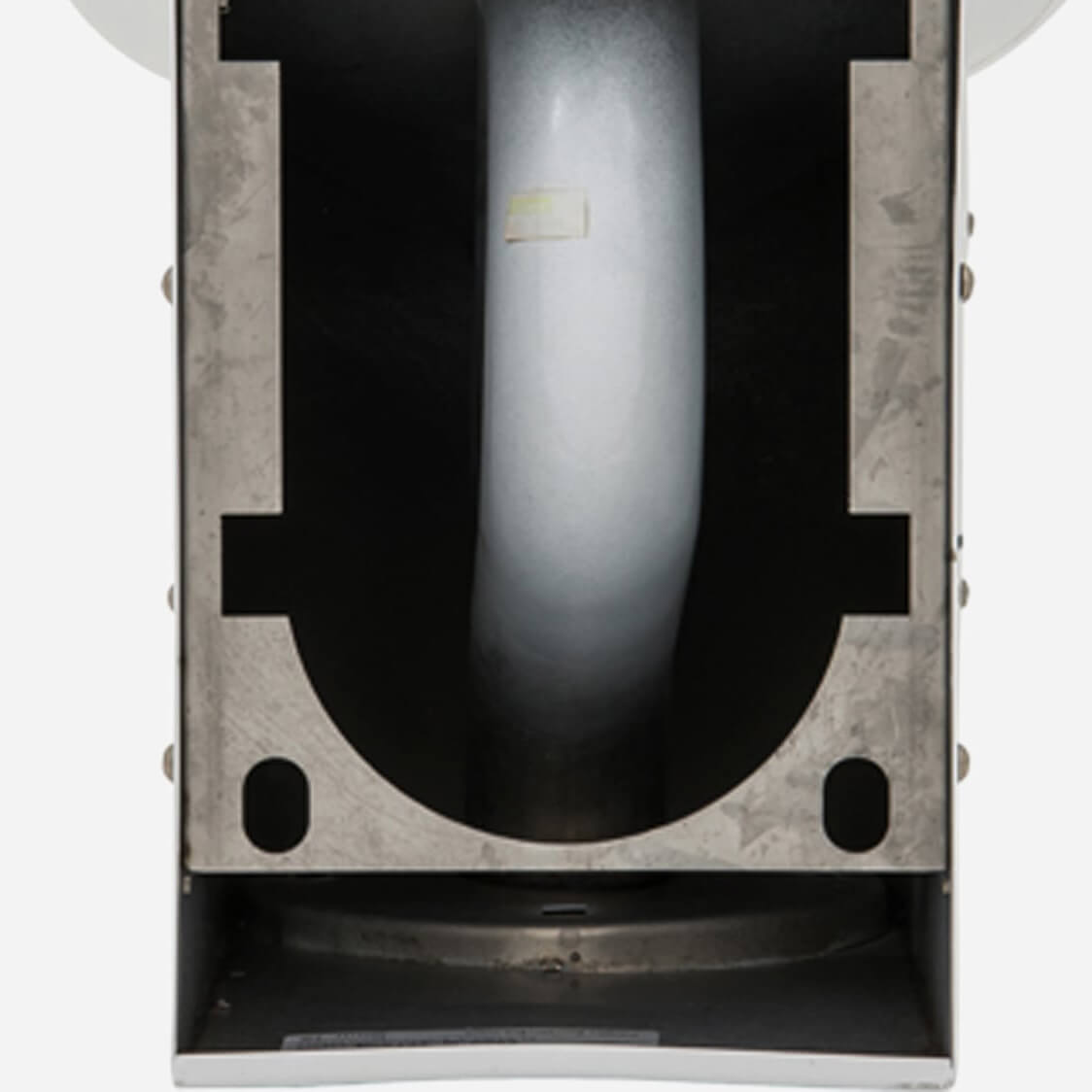

This ligature resistant toilet with contoured ligature-resistant housing is fabricated from 16 gauge type 304 stainless steel and polished to a satin finish. The inside of the toilet bowl also has a satin finish. Engineered to reduce the possible risk of the fixture being used as a ligature device. Mounting is intended for rear installations. Housing includes an access panel on each side for the installation of the fixture.

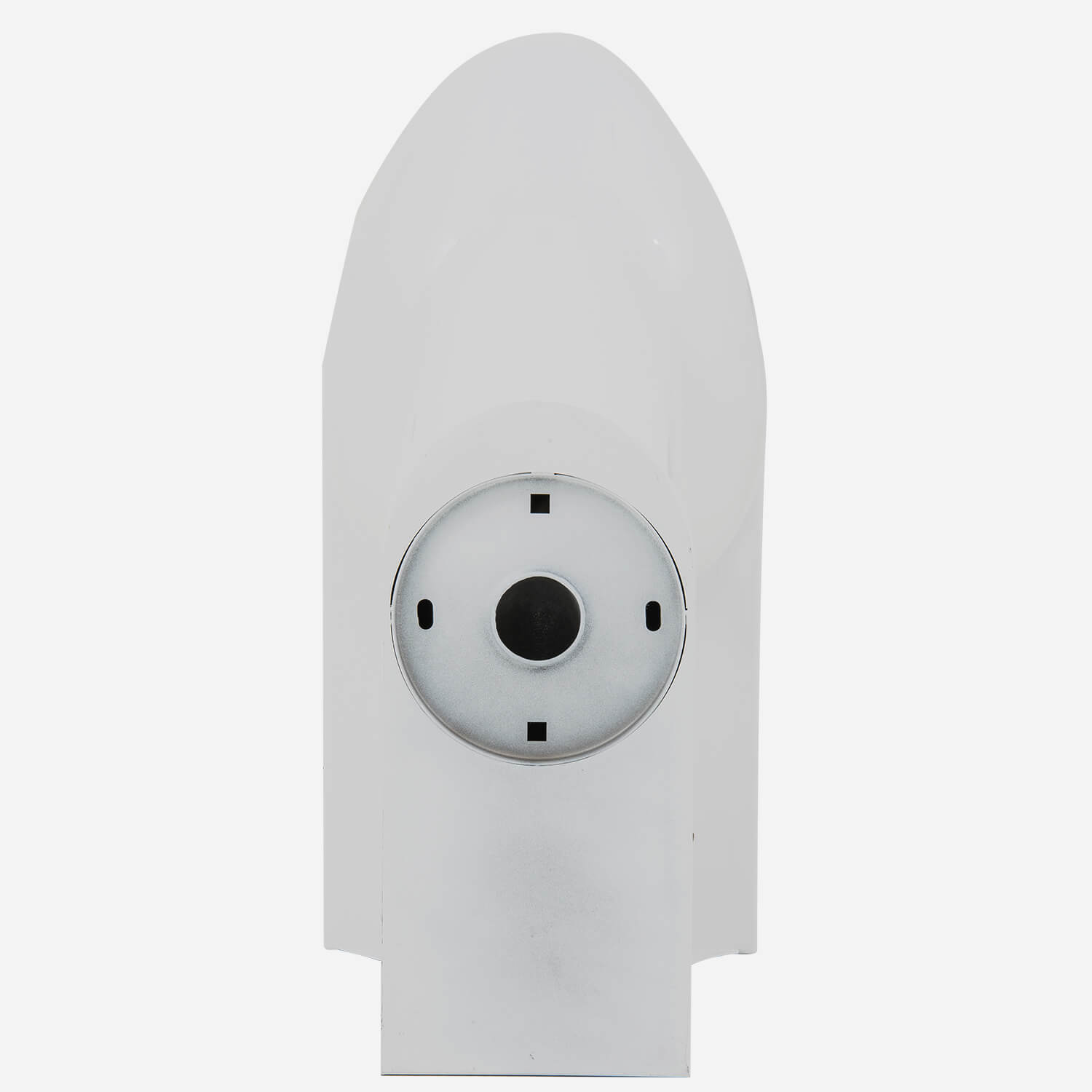

The toilet is a Siphon Jet Floor Outlet type with ligature resistant elongated bowl manufactured to ASME A112.19.3 and CSA B45.4 requirements and will flush with a minimum of 25 PSI flow pressure. Trap has a minimum 3-1/2" (89 mm) seal, will pass a 2-1/8" (54 mm) ball and is fully enclosed. Floor Waste Outlet connection is a 7-1/2" (191 mm) diameter recessed gasket flange.

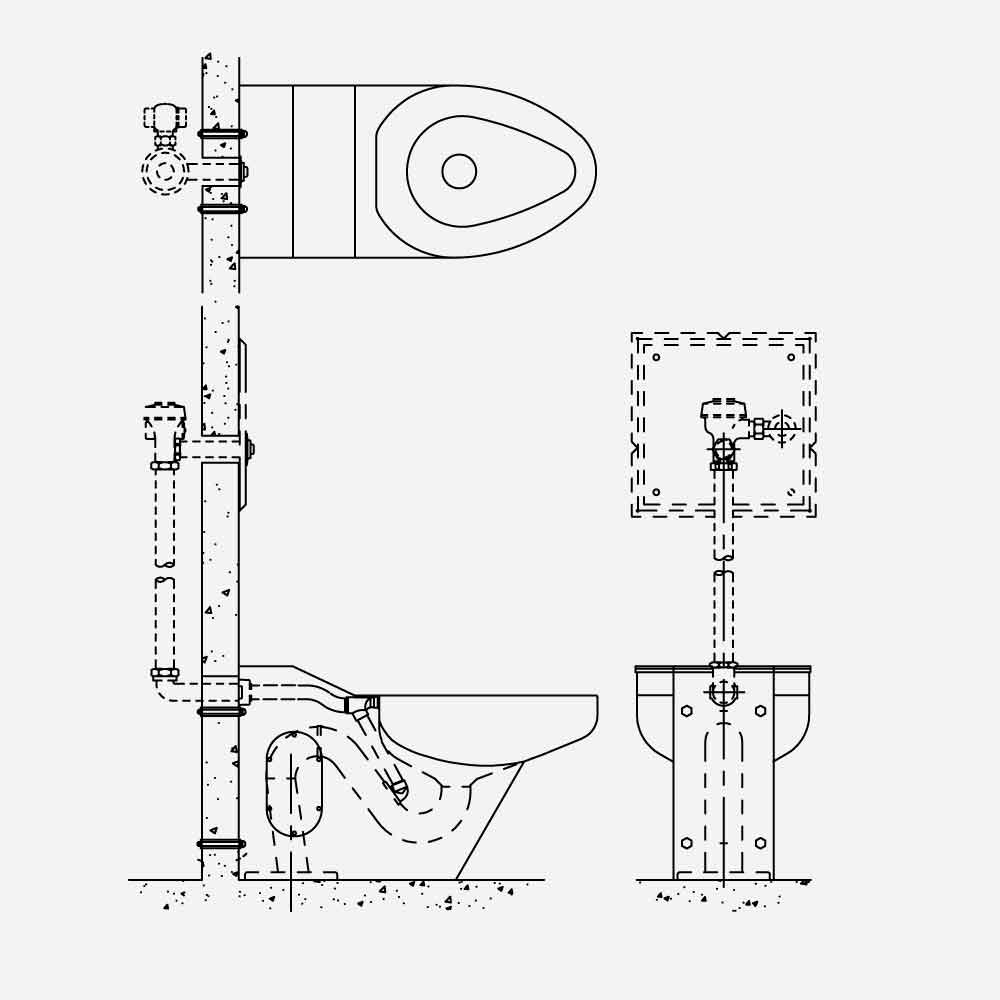

Flush Valve supply is available for exposed or concealed flush valve styles with 1-1/2" NPT connection.

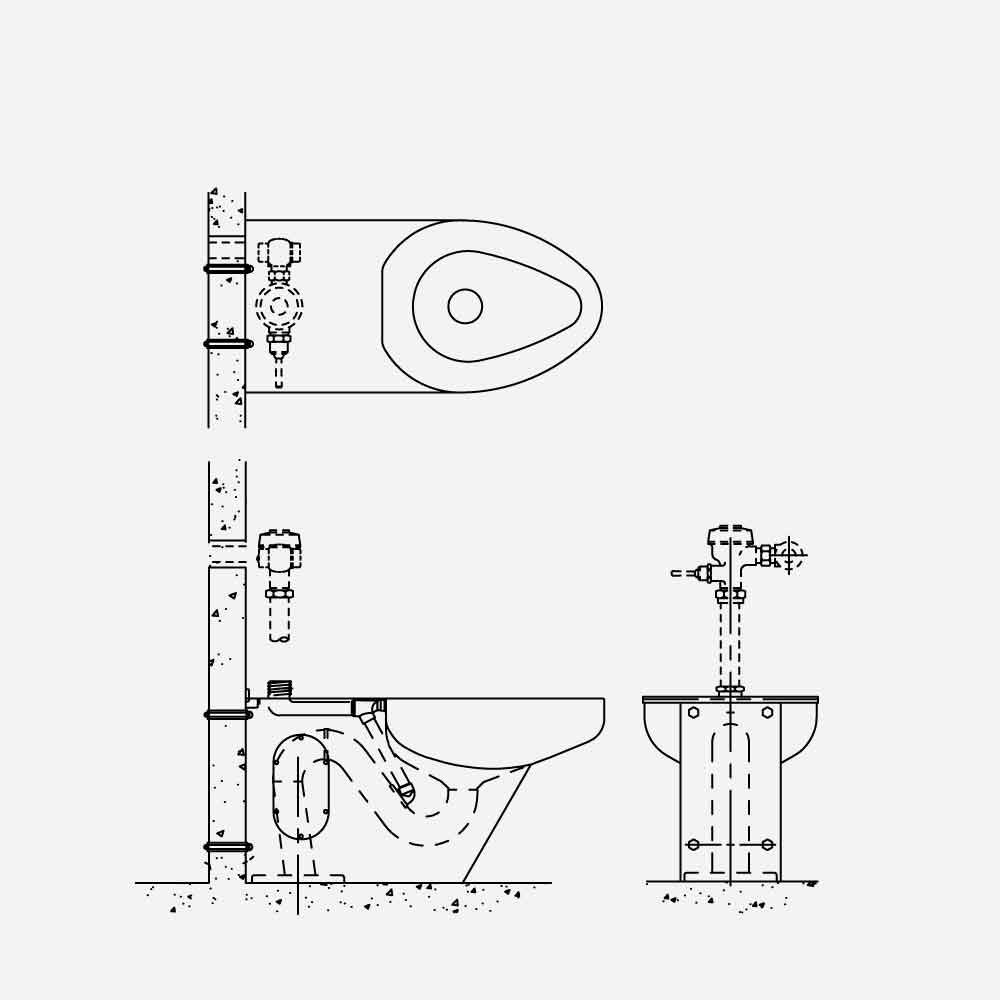

Rear Mount units include integral 1/2" UNC anchor tapping and mounting hardware. Unit requires an accessible pipe chase for installation.

The toilet is design to meet the needs for ligature resistance, water conservation and ADA compliancy (if ADA option requested), and the rigorous demands of security facilities.

WaterSense® recent advancements have allowed toilets to use 1.28 gallons (4.85 liters) per flush or less while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.

Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bars) and the interpretations of the local code authority.
