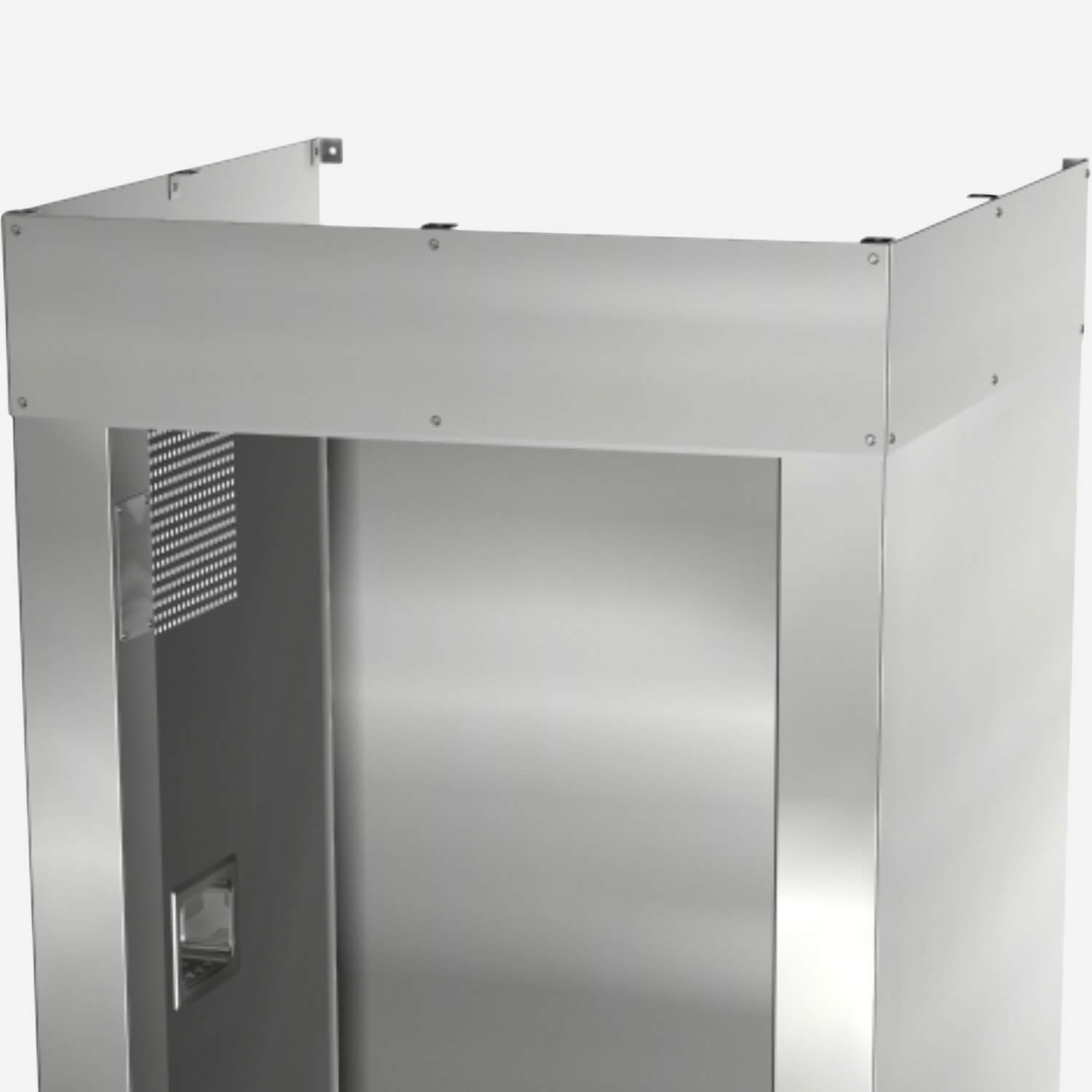

Option: Horizontal Angled Closure - Top Single Wall

By running along the front face and both the left and right sides of the shower cabinet, this closure conceals gaps between the top of the shower cabinet and the ceiling when the cabinet is mounted against a single wall. Attachments for ceiling, wall, and cabinet are provided.

Specify the vertical gap dimension between the Shower Cabinet and the wall or ceiling.

Closures are provided with hole-punching and should be used as a template for marking screw locations on the cabinet for field drilling and tapping (required by Installer). Tamper-Resistant #10-32 x 1/2" Stainless Steel Screws are provided where closures attach to the cabinet or a bracket. Tamper- Resistant #1/4"-20 Stainless Steel Screws are provided where brackets attach to the wall or ceiling. The installer provides wall or ceiling anchors.

Depending on the configuration selected, this option is available on the following:
1730 | 30-Inch Cabinet Shower; 1730-KD | Knockdown Configuration
1732 | 32-Inch Cabinet Shower; 1732-KD | Knockdown Configuration
1736 | 36-Inch Cabinet Shower; 1736-KD | Knockdown Configuration
1736ADA-A | 36-Inch ADA Cabinet Shower
