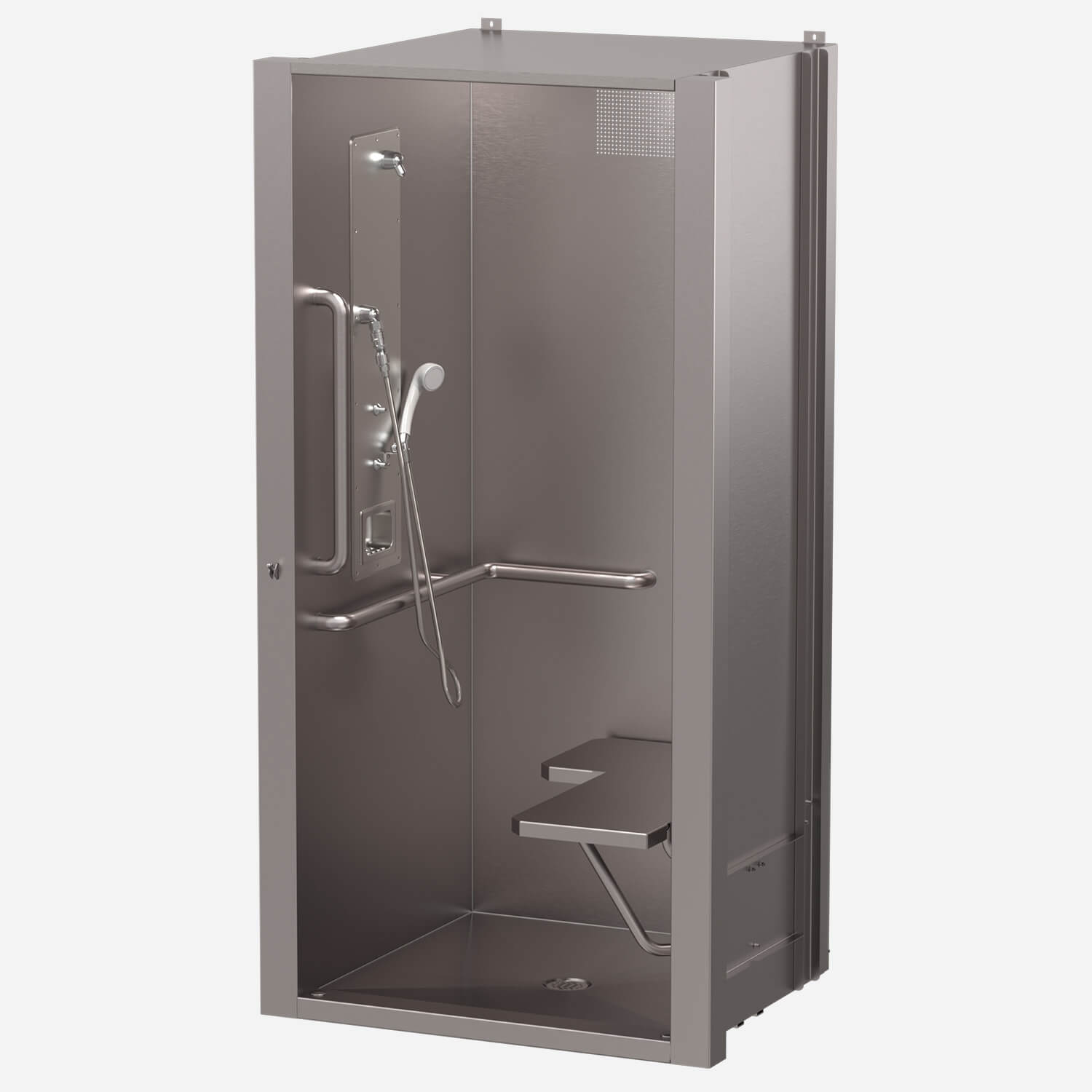

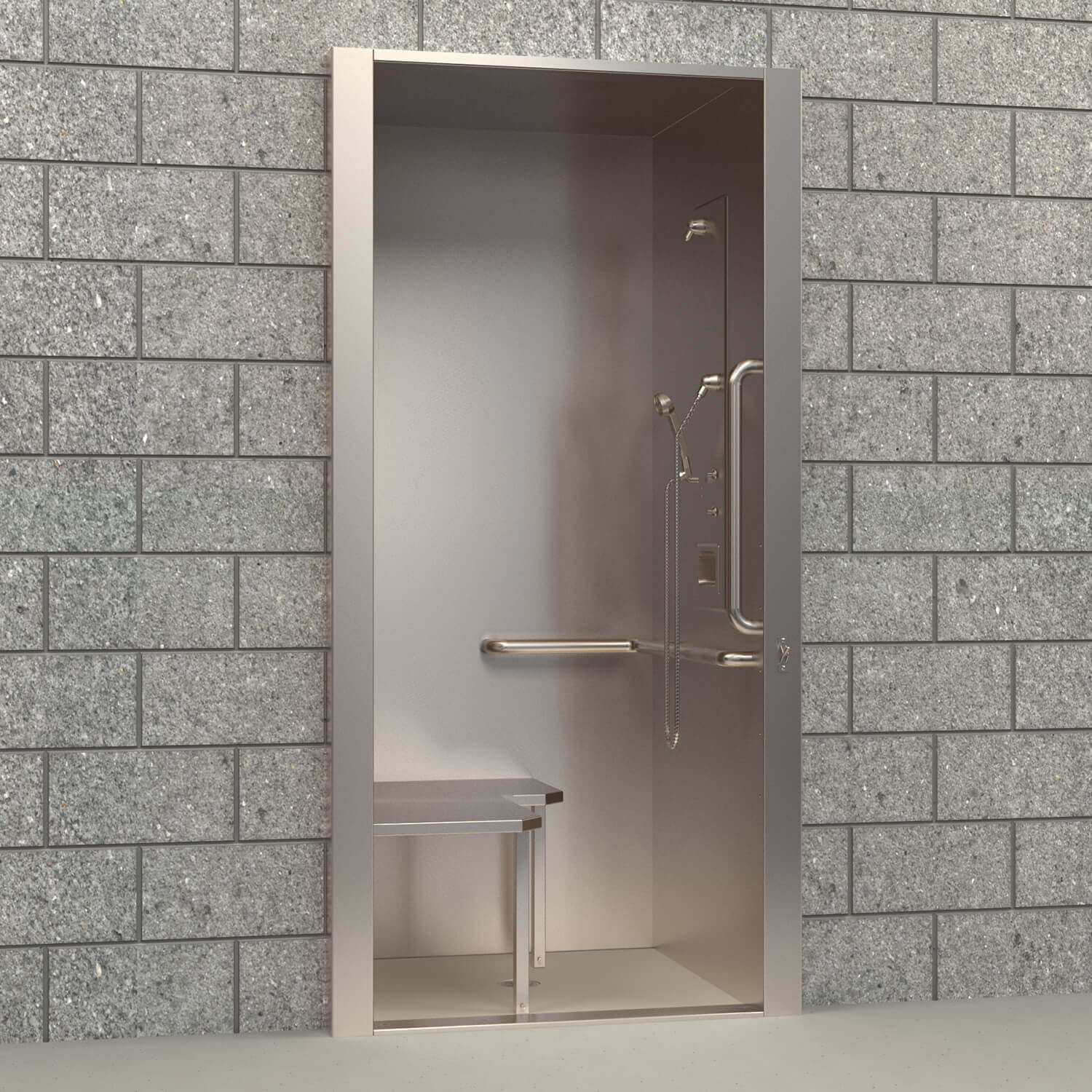

36" x 36" x 88" Height, ADA Stainless Steel Security Recessed Cabinet Shower
Acorn's ADA compliant Stainless Steel Security Shower Cabinet features internal dimensions of 36" (914 mm) width and 36" (914 mm) depth; the overall height is 88" (2235 mm) and overall width is 43.5" (1105 mm).
Regularly furnished items include an ADA compliant control valve, stainless steel recessed soap dish, tamperresistant fasteners, handheld shower, horizontal welded-in two wall grab bar, 24” vertical grab bar, integral stainless steel seat and auto-release towel hook welded on outside of door jamb.
Note: The product is not available for use in the State of California.
A popular tempering option is a ASSE 1016 compliant temperature/pressure balancing valve with a ADA ligature-resistant tri-lever control handle. A variation includes a metering valve working with the T/P valve.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 36" x 36" x 88" Height, ADA Stainless Steel Security Recessed Cabinet Shower | 475 KB | ||
| | 36" x 36" x 88" Height, ADA Stainless Steel Security Recessed Cabinet Shower for Rear Mount (Chase) Application | 764 KB | ||
 | | 36" x 36" x 88" Height, ADA Stainless Steel Security Recessed Cabinet Shower - Right Shower Location | 344 KB | ||
| | 36" x 36" x 88" Height, ADA Stainless Steel Security Recessed Cabinet Shower - Right Shower Location | 164 KB | ||
| | Enviro-Glaze Powdercoating Color Chart - Update Aug 2026 | 291 KB | ||
| | Commercial Showers Brochure (pdf) | 2 MB | ||
 | | Shower on Right Wall, Single Temperature Air-Control Valve | 481 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
| | Valves: Single Temp Air-Control™ Valve Body Assembly (-03) | 56 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 74 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 130 KB | ||
| | Trims: Mounting Hardware, Penal FixtureS | 96 KB | ||
| | Shower Heads: Flex Shower Head | 132 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 134 KB | ||
| | 36" x 36" x 88" Height, ADA Stainless Steel Security Recessed Cabinet Shower | 1 MB | ||
 | | 36" x 36" x 88" Height, ADA Stainless Steel Security Recessed Cabinet Shower | 136 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Penal-Ware® |
| Material | Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Vandal Resistant | High |
| Institutional Applications | Correctional |
| Park and Recreation Applications | Yes |
| Accessibility | ADA Compliant |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SW | Accessory: Wall Sleeve |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control® Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 8 (security shower valve) | Option: Temperature/Pressure Mixing Valve for Security Shower | ||
 | 8MV | Option: Temperature Pressure Balancing Valve with Metering Valve in Riser | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||

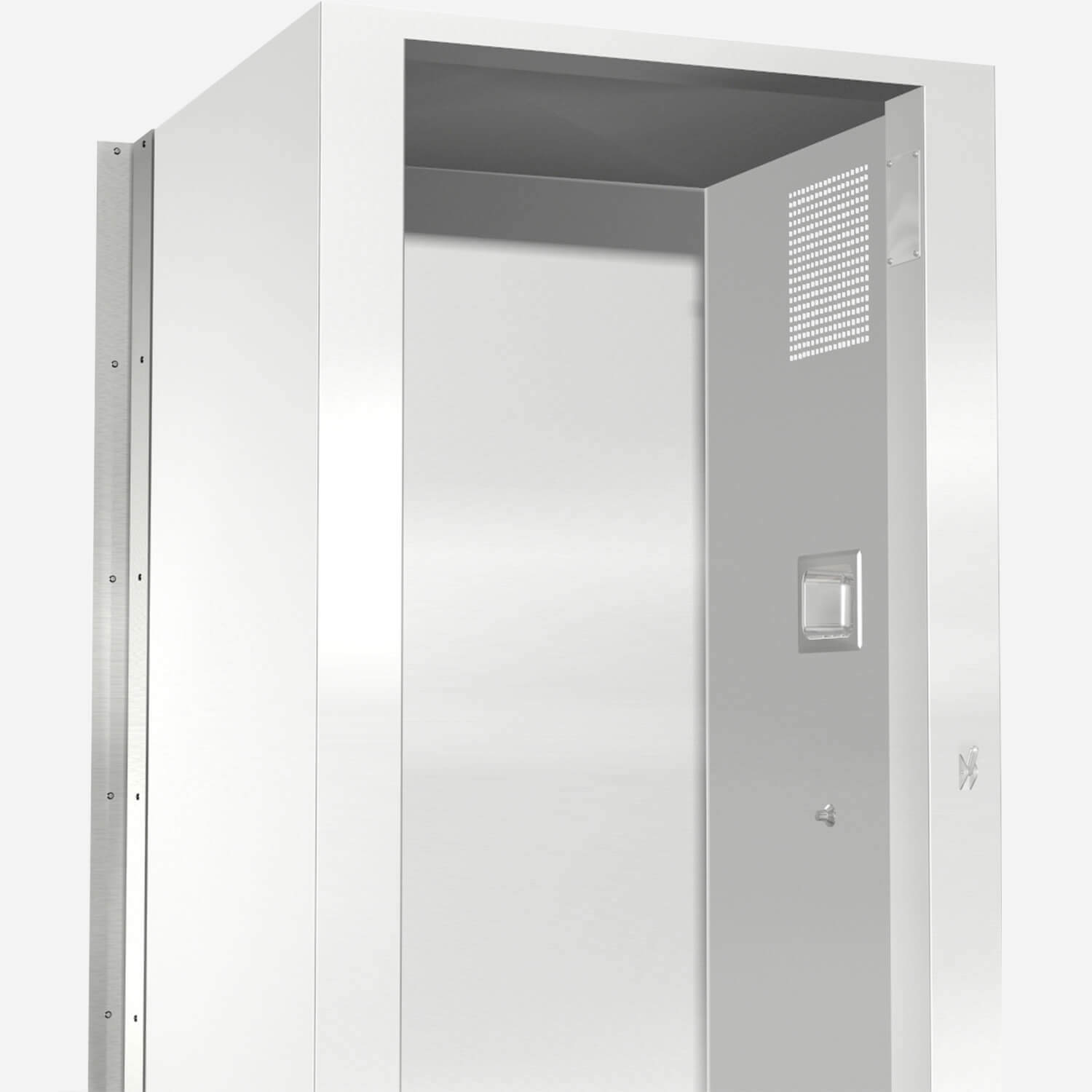

 | CHV-AL | Option: Vertical Cabinet Closure - Angled Left | ||

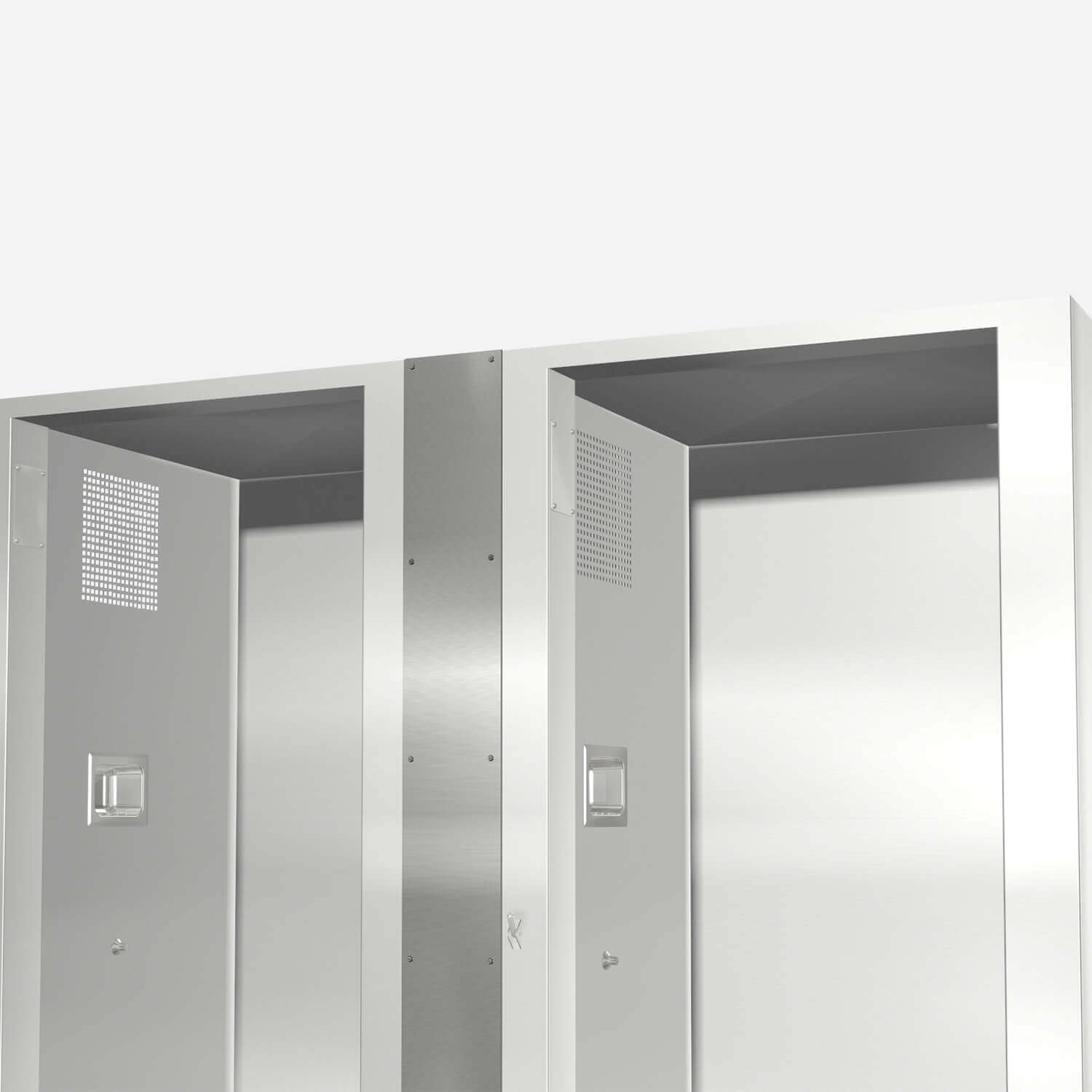

 | CHV-C | Option: Vertical Cabinet Closure - Center | ||
 | CHV-L | Option: Vertical Cabinet Closure - Left | ||

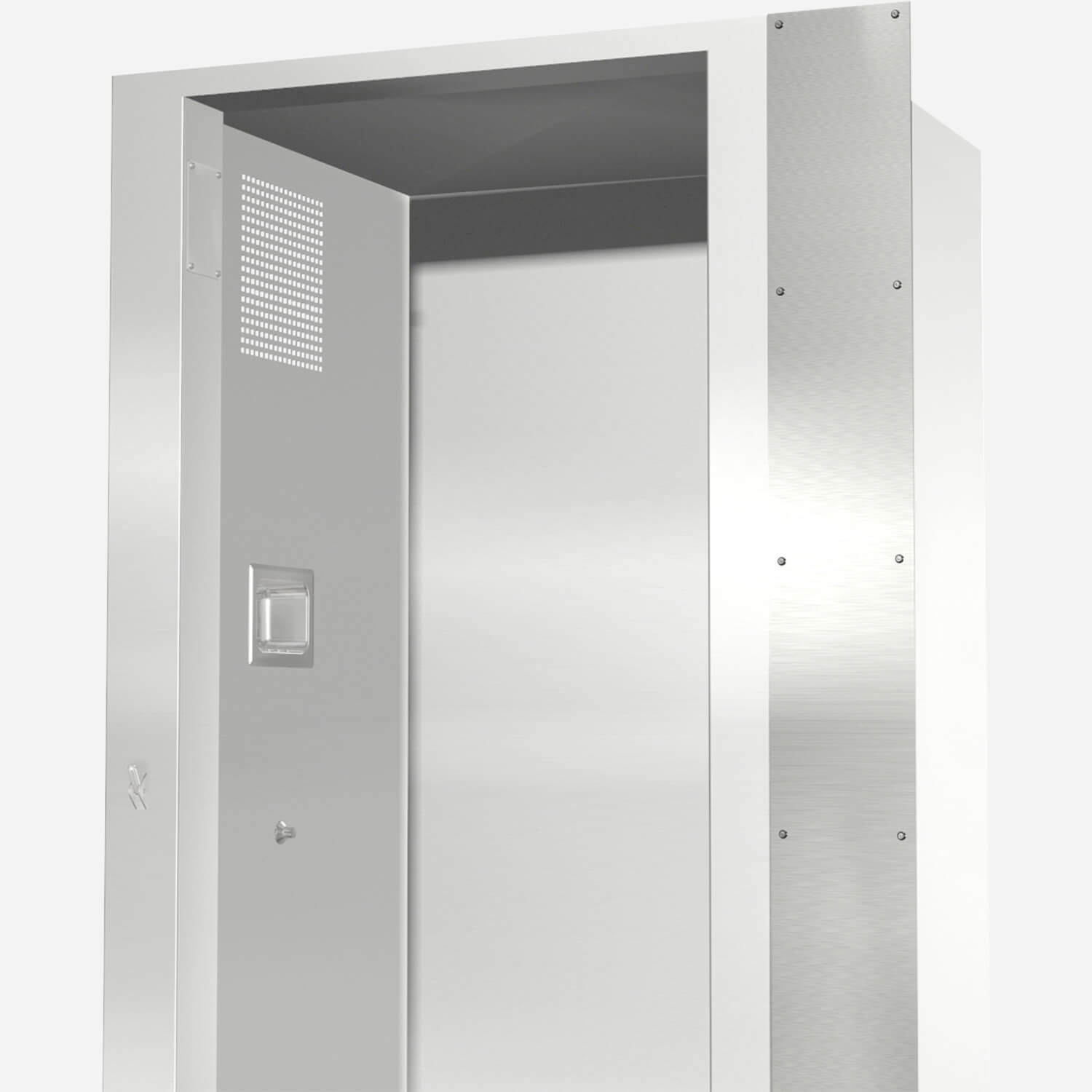

 | CHV-R | Option: Vertical Cabinet Closure - Right | ||

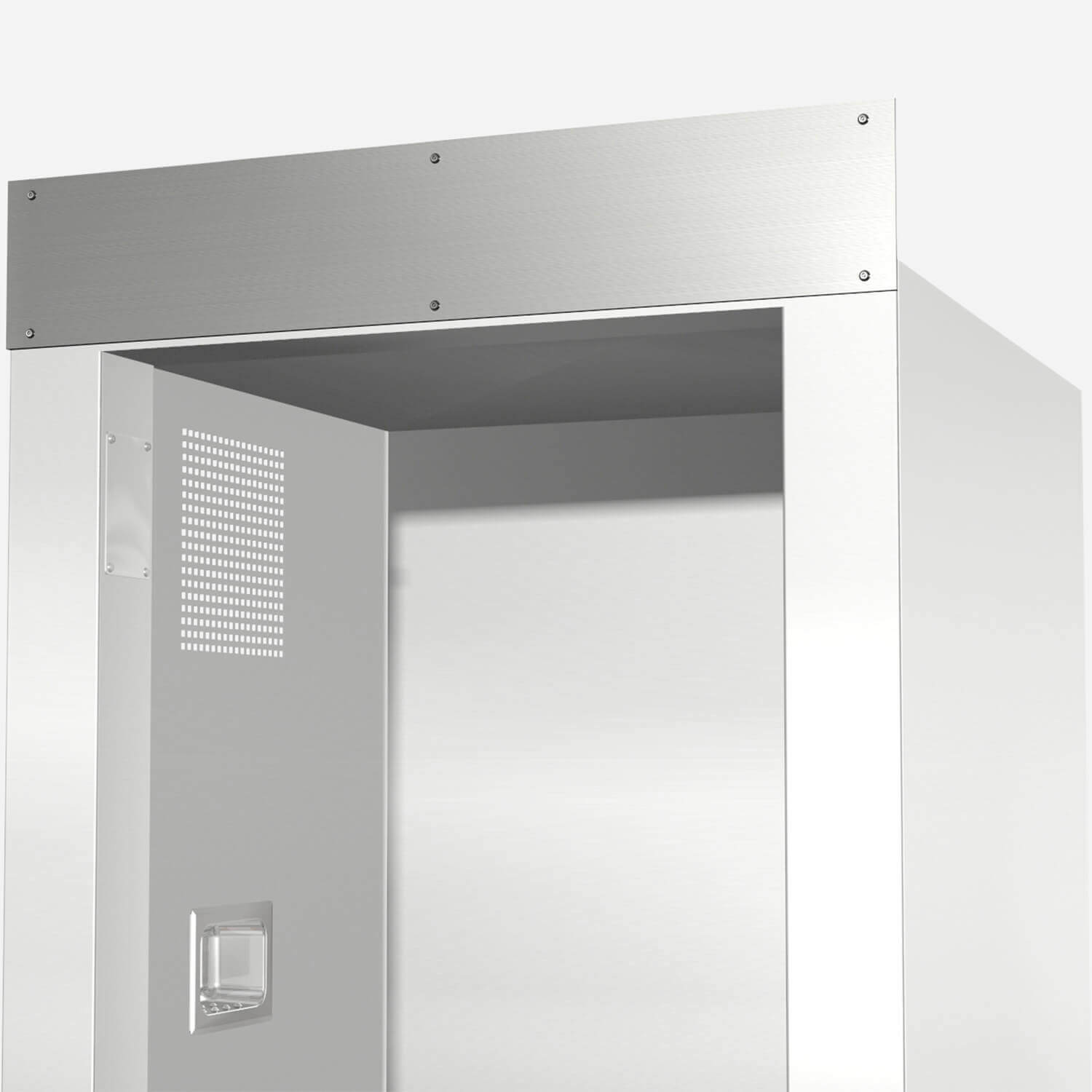

 | CHV-TF | Option: Horizontal Cabinet Closure - Top Front | ||
 | CHW | Option: Closure Wall Panel | ||
 | CSH | Option: Conical Shower Head | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | F1.6 | Option: Flow Control 1.6 GPM | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FSS | Option: Folding Seat, Stainless Steel | ||

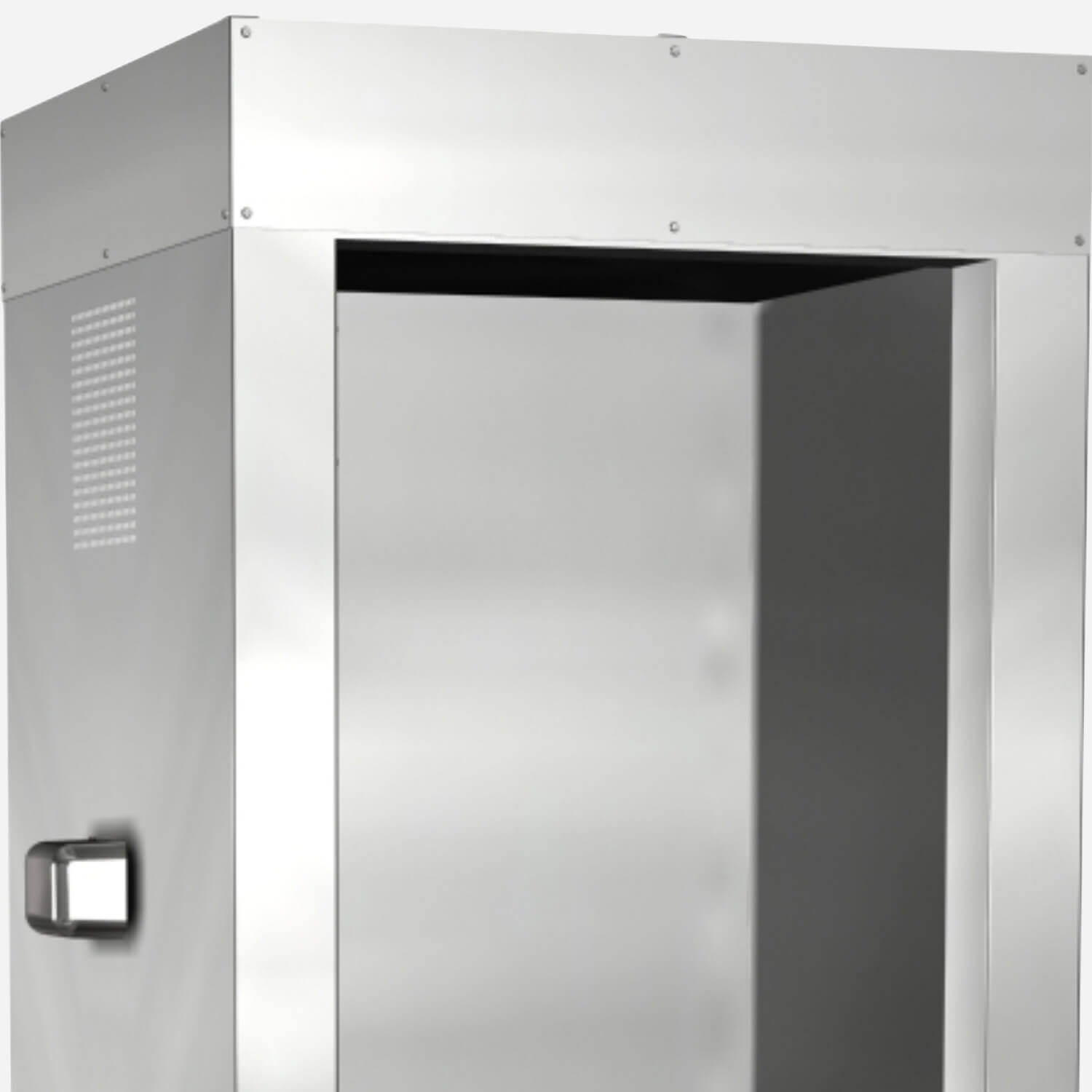

 | HAC-AL | Option: Horizontal Angled Closure - Left | ||

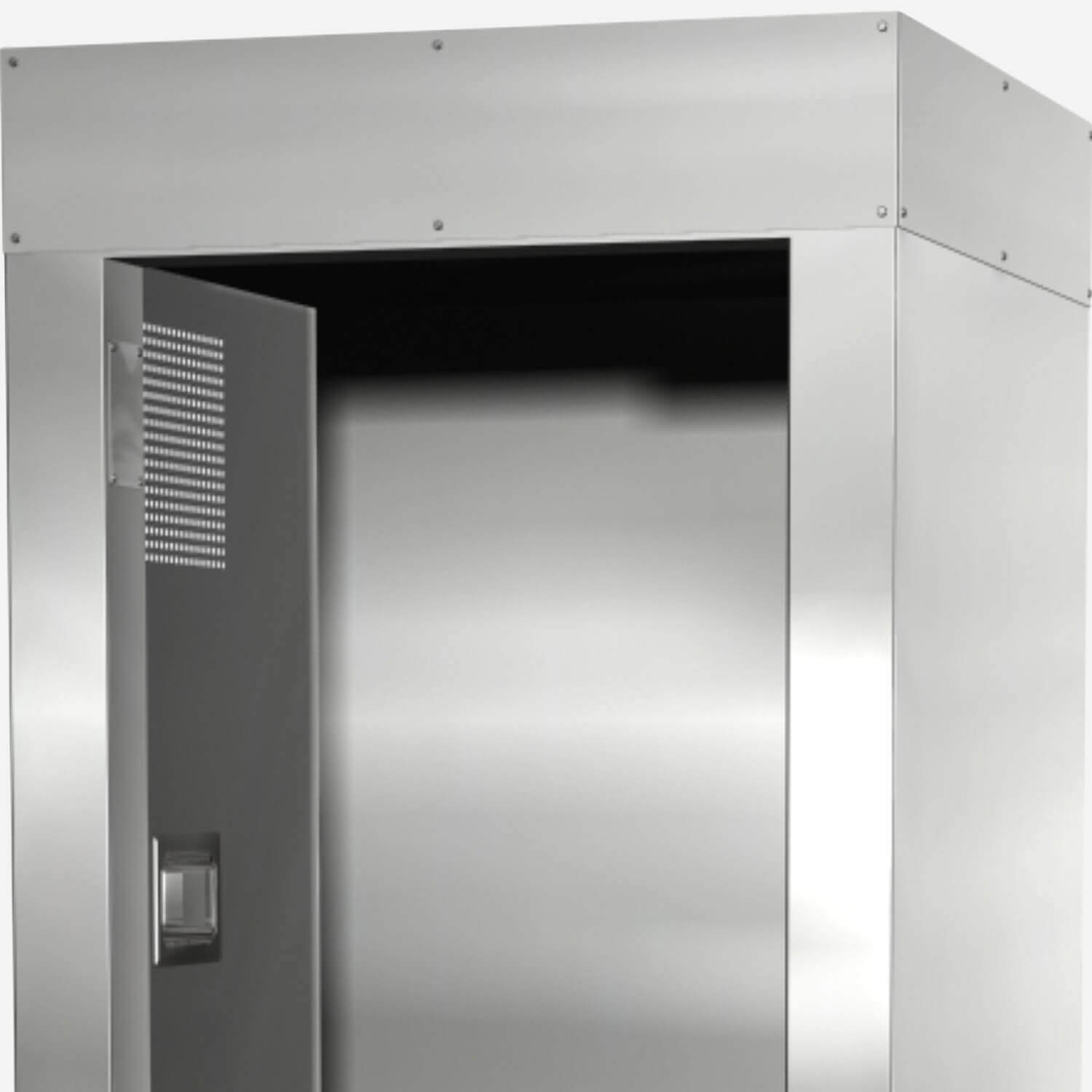

 | HAC-AR | Option: Horizontal Angled Closure - Right | ||

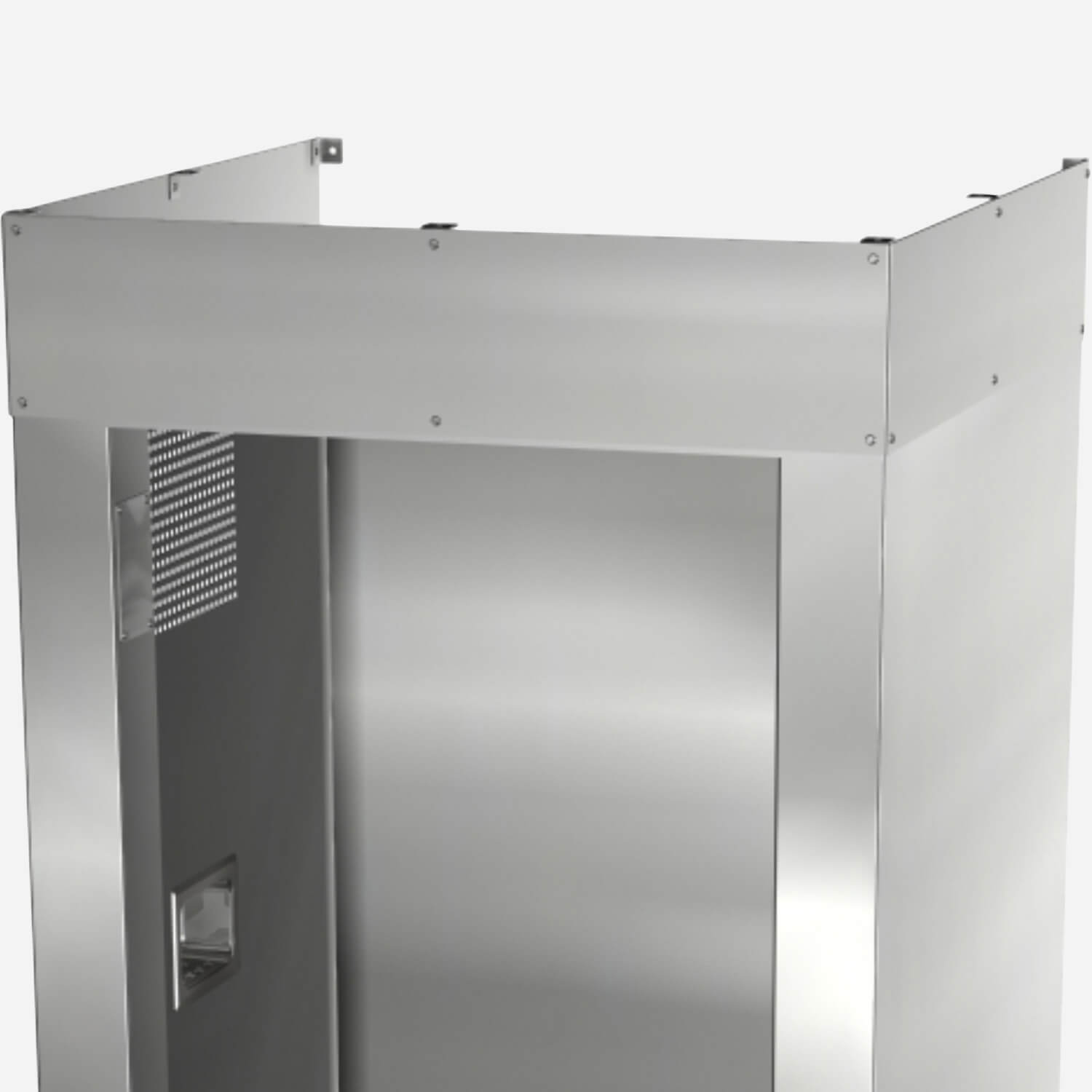

 | HAC-TSW | Option: Horizontal Angled Closure - Top Single Wall | ||

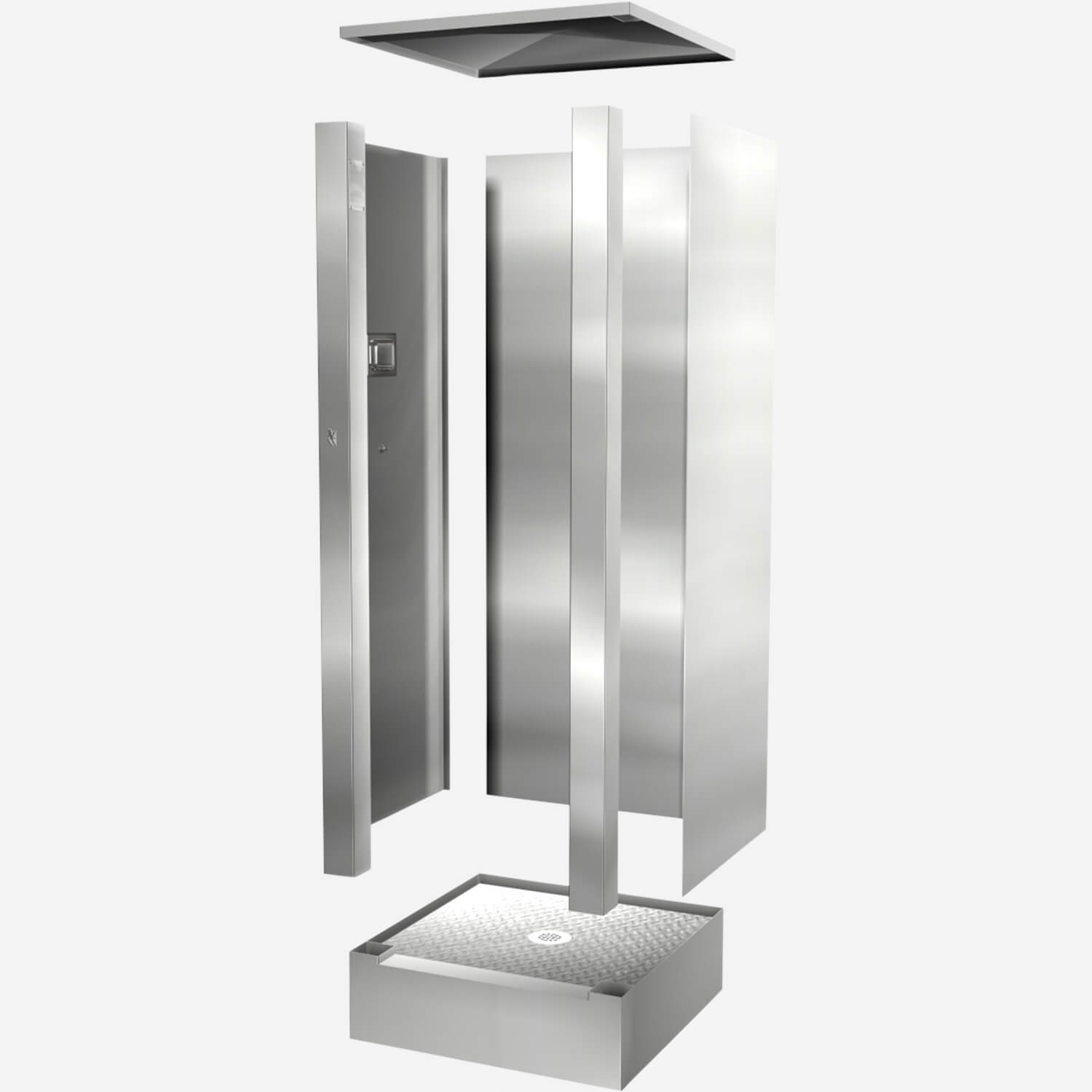

 | KD | Option: Knock-Down Cabinet | ||
 | LFS | Option: Less Folding Seat | ||
 | LGB (Shower) | Option: Less Grab Bar on Shower | ||
 | LRD | Option: Less Recessed Soap Dish | ||
 | MD | Option: Modesty Door | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | MVC2 | Option: Hot & Cold Valve Application Time-Trol® | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | PW | Option: Polished Exterior Wall for Cabinet Shower | ||
 | PYY | Option: Penal Showerhead with Universal Lockable Joint | ||

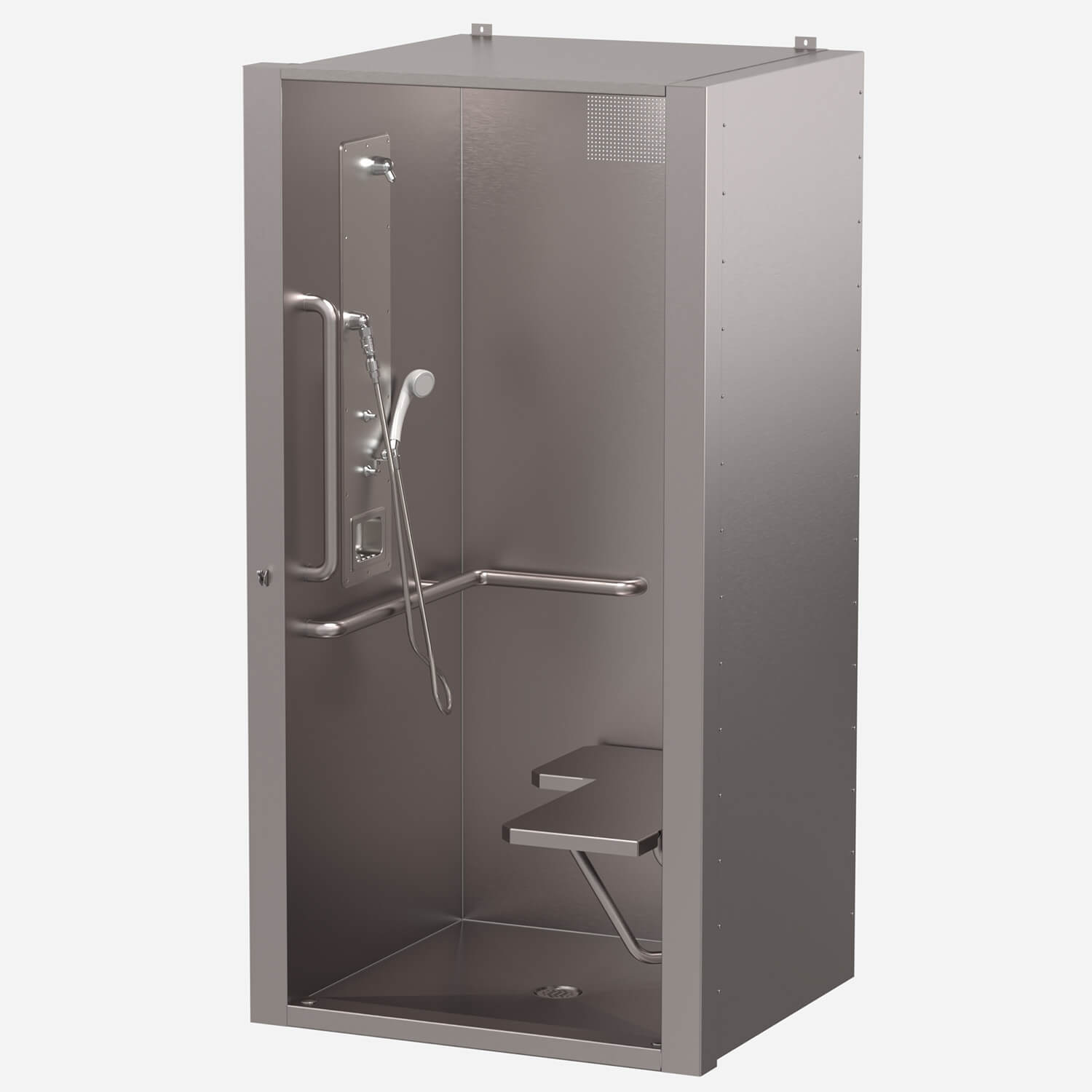

 | SL | Option: Shower Location on Cabinet Shower | ||

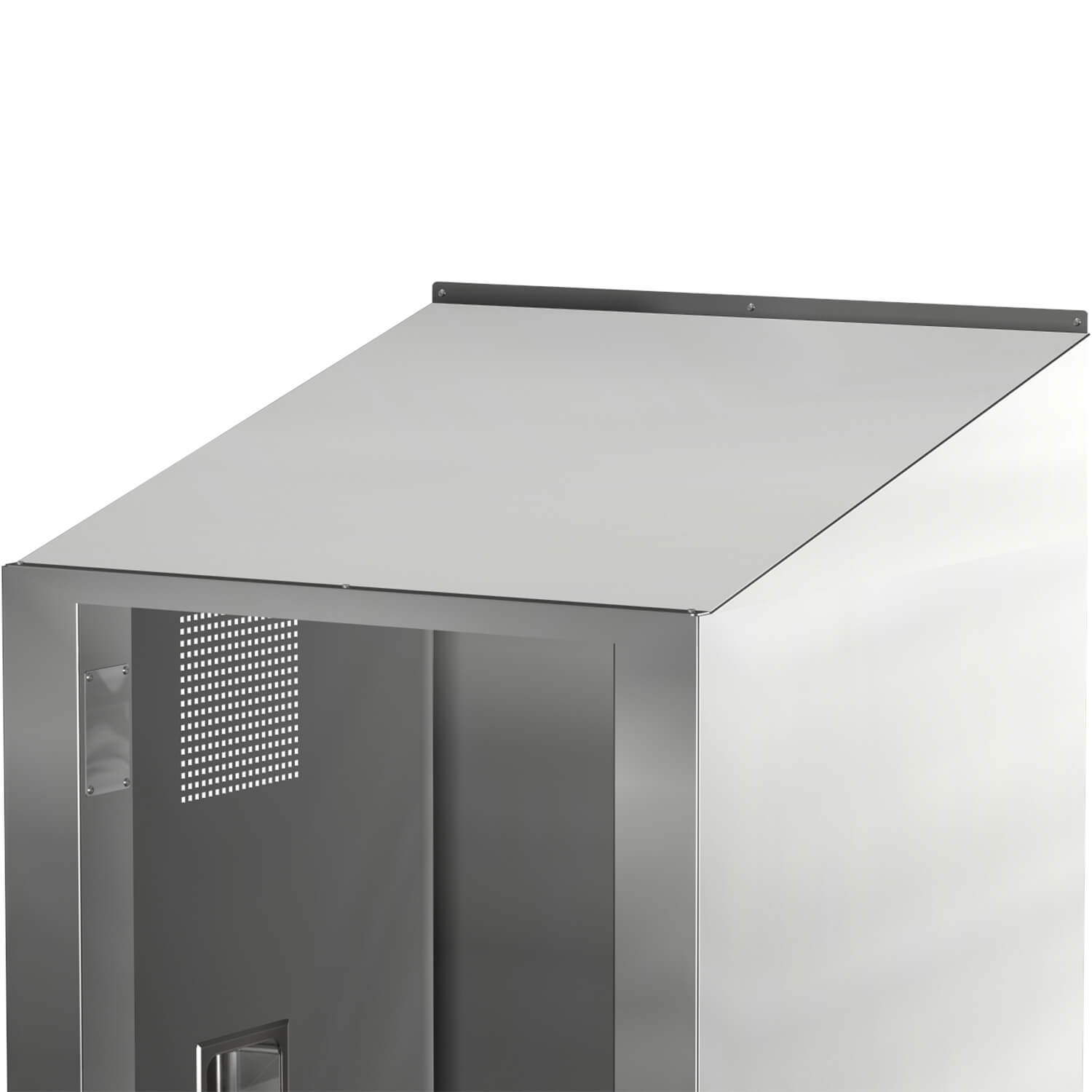

 | STC | Option: Sloping Top Closure | ||
 | TA | Option: Threshold Anchor | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | VG | Option: Ventilation Grille | ||
 | CHV-STC | Option: Sloping Top Closure for Security Shower Cabinet | ||
 | CHV-TF Double | Option: Top Front Horizontal Closure Panel for Side-to-Side Security Shower Cabinets |
Models
Valve options shown below.
Model Number -8
ASSE 1016 Compliant Temperature-Pressure Balancing Mixing Valve with ADA Ligature-Resistant Tri-Lever Handle
Patent No D697.591 and 10,474,170 B2
-8MV
ASSE 1016 Compliant Temperature-Pressure Balancing Mixing Valve with ADA Ligature-Resistant Tri-Lever Handle and Pushbutton for Metered Valve
Patent No D697.591 and 10,474,170 B2
Electronic valve options:
Specify: -MTP1 , -MTPP1 , -EVS1 , -EVSP1 , -MVC1 , -MVC1-CI , -PPZ1 , -EVS2 , -EVSP2 , -MTP2 , -MTPP2 , -PPZ2
