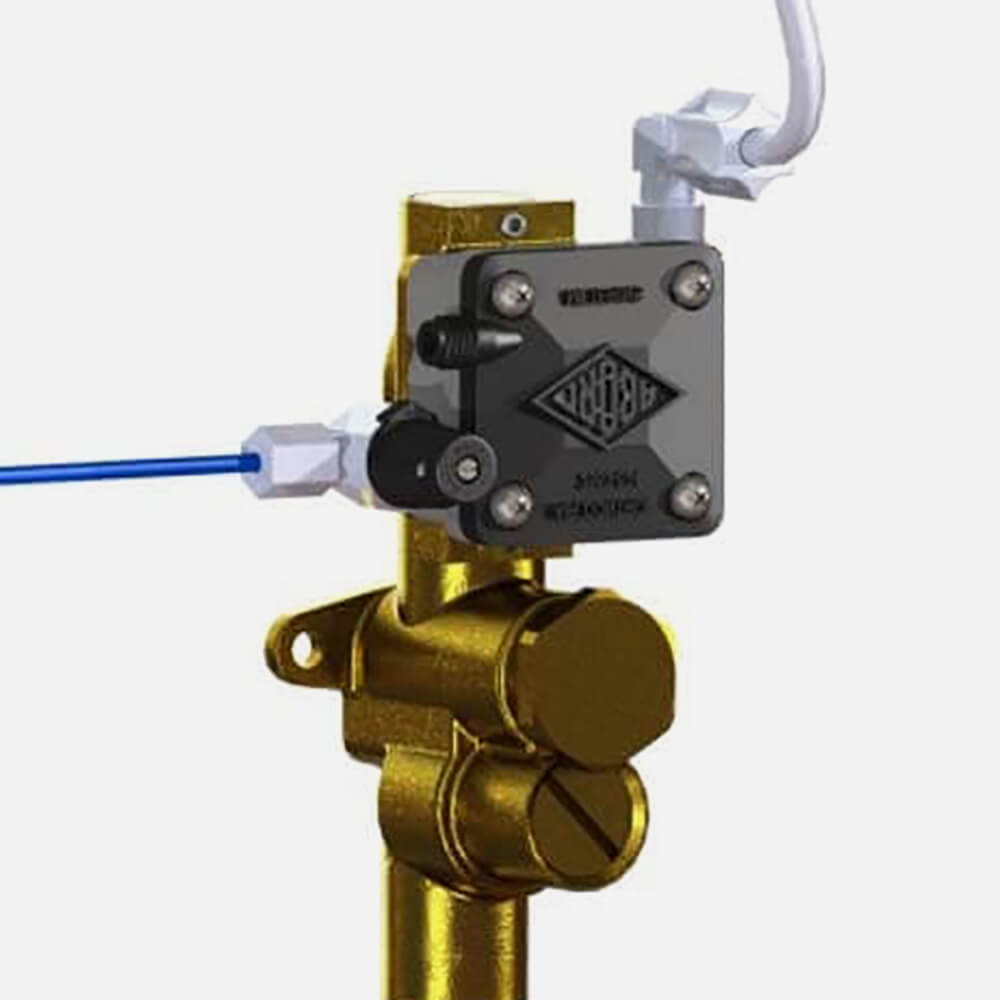

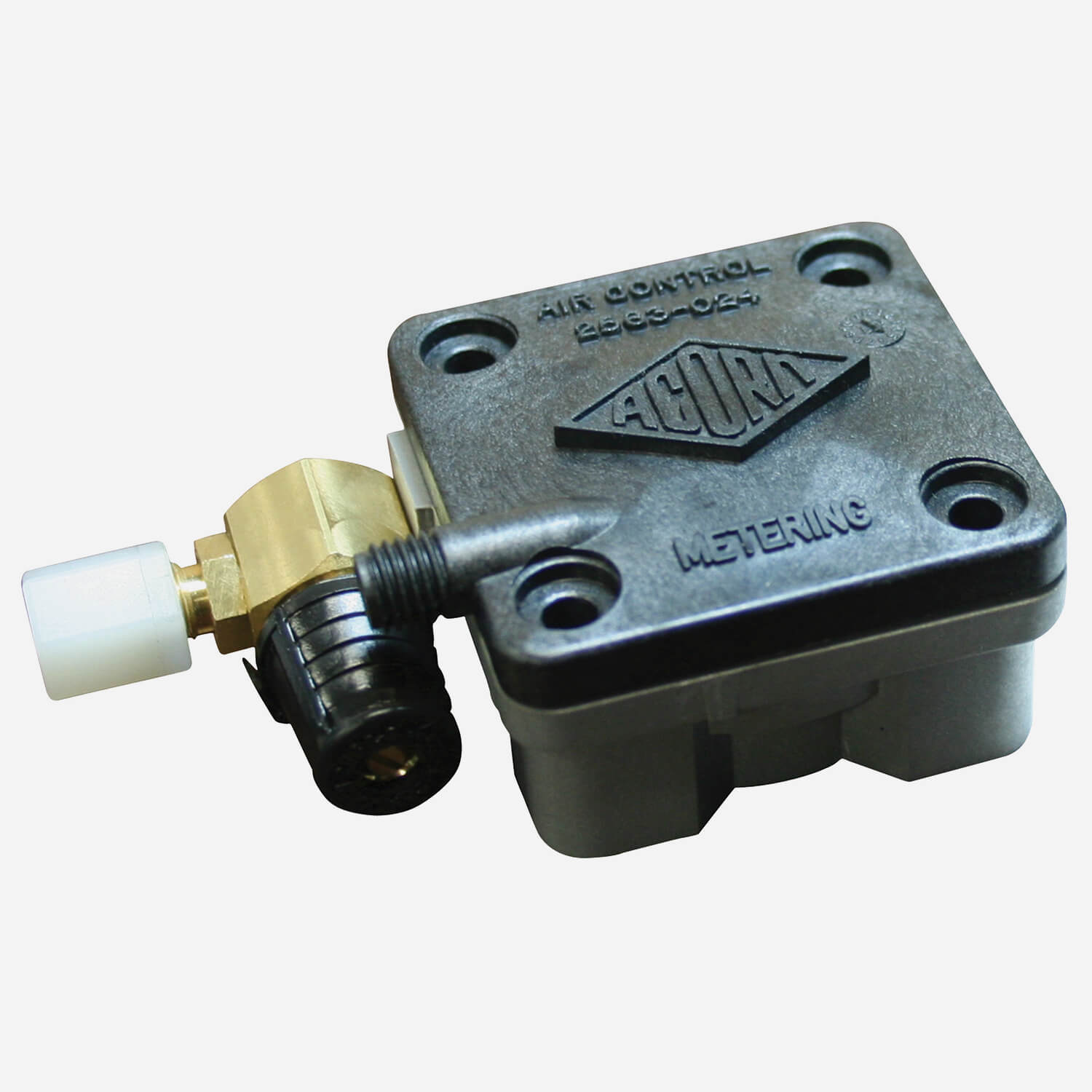

Option: Single Temperature Metering Air-Control® Pneumatic Valve

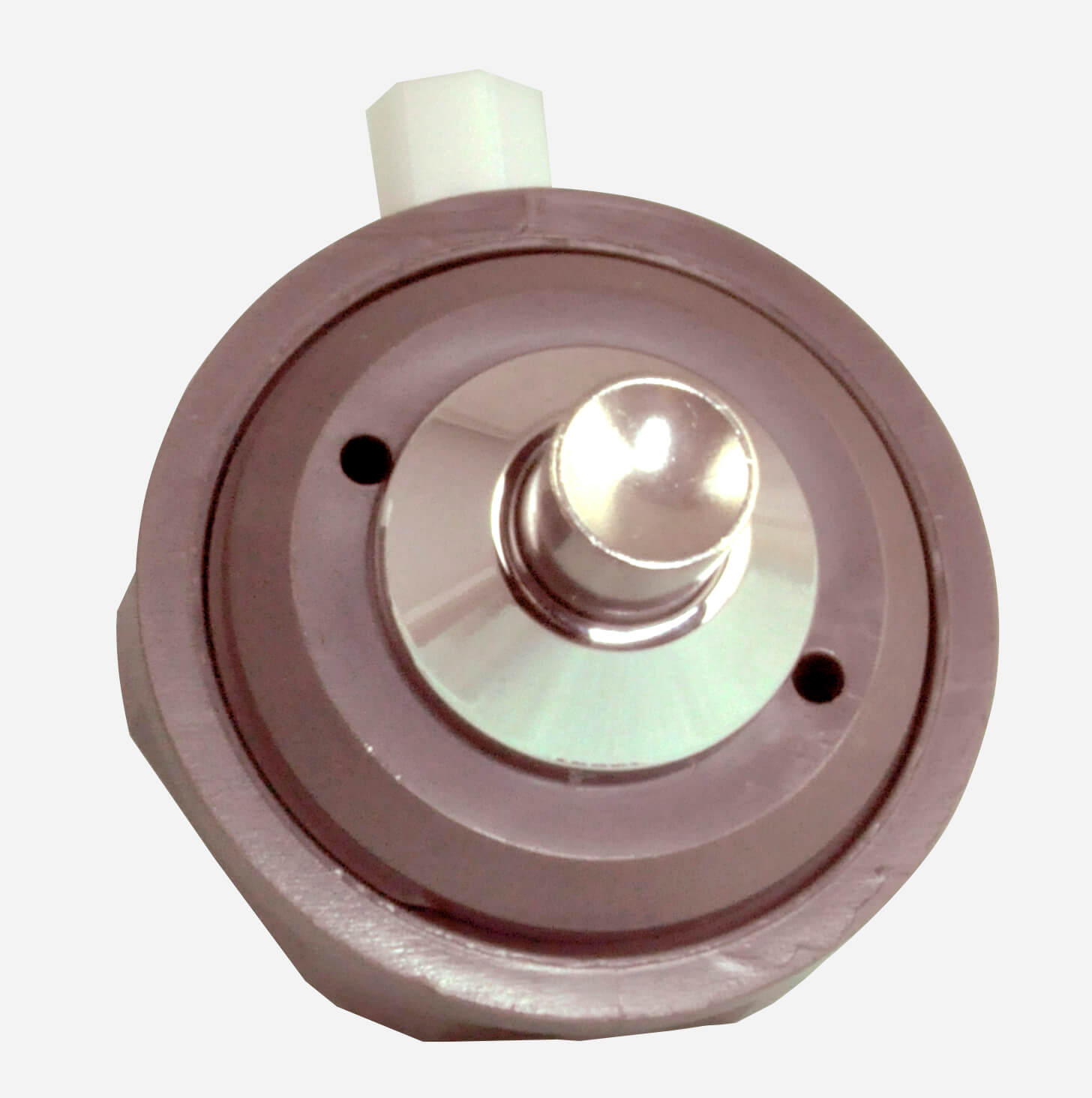

This single-temperature valve is a pneumatically operated, pushbutton valve that uses atmospheric air. The pushbutton is vandal-resistant and requires less than 5 pounds (2.27 kg) to activate valve. Valve can be remotely located up to 10 feet (3.05 meters) from the actuating button and is ideally suited for small chase areas. Metering provides an adjustable timed cycle flow from the valve. Timing is adjustable from 5 to 60 seconds. Air-Control™ features non-hold open pushbutton activation, and is provided with a stainless steel strainer and an integral checkstop. Valve conforms with the lead-free requirements of NSF61, Section 9, 1997; CHSC 116875 and ADA requirements.

Valve Specifications:

• Maximum Water Pressure: 100 PSI
• Minimum Water Pressure: 30 PSI
• Maximum Water Temperature: 130º F (54º C)

If metering is not desire, a non-metering version may be specified as option -03Brass version is available with -BRS option
