Name: Option: Hot & Cold Air-Control® Pneumatic Valve
Brand: Acorn Engineering Company
SKU: 04

Model 04

Option: Hot & Cold Air-Control® Pneumatic Valve

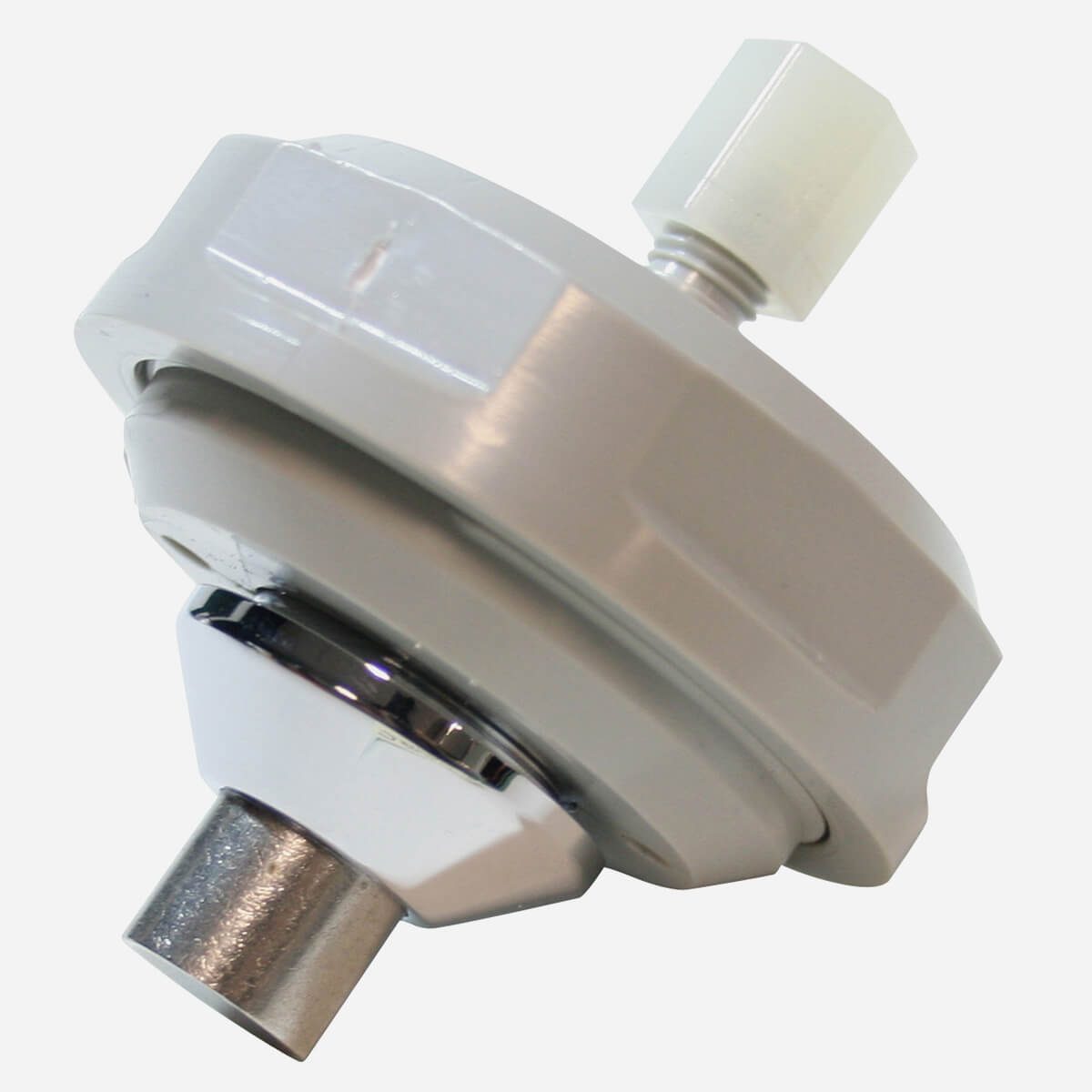

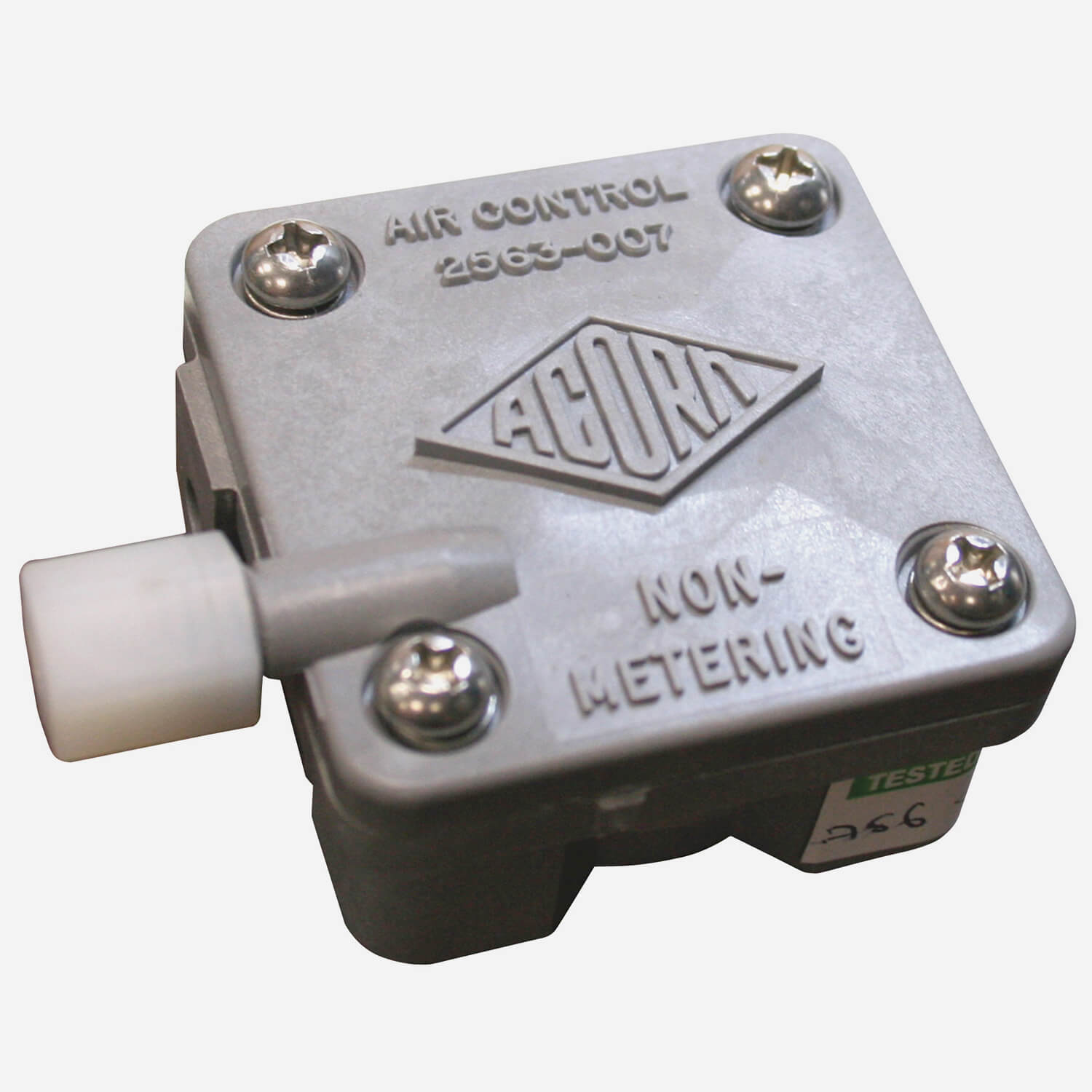

This hot and cold valve is a pneumatically operated, hand pushbutton, soft closing valve that uses atmospheric air. The pushbutton is vandal-resistant and requires less than 5 pounds to activate valve. Valve can be remotely located up to 10 feet from the actuating button and is ideally suited for small chase areas. Valve conforms with the lead-free requirements of NSF61, Section 9, 1997; Federal Public Law 111-380 and ADA requirements. Valve is non-metering unless specified as -04-M Brass version is available with -BRS optionValve Specifications:

Maximum Water Pressure: 100 PSI
Minimum Water Pressure: 30 PSI
Maximum Water Temperature: 130º F (54º C)

CALIFORNIA WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov - Learn More about this warning

Downloads

Resource Type	Title	Description	File Size
Submittals	Spec Sheet Option -04 (pdf)	Hot & Cold Air-Control™ Pneumatic Valve - Non-Metering	529 KB
Submittals	Submittal Air-Control Valve	Acorn Air-Control Pneumatic Valve [-03 \| Single Temperature; -04 \| Hot & Cold]	1 MB
Brochures/Flyers	MGI Corporate Brochure (pdf)	Who we are, Our History, Morris Group International Today	27 MB
Brochures/Flyers	MGI Brands Flyer (pdf)	Overview of MGI Divisions	718 KB
Parts Manuals	Parts Assembly 9955-005-002	Valves: Hot and Cold Air-Control™ Fixture Valve Body -Old Style	72 KB
Parts Manuals	Parts Assembly 9955-007-002	Valves: Hot and Cold Air-Control™ Dual Fixture Valve Body	73 KB
Parts Manuals	Parts Assembly 9955-007-003	Valves: Hot and Cold Air-Control™ Dual Fixture (-04 -MA2)	66 KB
Parts Manuals	Parts Assembly 9957-170-001	Trims: Fixture Trim,Hot and Cold AAir-Control™ Valve -8" Wall	154 KB
Videos	Non-Metering Air-Control Valve Troubleshooting (video)	How to troubleshoot the Non-Metering Air-Control Valve	133 KB

Can't find what you are looking for? Get in touch

Specifications

Shows specifications for standard configuration. Configuration options may change specifications.

Product Type	Valve
Brand	Air-Control®
Product Features	Hot & Cold, Non-Metering
Accessibility	ADA Compliant
Compliance	NSF61, Section 9, 1997, Federal Public Law 111-380

Options

Miscellaneous

	Image	Model	Description	Downloads
		BC	Option: Bubbler, Code
		BP	Option: Bubbler, Penal
		BPH	Option: Hemispherical Penal Bubbler
		LF	Option: Lavatory Filler
		M	Option: Metering
		MA2	Option: Manifolded Valves, 2 Set
		MA3	Option: Manifolded Valves, 3 Set
		MA4	Option: Manifolded Valves, 4 Set
		MH	Option: Metering, Hot Side Only
		PBH	Option: Pushbutton, Hemispherical
		PBP	Option: Push Rod Activated Pushbutton

Product Variations

Image	Model ID	Description
	03	Option: Single Temperature Air-Control® Pneumatic Valve
	03-M	Option: Single Temperature Metering Air-Control® Pneumatic Valve
	04-M	Option: Hot & Cold Metering Air-Control® Pneumatic Valve
	04-MH	Option: Hot (Metering) & Cold Air-Control® Pneumatic Valve
