Model 03

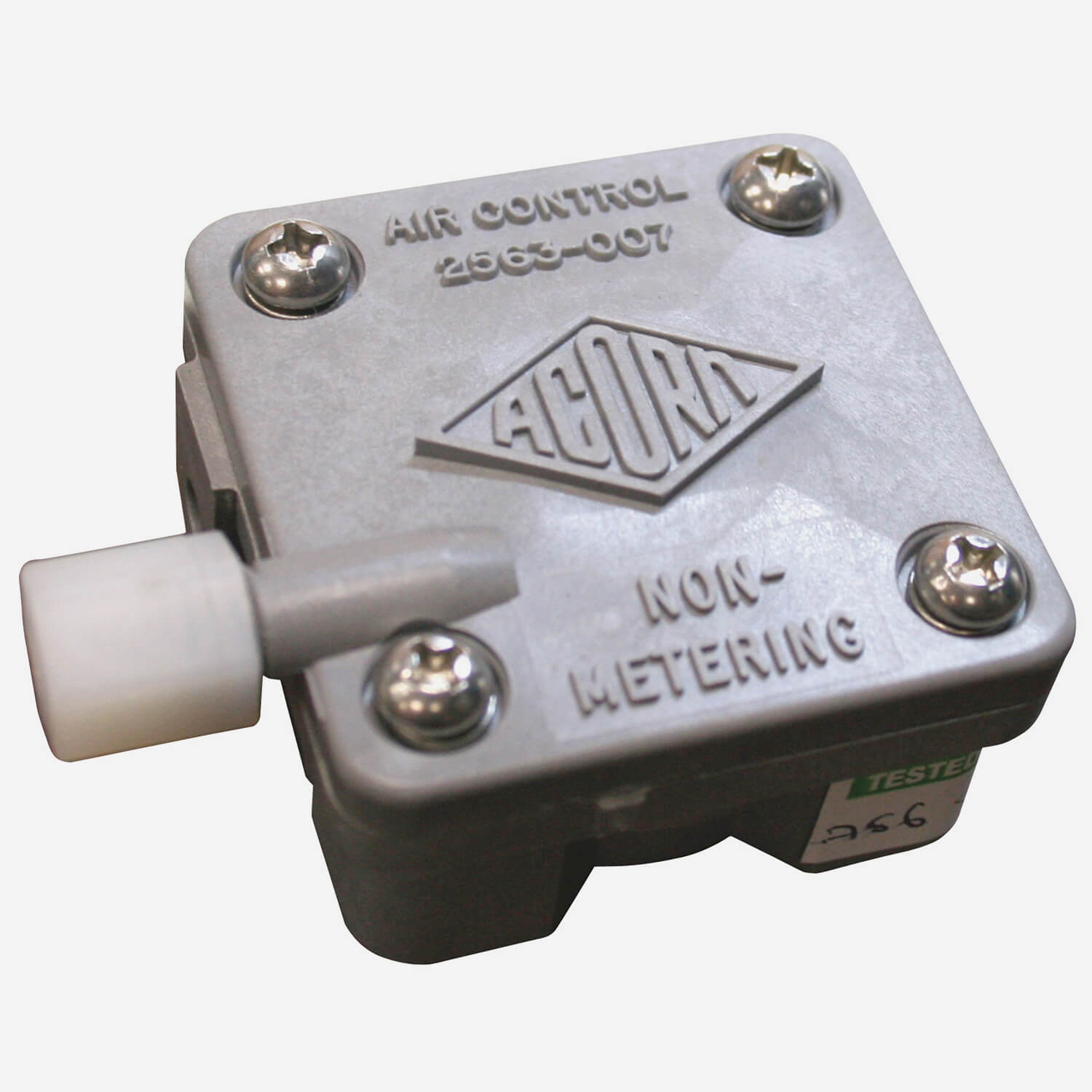

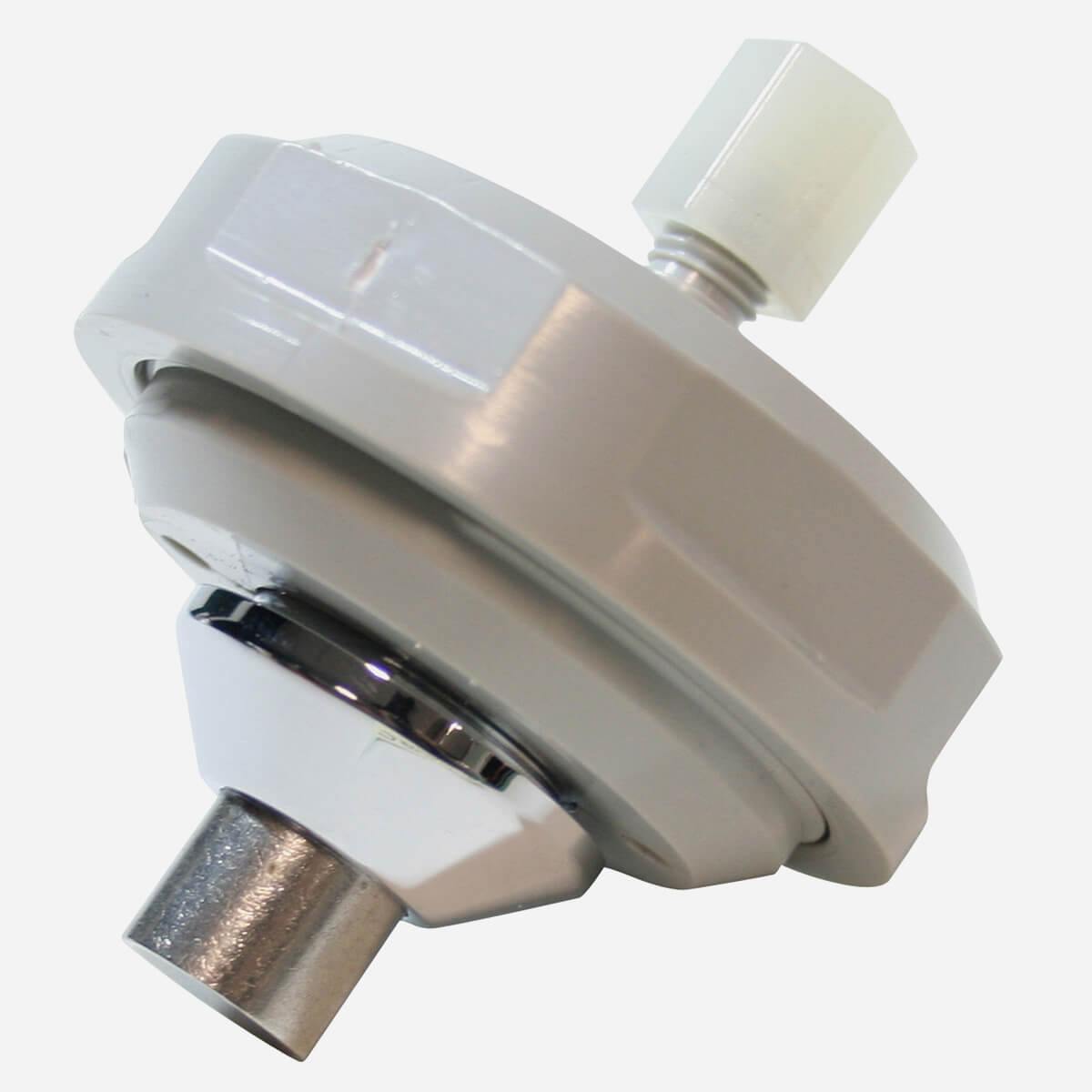

Option: Single Temperature Air-Control® Pneumatic Valve
This single temperature valve can be remotely located and is ideally suited for small chase areas. Air-Control® features 0.5 gallon (1.89 liter) per minute flow control intended for most lavy applications, indexed push button, stainless steel strainer and integral checkstop. Valve conforms with the lead-free requirements of NSF61, Section 9, 1997 and ADA requirements.
Valve Specifications:
- Maximum Water Pressure: 100 PSI
- Minimum Water Pressure: 30 PSI
- Maximum Water Temperature: 130º F (54º C)
Valve is non-metering unless specified as -03-M Brass version is available with -BRS option
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Single Temperature Air-Control™ Pneumatic Valve - Non-Metering | 0 | 515 KB | ||
| | Acorn Air-Control Pneumatic Valve [-03 | Single Temperature; -04 | Hot & Cold] | 0 | 1 MB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | Explanation- Air-Control Valve Operation | 0 | 25 MB | ||
| | Valves: Single Temp Air-Control™ Fixture Valve Body -Old | 0 | 67 KB | ||
| | Valves: Single Temp, Air-Control Dual Fixture -Old Style | 0 | 72 KB | ||
| | Valves: Single Temp Air-Control™ Dual Fixture ( -03 -MA2) | 0 | 59 KB | ||
| | Trims: Fixture Trim, Single Temp Air-Control™ | 0 | 131 KB | ||
 | | How to troubleshoot the Non-Metering Air-Control Valve | 0 | 133 KB |
Specifications
| Product Type | Valve |
| Brand | Air-Control® |
| Product Features | Non-Metering, Single Temperature |
| Compliance | Federal Public Law 111-380, NSF61, Section 9, 1997 |
| Accessibility | ADA Compliant |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BC | Option: Bubbler, Code | ||
 | BP | Option: Bubbler, Penal | ||
 | BPH | Option: Hemispherical Penal Bubbler | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | LF | Option: Lavatory Filler | ||
 | M | Option: Metering | ||
 | MA2 | Option: Manifolded Valves, 2 Set | ||
 | MA3 | Option: Manifolded Valves, 3 Set | ||
 | MA4 | Option: Manifolded Valves, 4 Set | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | PBP | Option: Push Rod Activated Pushbutton |
