Model 410BBF Series

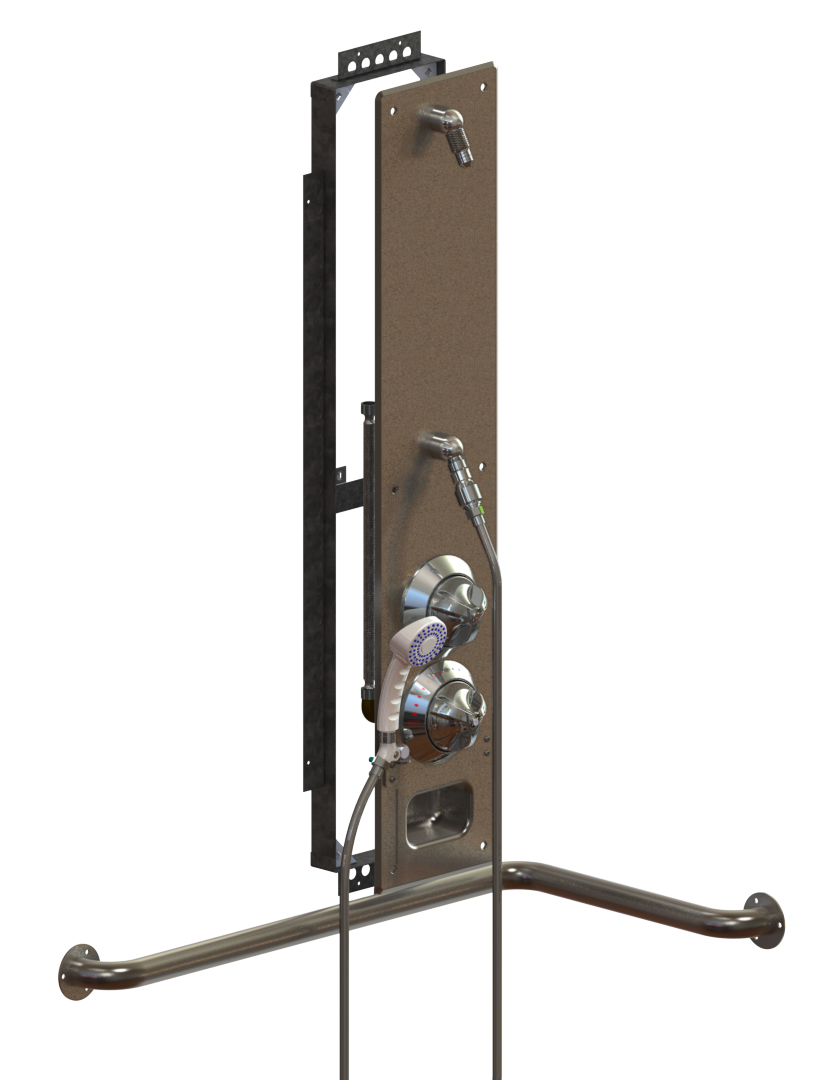

ADA Flush Mount Stainless Steel Apex Shower with Handheld
The shower panel shall be fabricated from 18 gauge, type 304 stainless steel, and shall have a satin finish. The exposed trim shall be chrome-plated brass. Fixture shall be furnished with an ADA compliant control valve with a Ligature Resistant ADA Compliant Tri-Lever Handle, lever handle or pushbutton, fixed shower head, a quick disconnect hand shower with on/off pushbutton, vacuum breaker and flow control, a diverter valve with an ADA Compliant Tri-Lever Handle or lever handle, recessed soap dish, a two-wall stainless steel grab bar, and a padded vinyl folding seat. Units to conform with ANSI, UFAS, and ADA requirements for accessibility.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 678 KB | |||
| | ADA Flush Mount Stainless Steel Apex Shower with Handheld and Narrow Housing [410BBF | Electronic Valve (specify Master-Trol, Master-Trol Plus, Time-Trol, Piezo Button); 416BBF | Air-Control Pneumatic Valve; 418BBF | ASSE 1016 T/P Balancing Valve] | 292 KB | ||
 | | ADA Flush Mount Stainless Steel Apex Shower with Handheld and ASSE 1016 Compliant Temperature/Pressure Balancing Mixing Valve | 1 MB | ||
| | ADA Flush Mount Stainless Steel Apex Shower with Handheld and ASSE 1016 Compliant Temperature/Pressure Balancing Mixing Valve | 949 KB | ||
 | | Acorn Engineering - Commercial Showers | 288 KB | ||
| | Acorn Engineering - Commercial Showers | 221 KB | ||
| | 2 MB | |||
| | Enviro-Glaze Powdercoating Color Chart - Update Aug 2026 | 291 KB | ||
| | Commercial Showers Brochure (pdf) | 2 MB | ||
 | | ADA Flush Mount Stainless Steel Apex Shower (Narrow Housing) Fixed Upper Shower Head with Handheld Shower, T/P Balancing Mixing Valve Tri-Lever Handle (ASSE 1016 Compliant), Recessed Soap Dish and Two-Wall Grab Bar (1108-3); Seat included but not shown. | 213 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 70 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru Present | 333 KB | ||
| | Valves: Time-Trol Valve | 168 KB | ||
| | Trims: Air-Trol/Master-Trol Push Button Assembly | 130 KB | ||
| | Shower Heads: Flex Shower Head | 132 KB | ||
| | Shower Heads: Hand Shower Vertical Adjust Equipment | 59 KB | ||
| | Shower Heads: Flangeless Rear Mount Shower Head | 70 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 493 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru January 2014 | 130 KB | ||
| | Shower-Ware - Valves: Single Temp Air-Trol Valve Body Assembly | 75 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Flush Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena |
| Park and Recreation Applications | Yes |
| Accessibility | ADA Compliant |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | HL | Accessory: Hi - Lo Mounting Brackets for Shower |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | BS | Option: Built-In Liquid Soap System | ||
 | CH | Option: Curtain and Headrail | ||
 | CSH | Option: Conical Shower Head | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | FSP | Option: Folding Seat, Phenolic (Plastic) in Lieu of Padded | ||
 | FSS | Option: Folding Seat, Stainless Steel | ||
 | LFS | Option: Less Folding Seat | ||
 | LGB (Shower) | Option: Less Grab Bar on Shower | ||
 | LPF | Option: Less Plaster Flange | ||
 | LRD | Option: Less Recessed Soap Dish | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||
 | RP | Option: Reinforced Panel for Folding Seat | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | WS | Option: Without Shower Head | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint |
Models
The model numbers are defined with the valve that is specified for the shower.
Model Number 416BBF
Air-Control Valve, Single Temperature Metering
Model Number 418BBF
Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591 and 10,474,170 B2 Valve with Lever Handle also available
Model Number 410BBF
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
