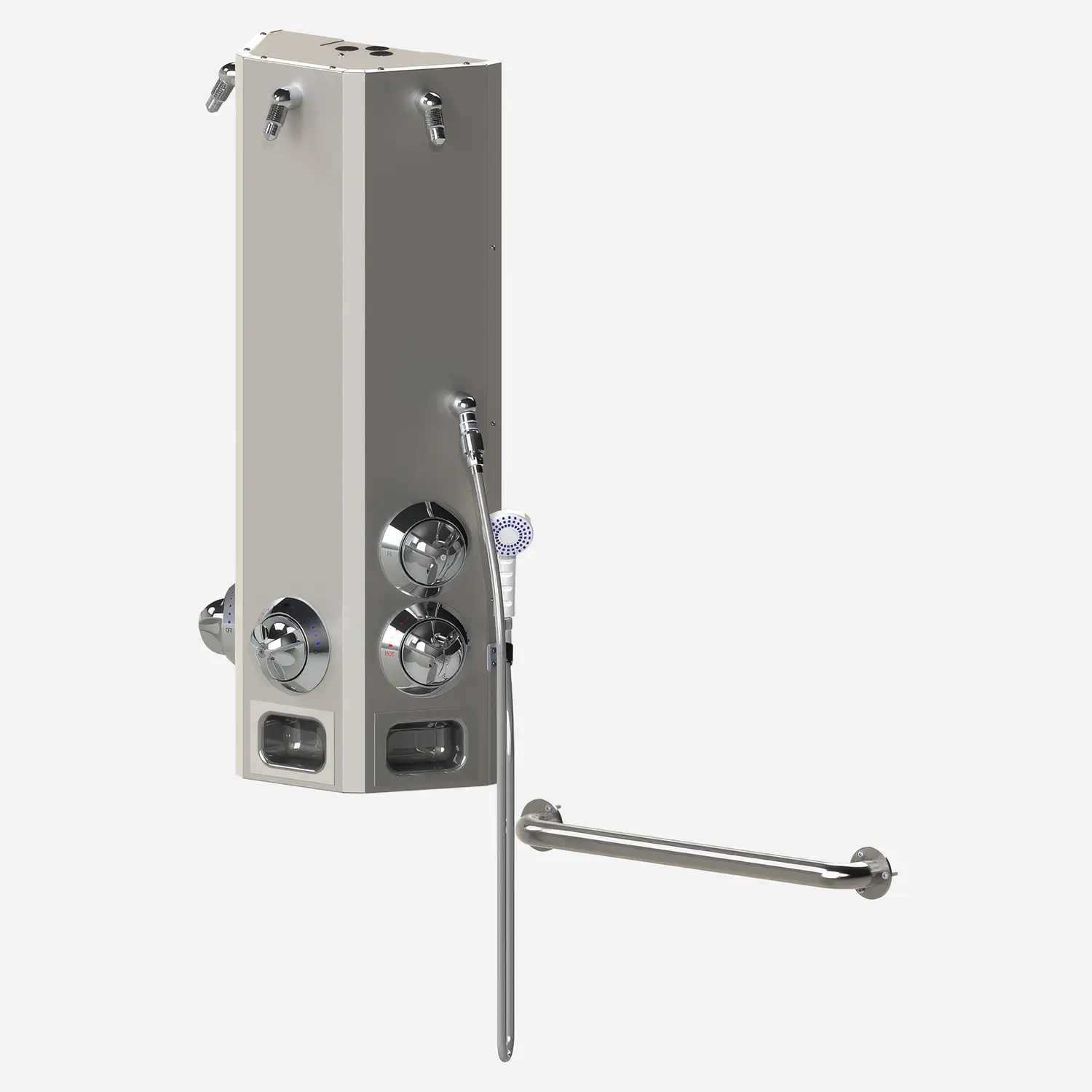

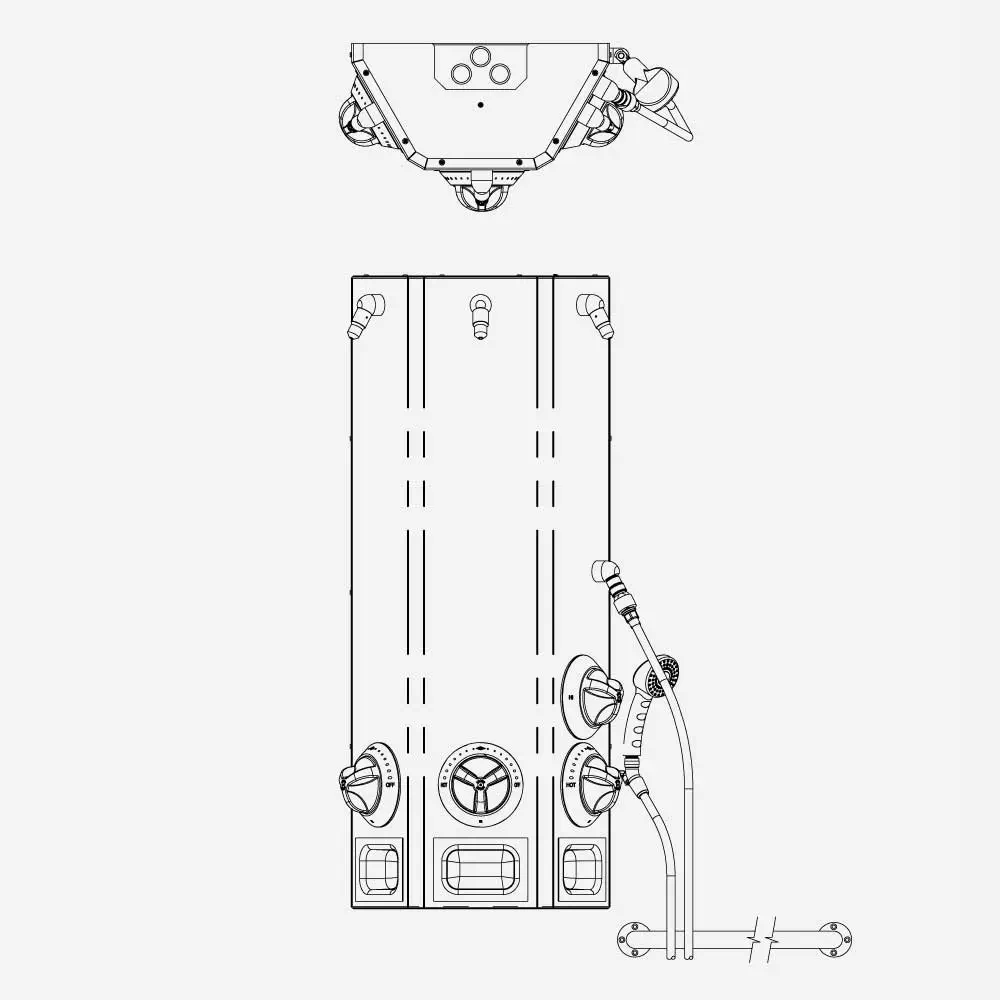

Three Station with Handicap Station Stainless Steel Apex Shower
-HC Handicap Shower Station includes a diverter valve with a Patented Ligature Resistant ADA Compliant Tri-Lever Handle (Standard with T/P valve only) or a lever handle, a handheld shower with on/off pushbutton, vacuum breaker, upper showerhead, a recessed soap dish and a 24" x 1-1/2" stainless steel grab bar. Unit does not fully conform with ADA requirements.
Housing is 18 gage, type 304 stainless steel with satin finish.
Supply Piping is a flex hose and bronze or wrought copper fittings. Showerhead riser and valve supply inlet piping may differ. Supply stub-out is sized to provide adequate water to each head simultaneously. Piping is hydrostatically tested at 150 PSI.
Control Valve type is indicated by selected Apex model number. All valves have replaceable cartridges which contain all wearing parts and are serviced from the face of the shower for easy maintenance. Valve is tamper-resistant and may include an easy to close mechanism and low leverage handle to protect the operating parts from excessive torque.
Showerheads. A handheld shower with on/off button, 60” hose, quick-disconnect and 1.5 GPM flow control is provided. A conventional fixed showerhead is also provided at 6'-0" discharge height. Showerhead is solid brass, triple chrome-plated and include built-in 1.6 GPM flow restrictor. The Acorn Logan Wizard Showerhead design provides self-cleaning with every use, and has an adjustable spray pattern from a coarse stream to a fine mist.
Fasteners. Acorn furnishes all exposed tamper-resistant fasteners necessary to complete the on-site shower assembly; however, concealed wall fasteners or anchor shields are not furnished.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Acorn Engineering - Commercial Showers | 288 KB | ||
 | | 470BHC Series - Apex Type 7 Three-Station Shower with Handicap Station, Non-ADA [470BHC | Electronic Valve (eg. Master-Trol, Time-Trol, Piezo Button); 476BHC | Air-Control Pneumatic Valve; 478BHC | ASSE 1016 T/P Balancing Valve] Wide Housing available. | 549 KB | ||
| | Acorn Engineering - Commercial Showers | 221 KB | ||
| | Enviro-Glaze Powdercoating Color Chart - Update Aug 2026 | 291 KB | ||
| | Commercial Showers Brochure (pdf) | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 134 KB |
Specifications
| Product Type | Shower |
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Material | Stainless Steel |
| Mounting | Wall Mounted |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stadium & Arena |
| Park and Recreation Applications | Yes |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | HL | Accessory: Hi - Lo Mounting Brackets for Shower |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | CI | Option: Cycle Interrupt | ||
 | LVR | Option: Lever Handle for Type 2 Shower Valve for Column Shower Valves | ||
 | MV | Option: Metering Air-Control® Valve in Shower Riser | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | CSH | Option: Conical Shower Head | ||
 | CSH-WSA | Secur-Care® Ligature-Resistant, WaterSense Shower Head, Panel Mounted | ||
 | F2.0 | Option: Flow Control 2.0 GPM | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint | ||
 | BS | Option: Built-In Liquid Soap System | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FG | Option: Fourteen Gauge Type 304 Stainless Steel | ||
 | RD | Option: Recessed Soap Dish | ||
 | SC (Shower) | Option: Supply Cover for Shower | ||
 | SLPB | Option: Sloped Bottom Housing | ||
 | SLPT | Option: Sloped Top Housing | ||

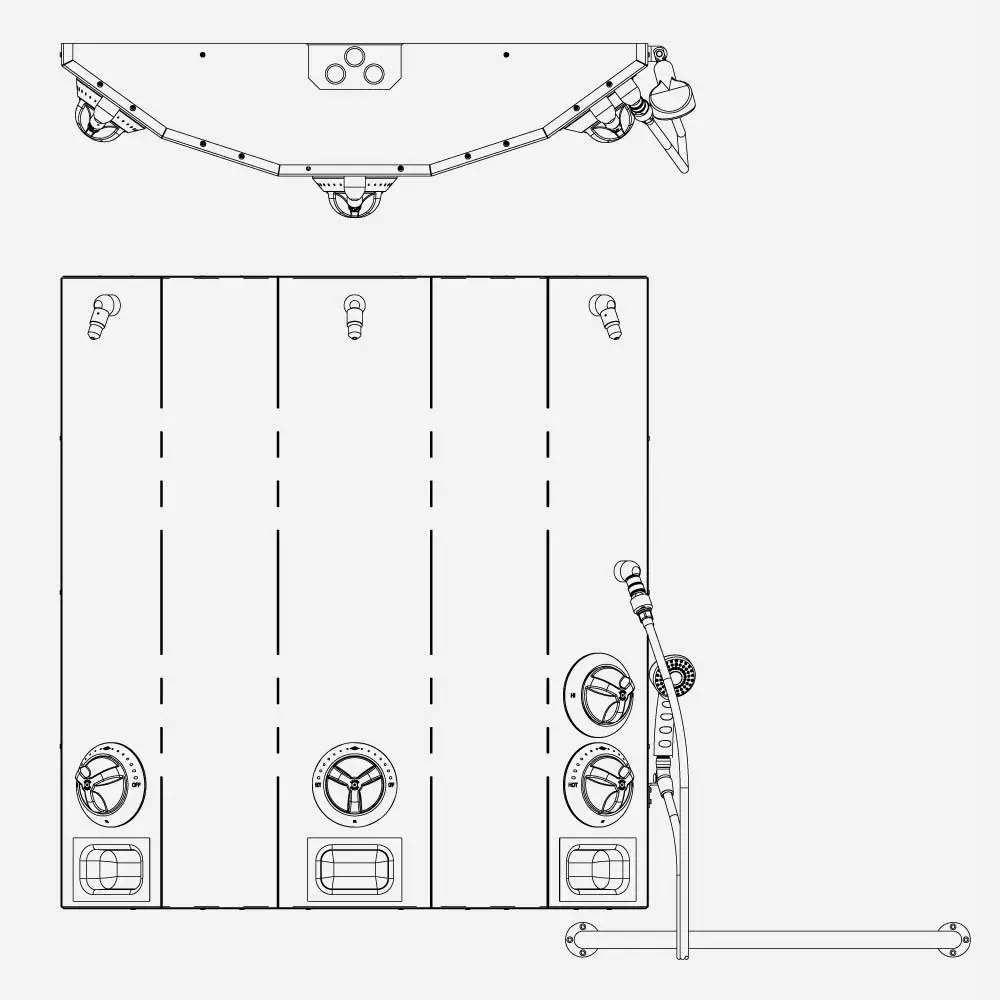

 | WH | Option: Wide Housing | ||
 | FH | Option: Fixed Head in Lieu of Handshower | ||
 | LGB (Shower) | Option: Less Grab Bar on Shower | ||
 | LRD | Option: Less Recessed Soap Dish |
Models

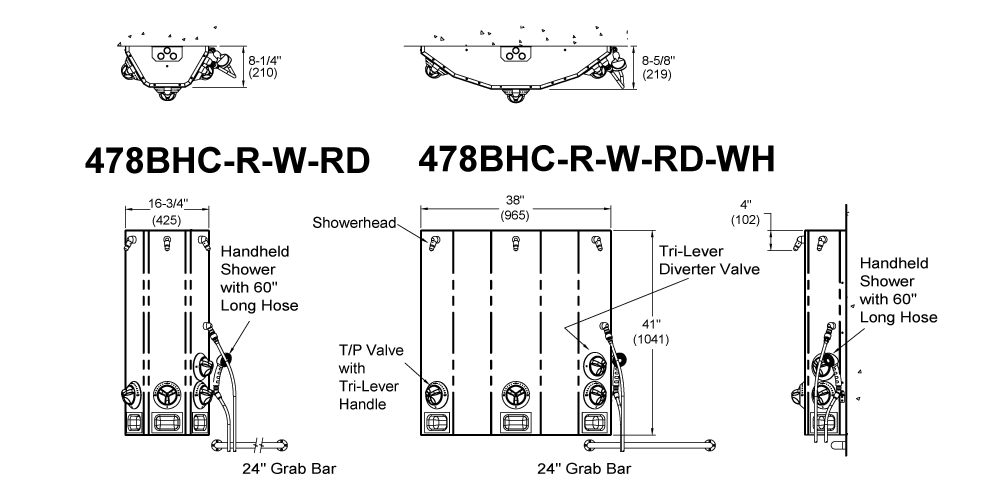

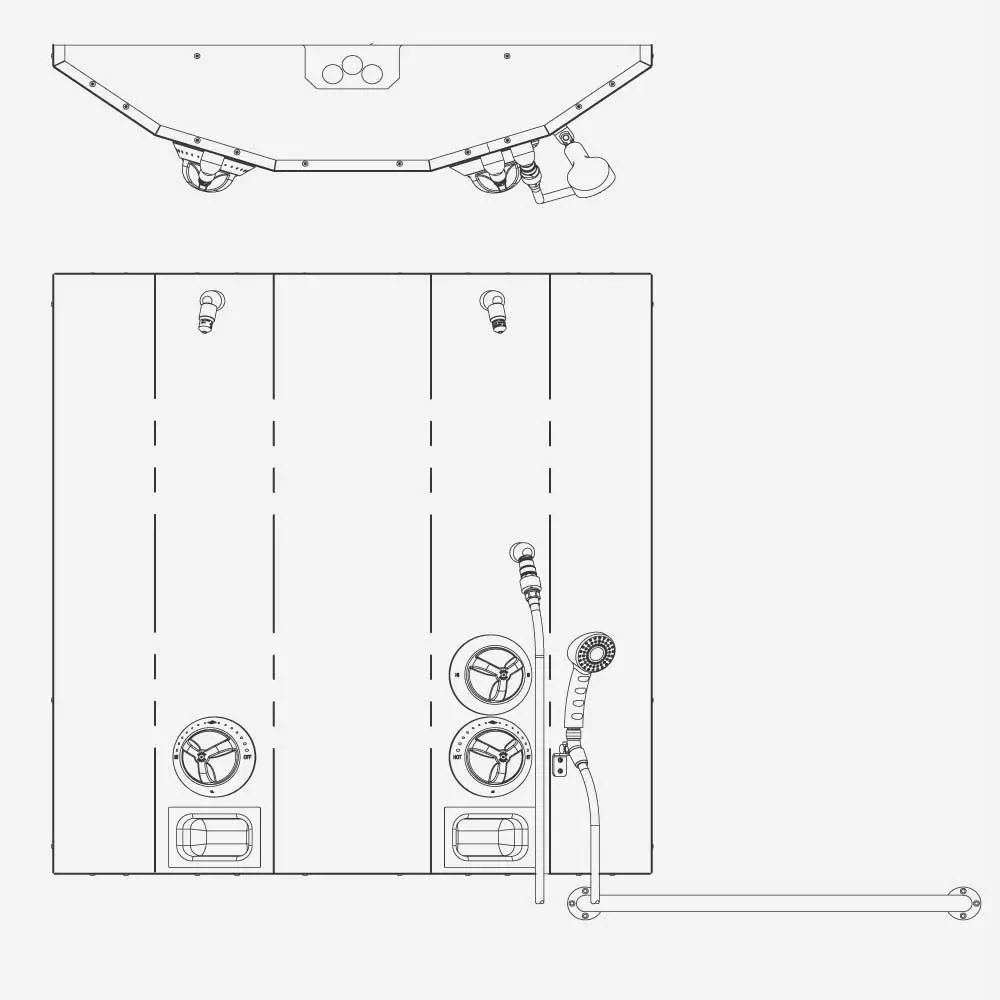

Model Number 478BHCR-W-RD
Temperature-Pressure Balancing Mixing Valve with Ligature Resistant Tri-Lever Handle (ASSE 1016 Compliant) Patent No D697.591 and 10,474,170 B2 Valve with Lever Handle also available
Model Number 470BHC
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1, -PPZ1
