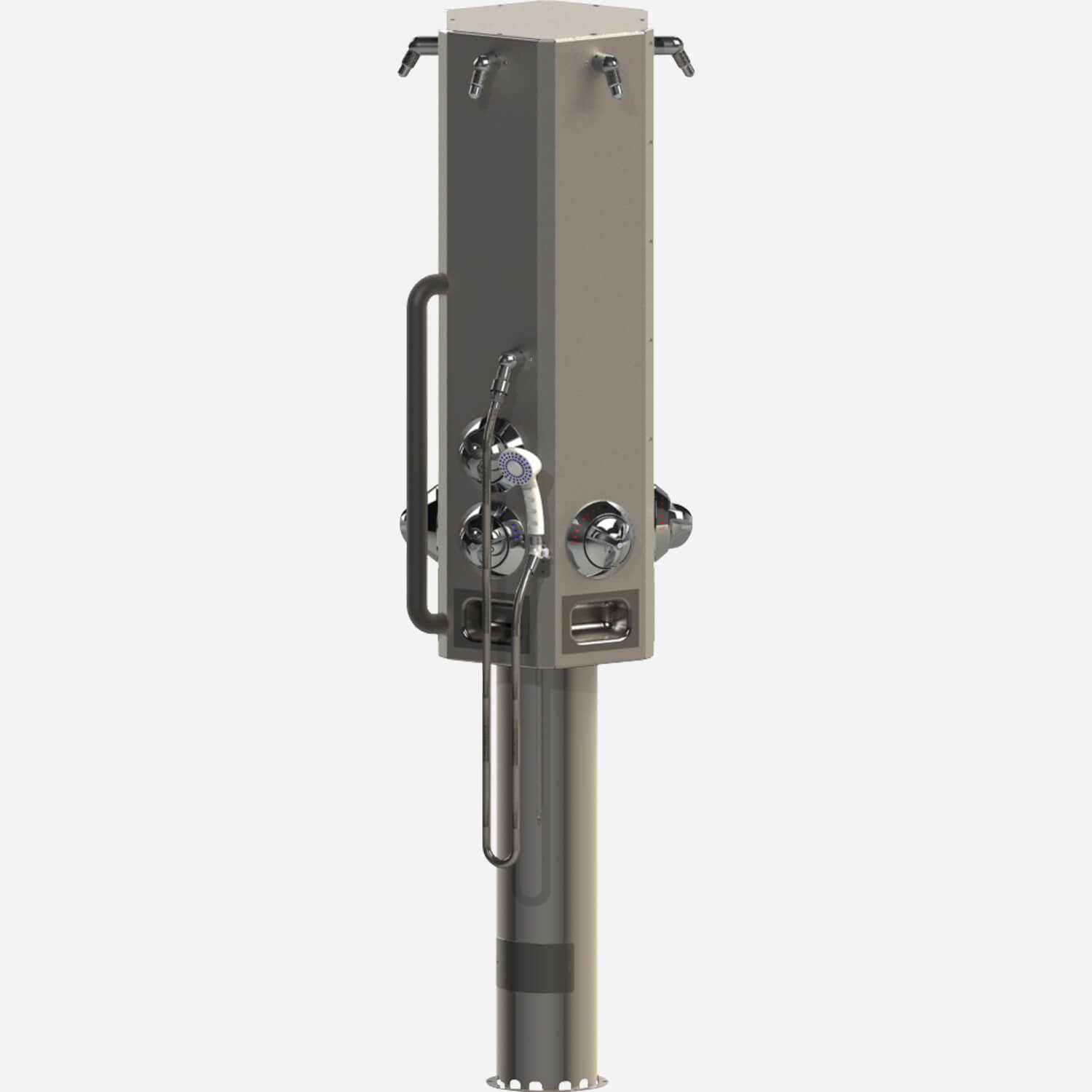

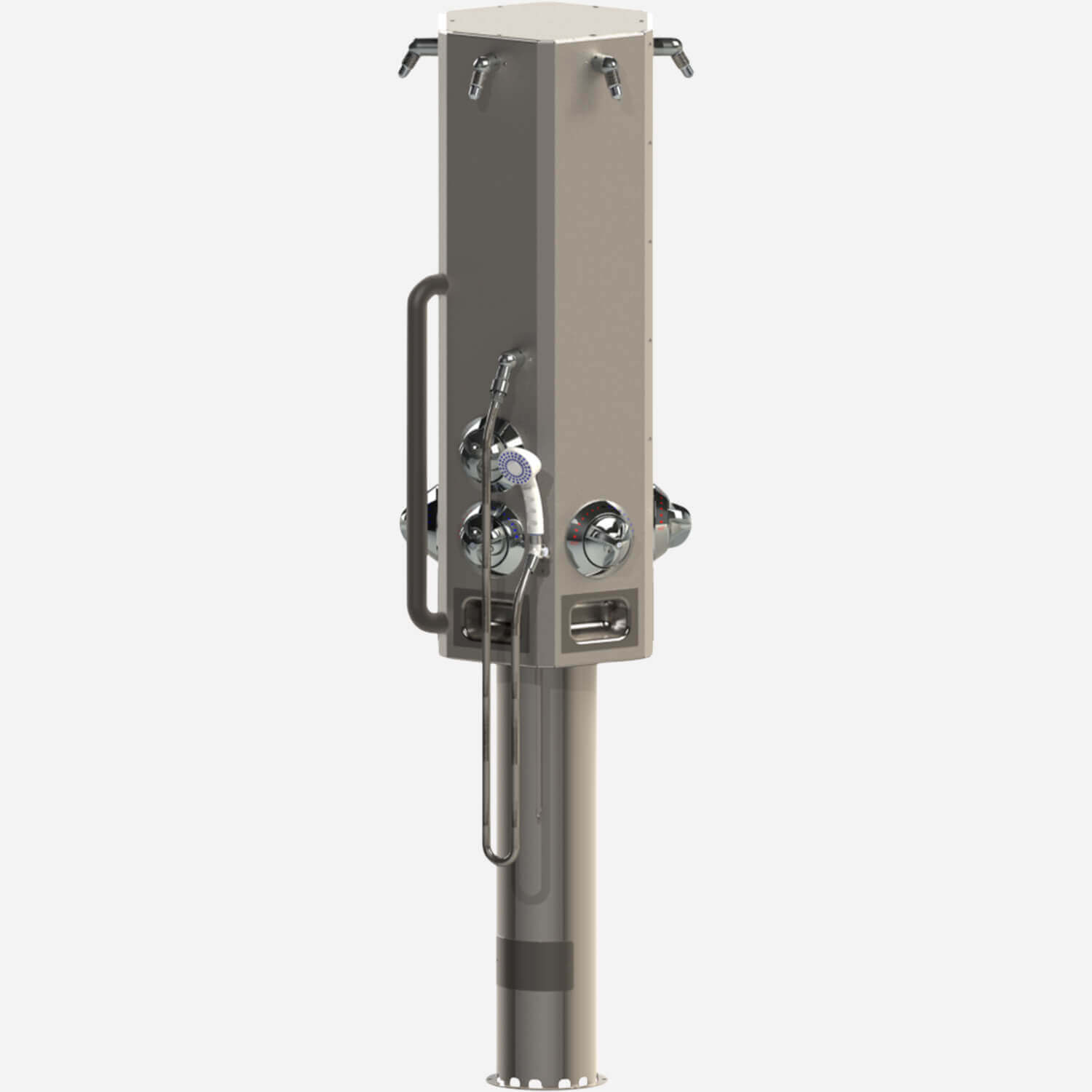

Barrier-Free (Non-ADA) Classic Stainless Steel Column Shower
Column shall be 14 gauge, type 304 stainless steel with satin finish. Column shall be factory pre-piped and hydrostatically tested to 150 PSI. Drain base shall be heavy cast iron with a rust preventative coating. Provide handicap station complete with diverter valve, fixed upper head, hand shower, vertical grab bar and recessed soap dish. Shower head discharge height shall be (specify).
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base with Dome Grate | 2 MB | ||
| | Classic Handicap (Non-ADA) Column Shower - Two, Three, Four, Five or Six Station [626HC, 636HC, 646HC, 656HC, 666HC, 628HC, 638HC, 648HC, 658HC, 668HC, 620HC, 630HC, 640HC, 650HC, 660HC] | 217 KB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base with Dome Grate for Center Vent | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Bottom Supply Shower - Drain Base for Center Vent | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base with Dome Grate | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base with Dome Grate for Center Vent | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base | 2 MB | ||
| | 600, 600HC, 700, 700HC Series Top Supply Shower - Drain Base for Center Vent | 2 MB | ||
| | Enviro-Glaze Powdercoating Color Chart - Update Aug 2026 | 291 KB | ||
| | Commercial Showers Brochure (pdf) | 2 MB | ||
 | | 6 Station Classic Column Shower with T-P Balance Mix Valve with Tri-Lever Handle (ASSE 1016 Compliant); One Station is Handicap (Non-ADA) with Diverter, Handheld Shower Rec. Soap Dish, 24" Grab Bar, B21 Config, Optional Rec. Soap Dish on other stations | 40 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
| | T/P Valve Replace Cartridge & Trim for Valves prior to June 2014 | 130 KB | ||
| | Shower-Ware Multi-Stream Head with Universal Ball Joint Suffix -BA-MSH-Y | 70 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru Present | 333 KB | ||
| | Shower Heads: Shower Nozzle Assembly - Rigid Head | 132 KB | ||
| | Shower Heads: Standard Shower Head | 58 KB | ||
| | Shower-Ware - Column Drains: 3" No Hub-Vent Off Drain Base Assembly | 95 KB | ||
| | Shower-Ware - Column Drains: 4" No Hub-Vent Off Drain Base Assembly | 94 KB | ||
| | Shower-Ware - Column Drains: 3" No Hub-Vent Off Drain Base Dome Grate | 109 KB | ||
| | Shower-Ware - Column Drains: 4" No Hub-Vent Off Drain Base Dome Grate | 110 KB | ||
| | Shower-Ware - Cartridges: Concealed Flo-Cloz Cartridge | 157 KB | ||
| | Shower-Ware - Cartridges: T/P Temperature/Pressure Balancing Mixing Valve Cartridge/Checkstops | 493 KB | ||
| | Shower-Ware - Cartridges: Meter-Matic Cartridge (Plastic) | 72 KB | ||
| | Shower-Ware - Valves: Diverter Valve thru January 2014 | 130 KB | ||
| | Shower Heads - Nozzle Options: Multi-Stream Shower Head w/ Universal Ball Joint | 74 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 134 KB |
Specifications
| Brand | Acorn ConTrols® Inside, Shower-Ware® |
| Vandal Resistant | Moderate |
| Institutional Applications | Correctional, Educational Building |
| Commercial Applications | Stadium & Arena, Health club |
| Park and Recreation Applications | Yes |
| Product Features | Classic Shower - multi-sided control panel on cylindrical pedestal, Handicap (Non-ADA) |
| Product Type | Shower |
| Patent | D697,591 (for -8 Style Valve), (D) Acorn Engineering Co. |
| Mounting | Pedestal |
| Accessibility | Barrier-Free -- Not ADA |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SC (Shower) | Option: Supply Cover for Shower | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | B11 | Option: Shower Drain Base Bottom Supply with Dome Grate | ||
 | B15 | Option: Shower Drain Base Bottom Supply with Dome Grate for Center Vent | ||
 | B21 | Option: Shower Drain Base Bottom Supply | ||
 | B25 | Option: Shower Drain Base Bottom Supply for Center Vent | ||
 | T11 | Option: Shower Drain Base Top Supply with Dome Grate | ||
 | T15 | Option: Shower Drain Base Top Supply with Dome Grate for Center Vent | ||
 | T21 | Option: Shower Drain Base Top Supply | ||
 | T25 | Option: Shower Drain Base Top Supply for Center Vent | ||
 | CI | Option: Cycle Interrupt | ||
 | LVR | Option: Lever Handle for Type 2 Shower Valve for Column Shower Valves | ||
 | FX | Option: Hand Shower | ||
 | MSH | Option: Multi-Stream, Ball Joint Shower Head | ||
 | P | Option: Penal Shower Head | ||
 | Y | Option: Universal Ball Joint | ||
 | YY | Option: Lockable Universal Ball Joint | ||
 | BDF | Option: Bradley® Drain Adapter Flange | ||
 | FO | Option: 4" No-Hub Waste Outlet | ||
 | IC (Column Shower) | Option: Inside Caulk Waste, 3-inch (Column Shower) | ||
 | LD | Option: Less Drain Slots | ||
 | BS | Option: Built-In Liquid Soap System | ||
 | CA | Option: Ceiling Anchor Plate | ||
 | CF | Option: Adjustable Column Flange | ||
 | DS Series | Circular Privacy Compartment for Column Showers | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FS | Option: Foot Spray | ||
 | LCD | Option: Less Circular Soap Dish on Column Shower | ||

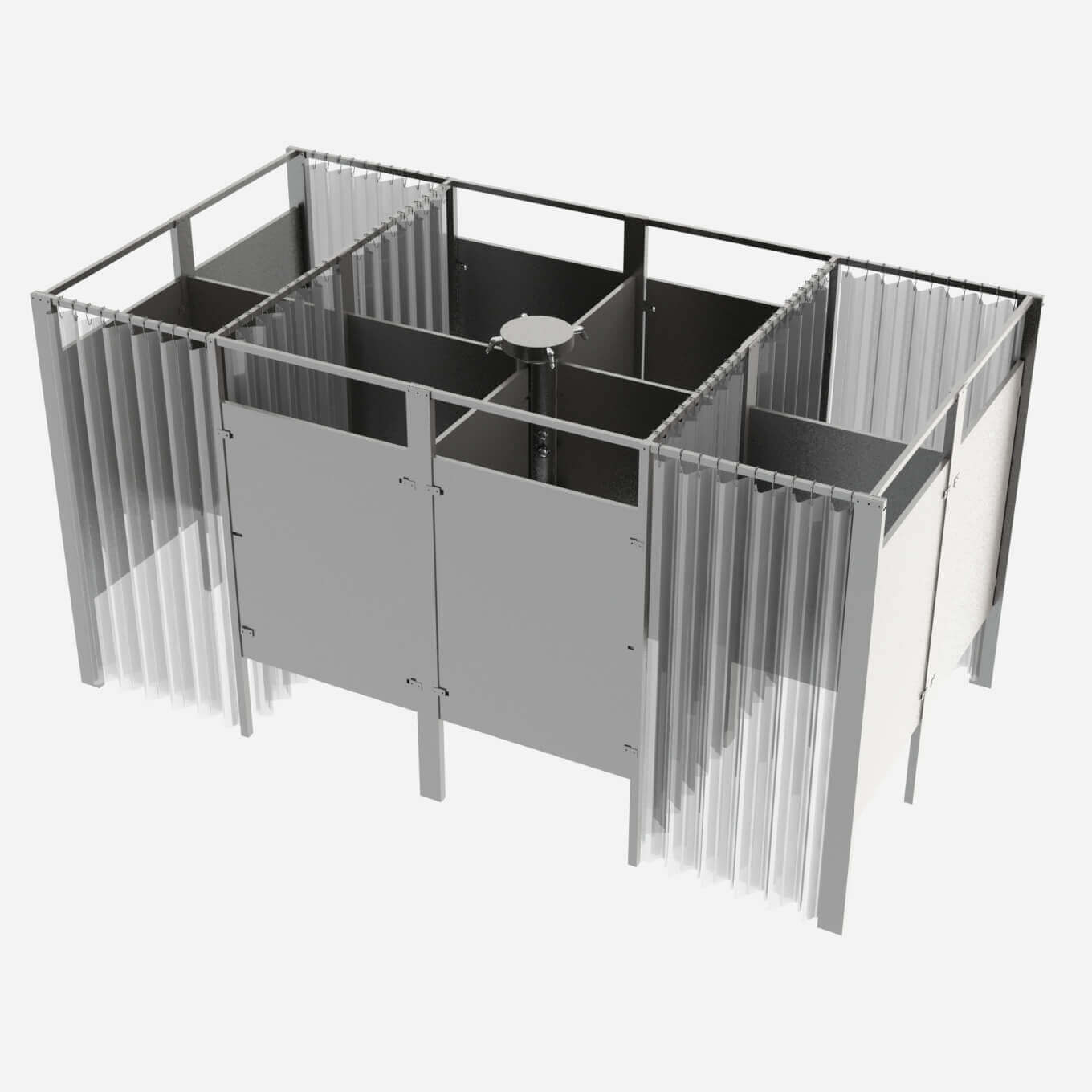

 | MS Series | Modular Privacy Compartment for Commercial Showers | ||
 | VC (Shower) | Option: Valve Cover for Shower |
Models
Shower Heads are solid brass, triple chrome-plated and include a 1.6 gallons (6 liter) per minute flow restrictor. The Acorn Logan Wizard Shower Head design provides self-cleaning with every use, and has an adjustable spray pattern from a coarse stream to a fine mist.
Handicap Station is located at Station #1 and includes a Patented Ligature Resistant ADA Compliant Tri-Lever Handled (Standard with T/P valve only) diverter valve for hand shower and fixed upper head. Hand shower includes 60" long stainless steel hose and mounting bracket. Diverter valve is located at 48" above the floor (6'-0" discharge). Handicap station includes a welded vertical 24" grab bar and a recessed soap dish. Shower does not conform with ADA Accessibility Guidelines
Model Number 6__6HC
Air-Control Valve,
Single Temperature Metering
Model 626HC - 2 Station
Model 636HC - 3 Station
Model 646HC - 4 Station
Model 656HC - 5 Station
Model 666HC - 6 Station
Model Number 6__8HC
Temperature-Pressure Balancing Mixing Valve
with Ligature Resistant Tri-Lever Handle
(ASSE 1016 Compliant)
Patent No D697.591, 10,474,170 B2
Valve with Lever Handle also available
Model 628HC - 2 StationModel 638HC - 3 StationModel 648HC - 4 StationModel 658HC - 5 StationModel 668HC - 6 Station
ELECTRONIC VALVES
Model 620HC - 2 Station; Model 630HC - 3 Station; Model 640HC - 4 StationModel 650HC - 5 Station; Model 660HC - 6 Station
Single Temperature Electrical Valve
Specify: -MTP1, -MTPP1, -EVS1, -EVSP1, -MVC1,-MVC1-CI, -PPZ1
SUPPLY/DRAIN TYPE
Top Supply with
-T11 | Drain Base with Dome Grate | install
-T15 | Drain Base with Center Vent, Drain Grate | install
-T21 | Drain Base | install
-T25 | Drain Base with Center Vent | install
Bottom Supply with
-B11 | Drain Base with Dome Grate | install
-B15 | Drain Base with Center Vent, Drain Grate | install
-B21 | Drain Base | install
-B25 | Drain Base with Center Vent | install
