Model 3771

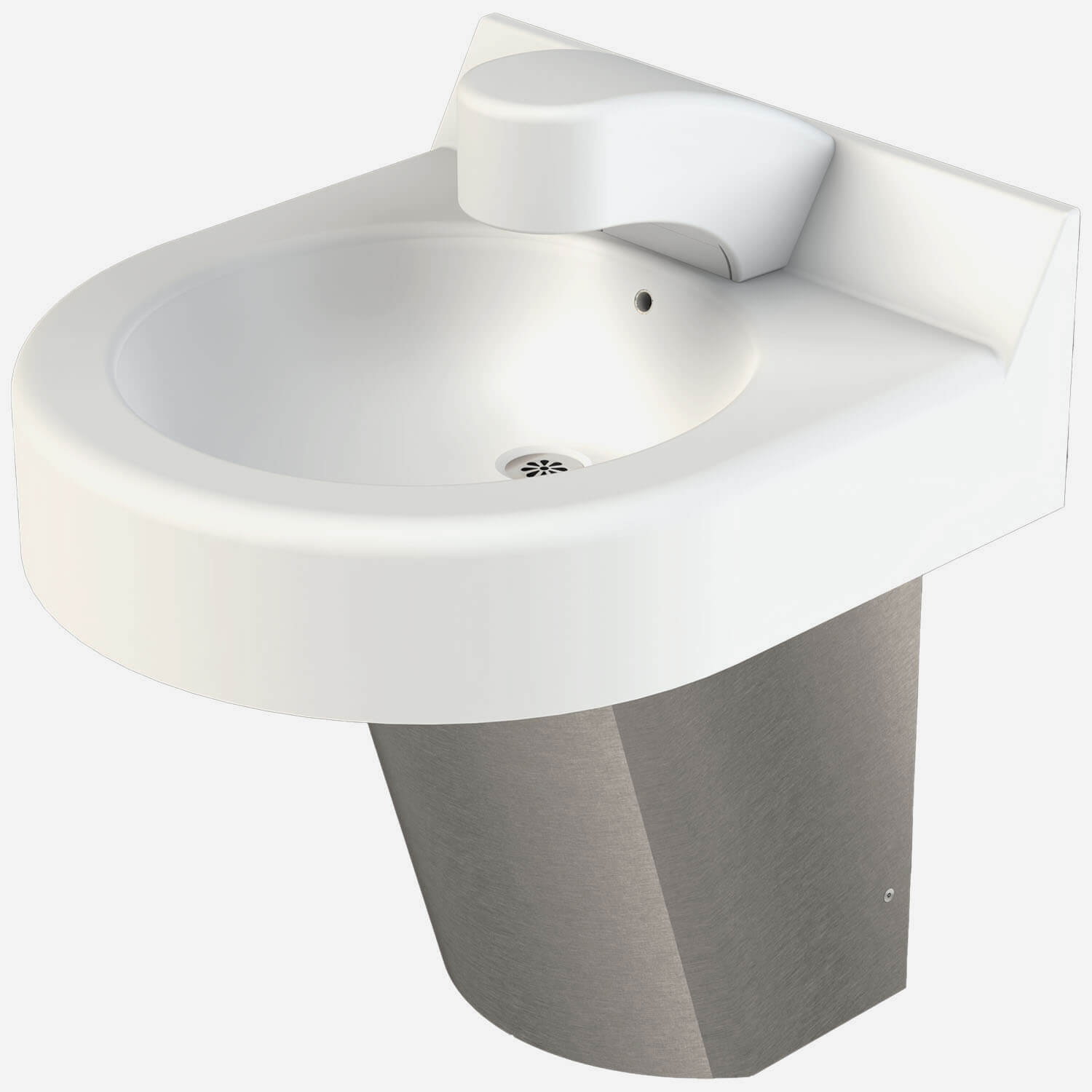

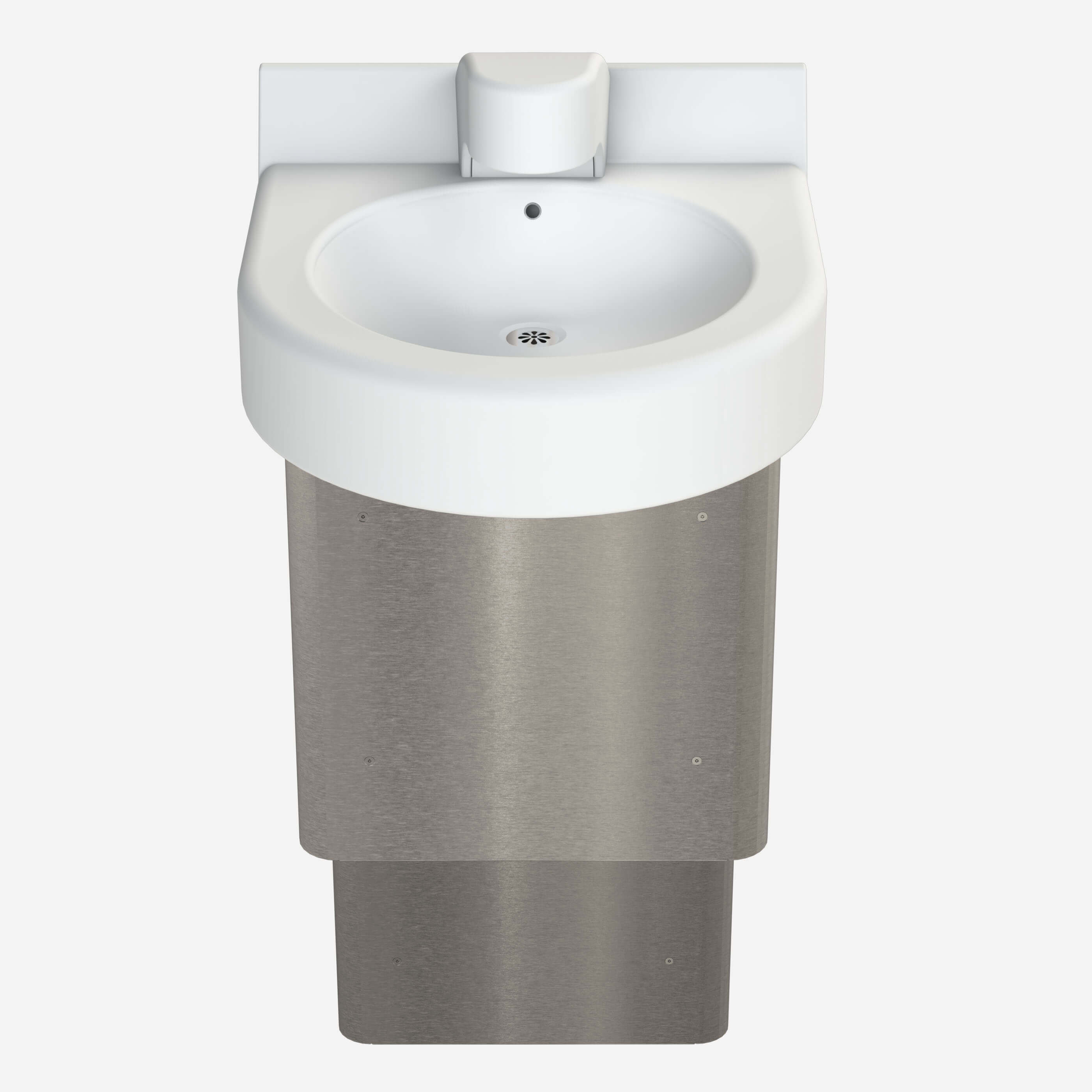

One Station, Curve Front, Cast Solid Surface Wash Basin
Perfect for high-traffic institutional, commercial and public applications, this curve-front one-station hand wash basin is made from environmentally-friendly Corterra®, which also offers design flexibility and durability. It features a wall-mount, off-floor or on-floor waste outlet configurations, and is ADA compliant when installed properly.
Mixing Valve delivers tempered water flow by compensating for pressure and temperature fluctuations and is ASSE 1070 compliant. Valve is to be field set to 105° Fahrenheit and includes Strainers and Integral Checks. Operating range is 30 PSI to 100 PSI.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | One Station Curved Front Cast Solid Surface (Corterra®) Wash Basin | 0 | 2 MB | ||
| | One Station Curved Front Cast Solid Surface (Corterra®) Wash Basin [3771-1 | Off-Floor, Wall Waste; 3771-2 | On-Floor, Wall Waste] | 0 | 230 KB | ||
 | | Acorn Meridian Corterra Solid Surface Basins [3752-HLL, 3752-HLR, 3753-HLH, 3753-LHL, 3761, 3762, 3763, 3764,3771-1,3772-2-SES, 3773-3, 3791, 3792, 3793] | 0 | 408 KB | ||
 | | One Station, Off-Floor, Hand Operation,, Extended Left & Right Countertop | 0 | 404 KB | ||
| | One Station, Off-Floor, Hand Operation,, Extended Left & Right Countertop | 0 | 140 KB | ||
| | One Station Curved Front Solid Surface Wash Basin Off-Floor/Wall Waste | 0 | 272 KB | ||
| | One Station Curved Front Solid Surface Wash Basin Off-Floor/Wall Waste | 0 | 156 KB | ||
| | Corterra? Cast Solid Surface Curved Front Basin (1, 2, 3 Station) | 0 | 1 MB | ||
| | Corterra? Cast Solid Surface Curved Front Basin (1, 2, 3 Station) | 0 | 742 KB | ||
| | Enviro-Glaze Powdercoating Color Chart | 0 | 2 MB | ||
 | | One Station, Off-Floor, Sensor Operation | 0 | 233 KB | ||
| | One-Station, Off-Floor, Sensor Operation, Scalloped Enclosure | 0 | 247 KB | ||
| | Who we are, Our History, Morris Group International Today | 0 | 7 MB | ||
| | Overview of MGI Divisions | 0 | 718 KB | ||
| | The best ways to stay healthy are also the simplest: hand washing with soap and water and staying hydrated. | 0 | 3 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 0 | 138 KB | ||
| | Valves: Air-Control™ Metering Servomotor Assembly | 0 | 124 KB | ||
| | Stops: Plastic Air-Control® Check Stop Assembly | 0 | 74 KB | ||
| | Trims: Push Button Assembly | 0 | 103 KB | ||
| | Deck-Mounted Wash Basin Soap Equipment: Deck Mounted Soap Dispenser | 0 | 110 KB | ||
| | Shower-Ware - Cartridges: Pressure Balance Cartridge/Stem Assembly | 0 | 104 KB | ||
| | Wash-Ware - Valves: Thermostatic Mixing Valve, Washfountain -MXT | 0 | 71 KB | ||
| | Waste Connections and Thru-Wall Extensions: Waste Piping Detail for Meridian Curved Front Corterra Basins Models 3771, 3772, 3773 | 0 | 89 KB |
Specifications
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Meridian, Acorn ConTrols® Inside |
| Material | Corterra® Solid Surface |
| Mounting | Wall Mounted |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Bowl Shape | Round |
| Compliance | ADA Compliant, Federal Public Law 111-380, UL Greenguard |
| Overall Dimensions | 20" (Side-to-Side) x 21.5" (Front-to-Back) |
| Stations-Users | 1 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | -VP | Option: Black Vinyl Clad Enclosure | ||
 | 1 (Hand Wash) | Option: Off-Floor, Wall Outlet Hand Wash Station | ||
 | 2 (Hand Wash) | Option: On-Floor, Wall Outlet Hand Wash Station | ||
 | CSG | Option: Centerset Gooseneck Spout | ||
 | ECL | Option: Extended Countertop Left Hand | ||
 | ECR | Option: Extended Countertop Right Hand | ||
 | H (Hand Wash) | Option: Hand Operation for Hand Wash Station | ||
 | H1 | Option: Single Hole Punch for Valve by Others | ||
 | H24 | Option: Two Hole Punch 4" Center for Valve by Others | ||
 | H34 | Option: Three Hole Punch 4" Centers for Valve by Others | ||
 | H38 | Option: Three Hole Punch 8" Center for Valve by Others | ||
 | LSA | Option: Left-Hand Side Apron | ||
 | LSS | Option: Left-Hand Side Splash | ||
 | OCC | Option: Corterra® Solid Surface | ||
 | PDM | Option: Metering Liquid Soap Dispenser | ||
 | PPZ | Option: Programmable Piezo Button | ||
 | RLD | Option: "D" Shape Basin Less Valves | ||
 | RSA | Option: Right-Hand Side Apron | ||
 | RSS | Option: Right-Hand Side Splash | ||
 | SES | Option: Scalloped Enclosured Style | ||
 | SO | Option: (Hands-Free) Sensor Operation | ||
| SO-BAT | Option: (Hands-Free) Sensor Activated - Battery Powered | ||
 | SPX | Option: 16 Gage Stainless Steel Enclosure | ||
 | ST | Option: Single Temperature |
Models
Sample configurations for 3771 One Station

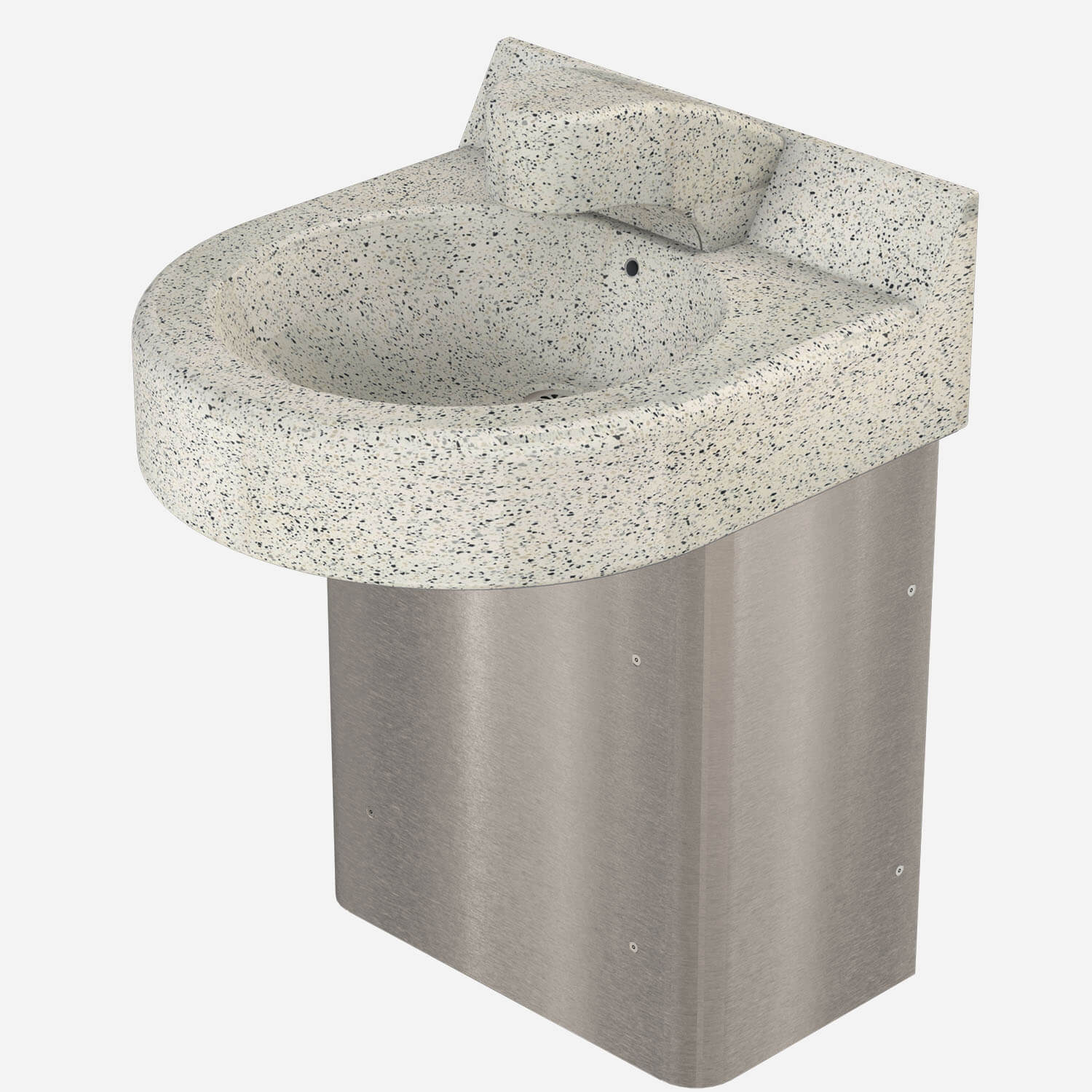

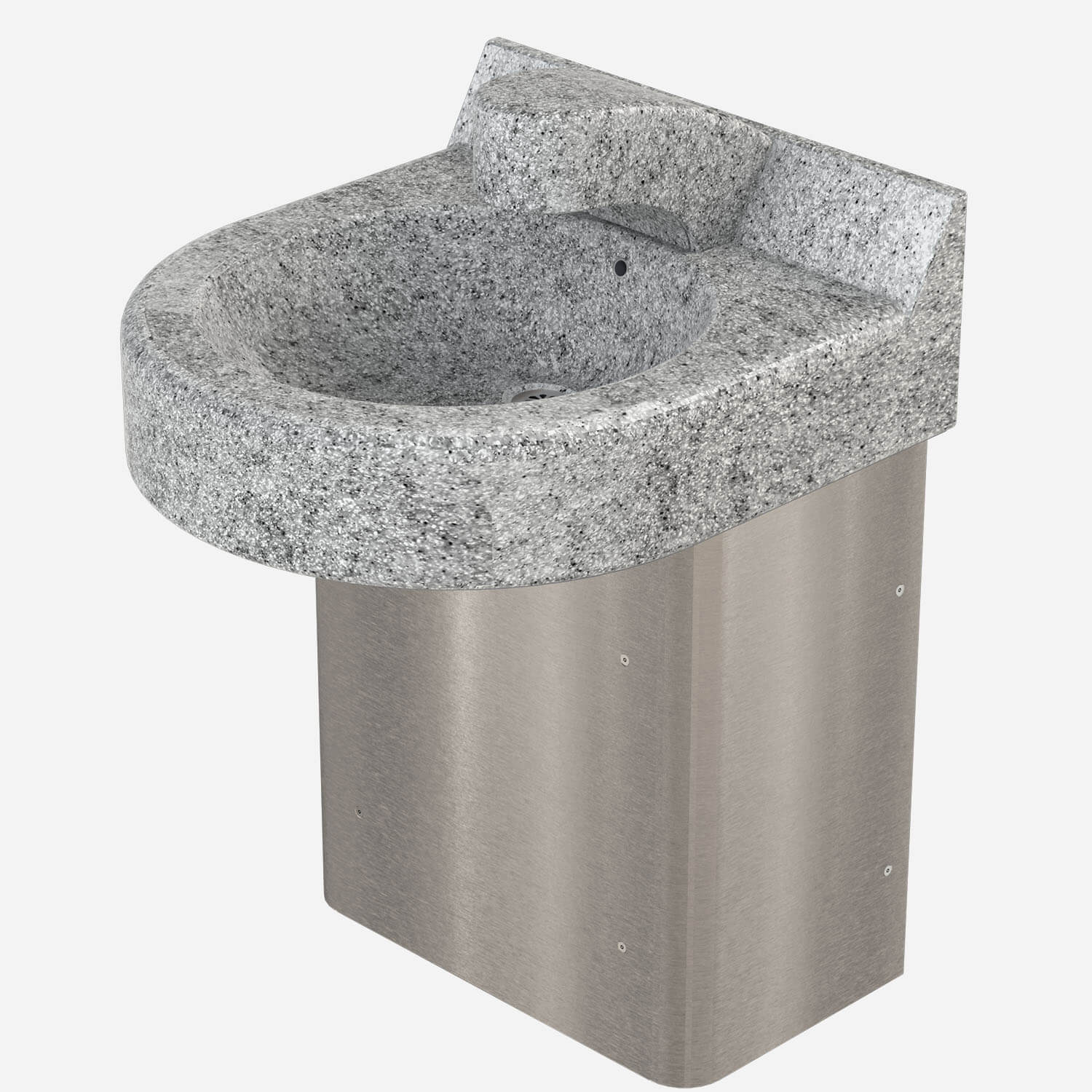

3772-1-SPX-OCC1A
Off-Floor, Wall Waste,
Stainless Steel Enclosure
Smokey Granite Corterra
3772-1-SES-OCC11M
Off-Floor, Wall Waste
Scallopped Enclosure
Blanco Matte Corterra
3772-2-SPX-OCC11M
On-Floor, Wall Waste
Stainless Steel Enclosure
Blanco Matte Corterra
Product Variations
Image | Model ID | Description |
|---|---|---|
 | 3772 | Two Station, Curve Front, Solid Surface Wash Basin |
 | 3773 | Three Station, Curve Front, Cast Solid Surface Wash Basin |
