Secur-Care® Ligature-Resistant, Pushbutton Stainless Steel Security Shower

Find A Representative
Model LR1741 Series
Installation Instructions
4 available
Submittal
Submittal LR1741 Series Shower (pdf)
LR1741 Series Preview
Model LR1741 Series

Secur-Care® Ligature-Resistant, Pushbutton Stainless Steel Security Shower

Learn More on Ligature-Resistant Fixtures

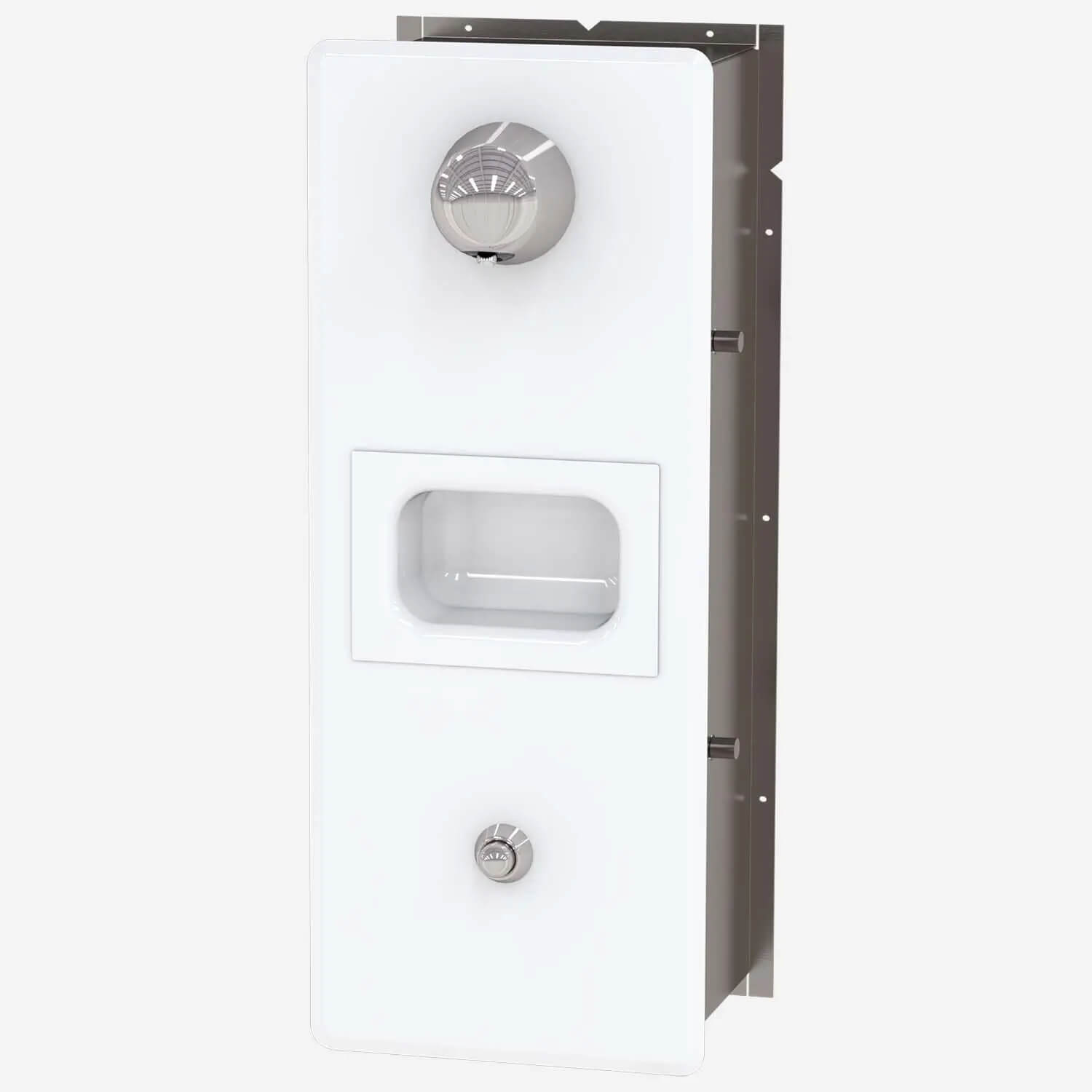

Conical showerhead and provided valve choices contribute to the ligature resistant features to this shower. T hese showerheads and valves are mounted on a 20" (508 mm) high, rear mounted panel. Back of shower is provided with anchor tappings. Optional Wall Sleeve or Metal Template is recommended for all installations for required wall openings. Fixture is fabricated from 14 gage, type 304 stainless steel with a satin finish.

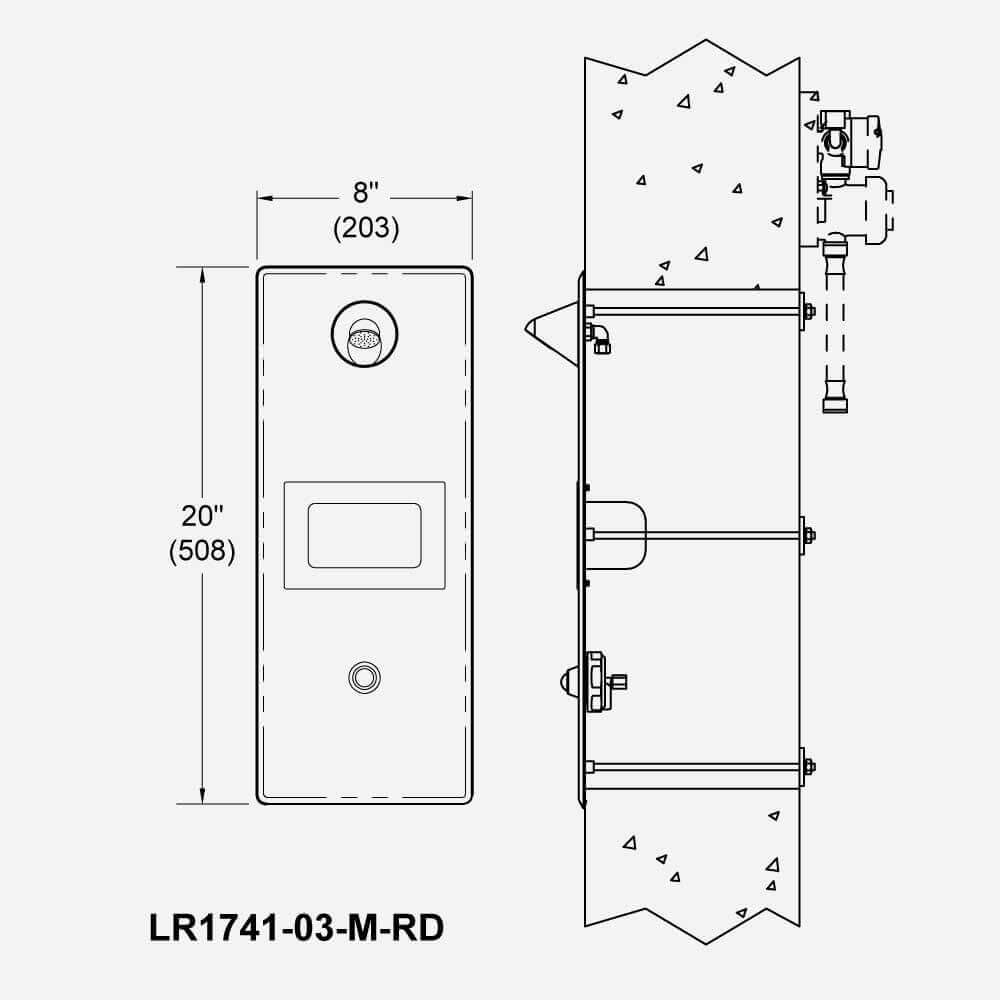

Ligature Resistant Shower is arranged to be installed on finished wall and serviced from an accessible pipe chase. The mounting plate is 20" (508 mm) high. Single Temperature Showers are 8" (203 mm) while Showers with Hot & Cold buttons are 10" (254 mm)

Downloads

Resource Type
Title
Description
File Size
Action
PDF icon
Installation Instructions
PDF icon
Installing LR1741-03-M Shower (pdf)
Ligature Resistant Flush-Mounted Stainless Steel Security Shower with Metered Single Temperature Air-Control Pneumatic Valve344 KB
PDF icon
Submittals
PDF icon
Submittal LR1741 Series Shower (pdf)
Ligature-Resistant Flush-Mounted Pushbutton Stainless Steel Security Shower578 KB
RFA icon
BIM/CAD/Revit
RFA icon
LR1741-03-RD Shower (rfa)
Ligature Resistant Flush-Mounted Pushbutton Stainless Steel Security Shower with Single Temperature Pushbutton Air-Control Valve and Recessed Soap Dish912 KB
RFA icon
BIM/CAD/Revit
RFA icon
LR1741-03-RD Shower (dwg/zip)
Ligature Resistant Flush-Mounted Pushbutton Stainless Steel Security Shower with Single Temperature Pushbutton Air-Control Valve and Recessed Soap Dish164 KB
PDF icon
Installation Instructions
PDF icon
Install Guide LR1741-MVC1 Shower (pdf)
Ligature Resistant Flush-Mounted Stainless Steel Security Shower with Single Temperature Time-Trol Valve1 MB
PDF icon
Installation Instructions
PDF icon
Installing LR1741-04-M Shower (pdf)
Ligature Resistant Flush-Mounted Stainless Steel Security Shower with Metered Hot & Cold Air-Control Pneumatic Valve348 KB
PDF icon
Installation Instructions
PDF icon
Installing LR1741-MVC2 Shower (pdf)
Ligature Resistant Flush-Mounted Stainless Steel Security Shower with Hot & Cold Time-Trol Valve1 MB
PDF icon
Brochures/Flyers
PDF icon
Secur-Care® Ligature-Resistant Brochure (pdf)
Secur-Care® Ligature-Resistant Brochure (pdf)3 MB
PDF icon
Brochures/Flyers
PDF icon
Secur-Care® Ligature-Resistant Flyer (pdf)
Secur-Care® Ligature-Resistant Flyer (pdf)458 KB
PDF icon
Brochures/Flyers
PDF icon
MGI Brands Flyer (pdf)
Overview of MGI Divisions718 KB
PDF icon
Brochures/Flyers
PDF icon
Commercial Showers Brochure (pdf)
Commercial Showers Brochure (pdf)2 MB
PDF icon
Brochures/Flyers
PDF icon
MGI Corporate Brochure (pdf)
Who we are, Our History, Morris Group International Today27 MB
PDF icon
Technical Data Sheets
PDF icon
Cleaning and Care Guide (pdf)
Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo1 MB
Video icon
Videos
Video icon
Video: Adjusting Stop Limits on SV16 Valve
Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub.134 KB

Specifications

BrandSecur-Care®
Material14-Gauge Stainless Steel
MountingFlush Mounted, Rear-Chase Mounted
Fixture Width10", 8"
Product TypeShower
Product FeaturesLigature-Resistant Design, Conical Showerhead(s)
Ligature ResistantYes
ComplianceLigature-Resistant

Options

Accessories

Model
Description
Downloads
Accessory: Wall Sleeve
SW
Accessory: Wall Sleeve

Miscellaneous

Model
Description
Downloads
Option: Single Temperature Metering Air-Control® Pneumatic Valve
03-M
Option: Single Temperature Metering Air-Control® Pneumatic Valve
Option: Hot & Cold Metering Air-Control® Pneumatic Valve
04-M
Option: Hot & Cold Metering Air-Control® Pneumatic Valve
Option : Lead-Free Brass Body Valve
BRS
Option : Lead-Free Brass Body Valve

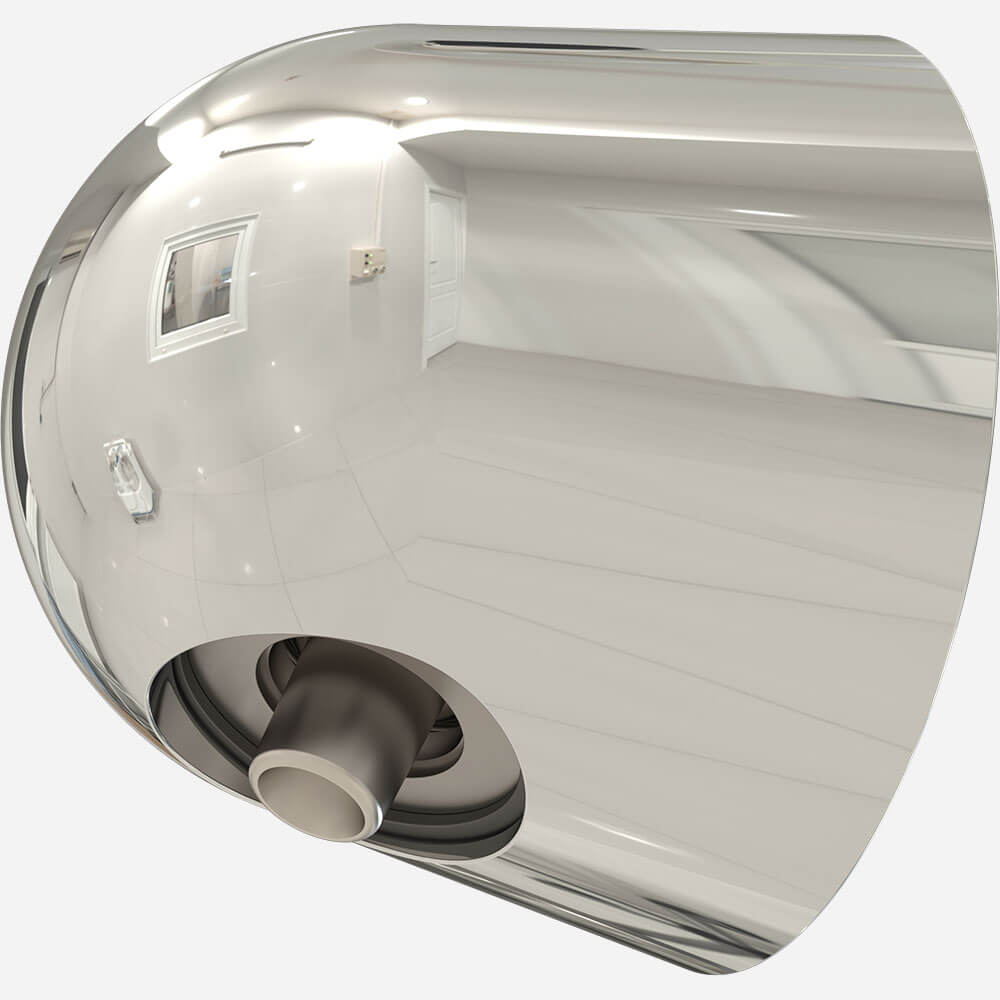

Option: Ligature-Resistant Conical Shower Head with Swivel Nozzle
CSHS
Option: Ligature-Resistant Conical Shower Head with Swivel Nozzle
Option: Enviro-Glaze® Powder Coating
EG
Option: Enviro-Glaze® Powder Coating
Option: Manifolded Valves, 2 Set
MA2
Option: Manifolded Valves, 2 Set
Option: Metal Template
MT
Option: Metal Template
Single Temperature Valve Application Time-Trol®
MVC1
Single Temperature Valve Application Time-Trol®
Option: Hot & Cold Valve Application Time-Trol®
MVC2
Option: Hot & Cold Valve Application Time-Trol®
Option: Single Temperature Programmable Piezo Button
PPZ1
Option: Single Temperature Programmable Piezo Button

Models

Ligature Resistant Valve choices include:
  • -03-M- Air-Control, Single Temperature, Metering
  • -04-M- Air-Control, Hot & Cold, Metering
  • -EVS1- Master-Trol System - Single Temp
  • -EVSP1- Master-Trol System with Single Temp Piezo Pushbutton
  • -EVS2- Master-Trol System - Hot & Cold
  • -EVSP2- Master-Trol System - Hot & Cold Piezo Pushbuttons
  • -MTP1- Master-Trol Plus System - Single Temp
  • -MTPP1- Master-Trol Plus System with Single Temp Piezo Pushbutton
  • -MTP2- Master-Trol Plus System - Hot & Cold
  • -MTPP2- Master-Trol Plus System - Hot & Cold Piezo Pushbuttons
  • -MVC1- Time-Trol System- Single Temp
  • -MVC2- Time-Trol System- Hot & Cold
  • -PPZ1 Programmable Piezo Button - Single Temp
  • -PPZ2 Programmable Piezo Button - Hot & Cold
All pushbuttons are hemispherical (promoting ligature resistance) unless Piezo buttons are specified.
