Penal-Pak Front Access Wall Shower - CBC (Calif Title 24) and ADA Compliant
The shower is designed to be installed on a finished wall and serviced from the front and includes as standard equipment: Control Valve, Fixed Upper Showerhead, Handheld Shower and Hose, Diverter Valve, and Recessed Soap Dish and Wall Mounting Frame. When installed properly and in accordance with all Shower Stall Type requirements, the unit will conform with the 2019 California Access Compliance Reference Manual with DSA Access Compliance Code Cycle Supplement effective July 1, 2021, and 2010 ADA Standards. Refer to Accessibility Guidelines for complete details.
Downloads
Resource Type | Title | Description | Answers | File Size | Action | |
|---|---|---|---|---|---|---|
 | | Penal-Pak Front Access Wall Shower - CBC (Calif Title 24) and ADA Compliant | 0 | 126 KB | ||
| | Penal-Pak Front Access Wall Shower - CBC (California Title 24) and ADA Compliant | 0 | 427 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 0 | 1 MB |
Specifications
| Brand | Penal-Ware®, Acorn ConTrols® Inside |
| Material | Stainless Steel |
| Material Detail | 14-Gauge Stainless Steel |
| Mounting | Front Access - Security |
| Fixture Width | 16" |
| Accessibility | ADA Compliant, Calif Title 24 |
Options
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 03-M | Option: Single Temperature Metering Air-Control™ Pneumatic Valve | ||
 | 04-M | Option: Hot & Cold Metering Air-Control® Pneumatic Valve | ||
 | 8 (security shower valve) | Option: Temperature/Pressure Mixing Valve for Security Shower | ||
 | 8MV | Option: Temperature Pressure Balancing Valve with Metering Valve in Riser | ||
 | BRS | Option : Lead-Free Brass Body Valve | ||
 | D | Option: Soap Dish | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | EVS1 | Option: Single Temperature Application Master-Trol® | ||
 | EVS2 | Option: Hot & Cold Application Master-Trol® | ||
 | EVSP1 | Option: Piezo Button Single Temperature Application Master-Trol® | ||
 | EVSP2 | Option: Piezo Button Hot & Cold Application Master-Trol® | ||
 | FH | Option: Fixed Head in Lieu of Handshower | ||
 | LDV | Option: Less Diverter Valve | ||
 | LRD | Option: Less Recessed Soap Dish | ||
 | MTP1 | Option: Master-Trol® Plus Single Temperature Valve | ||
 | MTP2 | Option: Master-Trol® Plus Hot & Cold Valve | ||
 | MTPP1 | Option: Master-Trol® Plus Single Temperature Piezo Button Valve | ||
 | MTPP2 | Option: Master-Trol® Plus Hot & Cold Piezo Button Valve | ||
 | MVC1 | Single Temperature Valve Application Time-Trol® | ||
 | PBH | Option: Pushbutton, Hemispherical | ||
 | PPZ1 | Option: Single Temperature Programmable Piezo Button | ||
 | PPZ2 | Option: Hot & Cold Programmable Piezo Buttons | ||
 | PYY | Option: Penal Showerhead with Universal Lockable Joint | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | Y | Option: Universal Ball Joint |
Models
Typical models are shown below
1741CBCFA-8MV-FH-PY
Upper and Lower
Penal Showerhead
with Universal Ball Joint
Controls on Right Side
Upper Control is Diverter;
T/P Balancing Valve with
Metered Air-Control Valve
1741CBCFA-8MV
Upper Penal Showerhead
Lower Handheld Shower
Controls on Right Side
Upper Control is Diverter;
T/P Balancing Valved with
Metered Air-Control Valve

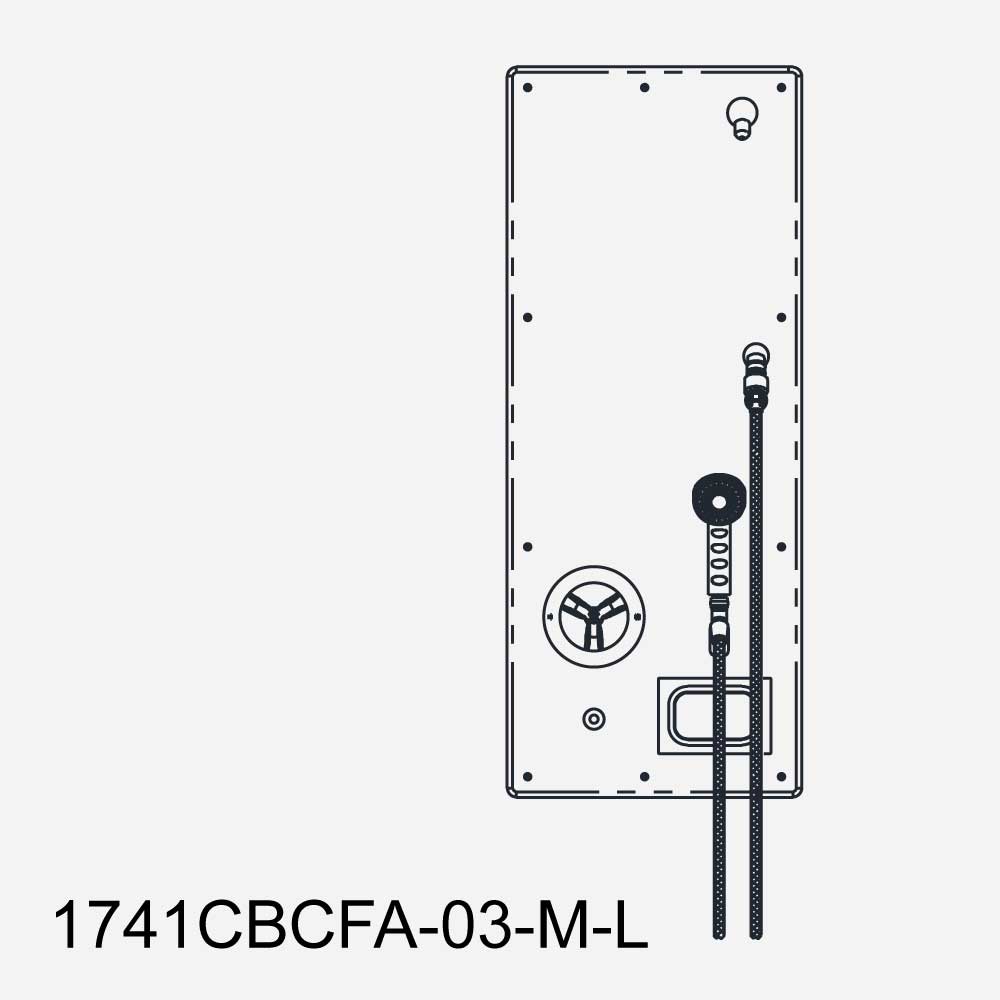

1741CBCFA-03-M-L
Upper Penal Showerhead
Lower Handheld Shower
Controls on Left Side
Upper Control is Diverter;
Lower Pushbutton is
an Air-Control Valve
The model numbers are defined with the valve that is specified for the shower.
Model Number 1741CBCFA-03-M
Air-Control Pneumatic Valve,
Single Temperature Metering
Model Number 1741CBCFA-04-M
Air-Control Pneumatic Valve,
Hot & Cold Metering
Model Number 1741CBCFA-8
ASSE 1016 Compliant Temperature-Pressure Balancing Mixing Valve with ADA Ligature-Resistant Tri-Lever Handle
Patent No D697.591 and 10,474,170 B2
Model Number 1741CBCFA-8MV
ASSE 1016 Compliant Temperature-Pressure Balancing Mixing Valve with ADA Ligature-Resistant Tri-Lever Handle and Pushbutton for Metered Valve
Patent No D697.591 and 10,474,170 B2
Model Number 1741CBC with Electronic Valve
Specify: -MTP1 , -MTPP1 , -EVS1 , -EVSP1 , -MVC1 , -MVC1-CI , -PPZ1 , -EVS2 , -EVSP2 , -MTP2 , -MTPP2 , -PPZ2
