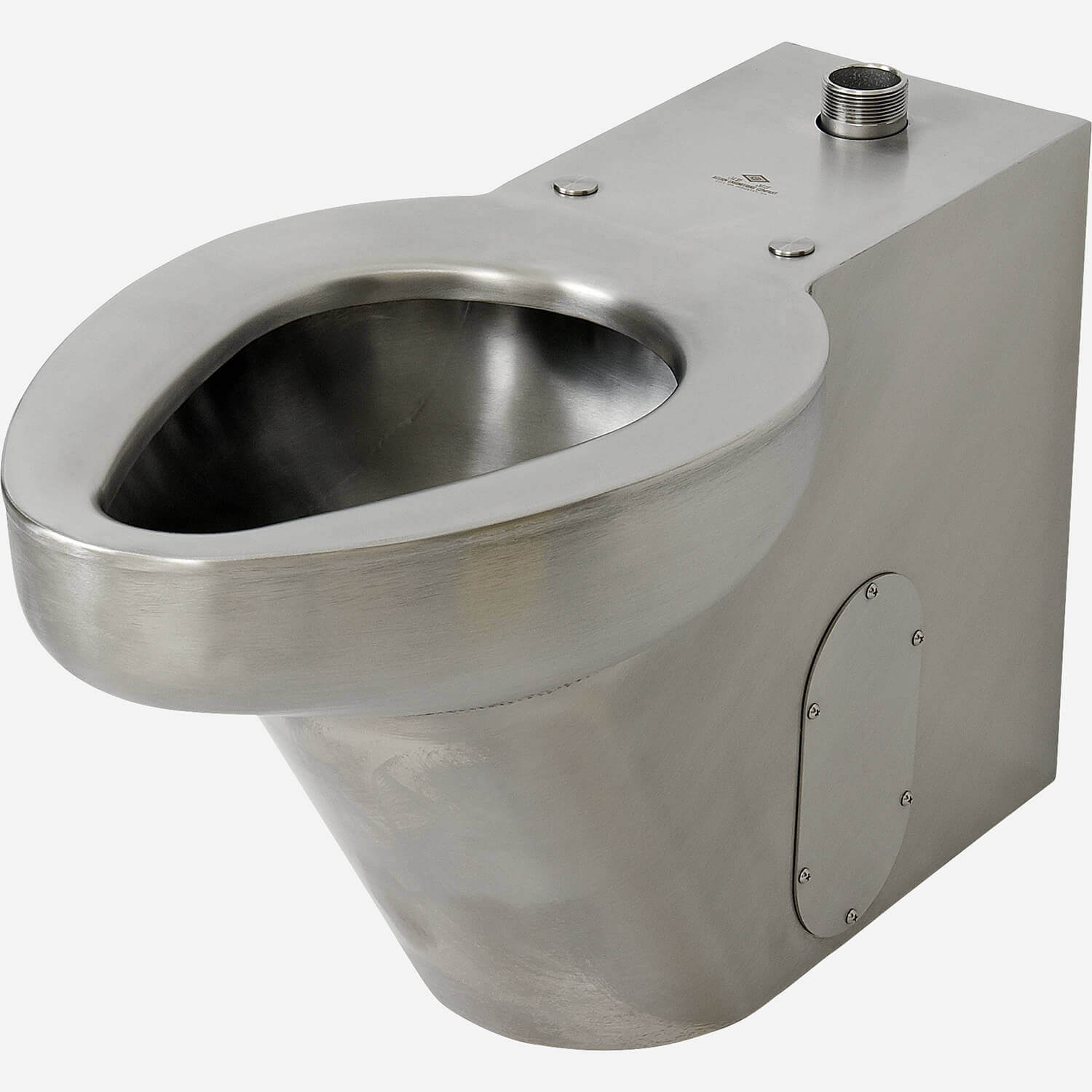

Rear/Front Mount, On/Off Floor, Wall Waste, Siphon Jet, Commercial Stainless Steel Toilet
This stainless steel toilet is designed to be installed either from the front or in a rear (chase) application. It is available with a siphon jet, mounts on or off-floor, has a top or wall water supply, and a wall waste outlet. This toilet can be specified with an ADA seat height of 18 inches (457.2 mm).
Product Function: The toilet is compliant with ASME A112.19.3 and CSA B45.4-2008. The toilet is designed to meet the needs for water conservation and accessibility.
Recent WaterSense® advancements have enabled toilets to use 1.28 gallons (4.85 liters) or less per flush while still providing equal or superior performance. The WaterSense label is used on toilets that are independently certified to meet rigorous criteria for both performance and efficiency. Only water-saving toilets that complete the certification process can earn the WaterSense label. Must use optional HET valves to meet WaterSense label requirements.
Please check with local ADA requirements. ADA compliance is subject to proper installation (including devices such as grab bar) and the interpretations of the local code authority.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Siphon Jet Commercial Stainless Steel Toilet (Off-Floor or On-Floor, Wall Waste) | 173 KB | ||
 | | Wall Supply, Off-Floor, Wall-Waste, Front Mount Siphon Jet | 364 KB | ||
 | | Front Mount 2141 Toilet [2141-W-1-FM | Wall Supply, Off-Floor, Wall Waste; 2141-T-3-FM | Top Supply, Floor Mount, Floor Waste; 2141-T-3-FM-ADA | Top Supply, Floor Mount, Floor Waste, ADA Height] | 231 KB | ||
| | Acorn Engineering - Commercial Water Closets | 170 KB | ||
 | | Acorn Engineering - Commercial Water Closets | 170 KB | ||
| | Acorn Meridian Rear/Chase Mount, Wall Waste, Siphon Jet Commercial Stainless Steel Toilet [2141-T-1-RM | Top Supply, Off-Floor; 2141-W-1-RM | Wall Supply, Off-Floor; 2141-T-2-RM | Top Supply, On-Floor; 2141-W-2-RM | Wall Supply, On-Floor] | 295 KB | ||
| | Enviro-Glaze Powdercoating Color Chart - Update Aug 2026 | 291 KB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
| | Tools / Fasteners: Stainless Steel Security Screws | 138 KB | ||
| | Tools / Fasteners: Washers, Nuts and Anchors | 74 KB | ||
| | Acorn Meridian Front Mount Siphon Jet Commercial Stainless Steel Toilet [2141-T-1-FM | Top Supply, Off-Floor Wall Waste; 2141-W-1-FM | Wall Supply, Off-Floor Wall Waste; 2141-T-2-FM | Top Supply, On-Floor Wall Waste; 2141-W-2-FM | Wall Supply, On-Floor Wall Waste; 2141-T-3-FM | Top Supply, On-Floor Floor Waste; 2141-W-3-FM | Wall Supply, On-Floor Floor Waste] | 166 KB | ||
| | Acorn Meridian Rear/Chase Mount Siphon Jet Commercial Stainless Steel Toilet [2141-T-1-RM | Top Supply, Off-Floor Wall Waste; 2141-W-1-RM | Wall Supply, Off-Floor Wall Waste; 2141-T-2-RM | Top Supply, On-Floor Wall Waste; 2141-W-2-RM | Wall Supply, On-Floor Wall Waste; 2141-T-3-RM | Top Supply, On-Floor Floor Waste; 2141-W-3-RM | Wall Supply, On-Floor Floor Waste] | 131 KB | ||
| | 2141 Siphon Jet Toilet, On-Floor, Floor Waste [2141-T-3-FM | Top Supply, Front Mount; 2141-T-3-FM-ADA | Top Supply, Front Mount, ADA Seat Height; 2141-W-3-RM | Wall Supply, Rear Mount; 2141-W-3-RM-ADA | Wall Supply, Rear Mount, ADA Seat Height] | 584 KB | ||
| | Rear (Chase) Mount 2141 Toilet [2141-W-3-RM | Wall Supply, Floor Mount, Floor Waste; 2141-W-3-RM-ADA | Wall Supply, Floor Mount, Floor Waste, ADA Seat Height] | 123 KB |
Specifications
| Product Type | Toilet |
| Configurations Available | Off-Floor with Wall Waste Outlet (-1), On-Floor with Wall Waste Outlet (-2) |
| Brand | Meridian |
| Material | Stainless Steel |
| Mounting | Front Mounted,Rear-Chase Mounted |
| Accessibility | Option -ADA Available (Taller Toilet) |
| High-Efficiency (Water Use) | Option -HET, -VAC Available |
| Vandal Resistant | Moderate |
| Institutional Applications | Hospital & Treatment Centers, Educational Building, Train Station & Airports, Other Institutional Buildings |
| Commercial Applications | Stores & Shopping Centers, Warehouse, Office Building, Restaurant & Hospitality, Stadium & Arena |
| Park and Recreation Applications | Yes |
| Compliance | WaterSense meets EPA Criteria - certified by IAPMO R&T |
Options
Accessories
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | SW | Accessory: Wall Sleeve |
Miscellaneous
Image | Model | Description | Downloads | |
|---|---|---|---|---|
 | 2 (Toilet) | Option: On-Floor, Wall Outlet Toilet | ||
 | 2-ADA (Toilet) | Option: On-Floor, Wall Outlet Toilet (increased height to meet ADA requirements) | ||
 | BL | Option: Bedpan Lugs | ||
 | CO1 | Option: Cleanout with O-Ring, Connecting to 4" No-Hub | ||
 | CO1-3 | Option: Cleanout with O-Ring, Connecting to 3" No-Hub | ||
 | EG | Option: Enviro-Glaze® Powder Coating | ||
 | FG | Option: Fourteen Gauge Type 304 Stainless Steel | ||
 | FM | Option: Front Mount | ||
 | FV | Option: Mechanical Flush Valve | ||
 | FVBO | Option: Flush Valve by Others | ||
 | FVH | Option: Hydraulic Flush Valve | ||
 | FVL | Option: Flush Valve with Lever Activation | ||
 | FVT | Option: Flush Valve Thru Wall Connection | ||
 | GW | Option: Gasketed Waste | ||
 | HET | Option: High Efficiency Toilet Flush - 1.28 gallons (4.85 liters) per Flush | ||
 | HP | Option: High Polish Finish on Stainless Steel Fixture | ||
 | HS-OFLC | Option: Hinged Seat (Less Cover) | ||
 | HS-OFWC | Option: Hinged Seat Open Front with Cover | ||
 | LPFS | Option: Less Punching for Seat | ||
 | MC | Option: Mounting Carrier | ||
 | MT | Option: Metal Template | ||
 | MVCFV | Push Button Solenoid Flush Valve Application Time-Trol® | ||
 | RM | Option: Rear Mount | ||
 | T (Toilet) | Option: Top Supply for Toilet | ||
 | TF | Option: Transformer for AC Power Valve | ||
 | ULF (Toilet) | Option: Ultra Low Toilet Flush - 1.6 gallon (6 liter) per Flush | ||
 | W (Toilet) | Option: Wall Supply for Toilet |
Details
Regularly Furnished: This toilet is manufactured with heavy-gauge type 304 stainless steel and features a wall waste. It is available as an off-the-floor unit or on-the-floor unit (both versions provide a standard seat height of 15" (381 mm). It can be configured with top supply (typically with an exposed flush valve, wall supply (typically with a concealed flush valve), front mount, rear (accessible pipe chase) mount, and ADA 18" (457 mm) seat height. A rear (chase), floor mount Ligature-Resistant version of this toilet is also available by specifying LR2141.
FRONT MOUNT
[ submittal | install guide ]
| Model | Flush Valve | Off/On Mount | Front/Rear Mount | ADA |
| 2141-T-1-FM | Top Supply | Off-Floor | Front |  If mounted at ADA seat height |
| 2141-W-1-FM | Wall Supply | Off-Floor | Front | If mounted at ADA seat height |
| 2141-T-2-FM | Top Supply | On-Floor | Front | -- |
| 2141-W-2-FM | Wall Supply | On-Floor | Front | -- |
| 2141-T-2-FM-ADA | Top Supply | On-Floor | Front | Manufactured with ADA seat height |
| 2141-W-2-FM-ADA | Wall Supply | On-Floor | Front | Manufactured with ADA seat height |
REAR MOUNT
[ submittal | install guide ]
| Model | Flush Valve | Off/On Mount | Front/Rear Mount | ADA |
| 2141-T-1-RM | Top Supply | Off-Floor | Rear | If mounted at ADA seat height |
| 2141-W-1-RM | Wall Supply | Off-Floor | Rear | If mounted at ADA seat height |
| 2141-T-2-RM | Top Supply | On-Floor | Rear | -- |
| 2141-W-2-RM | Wall Supply | On-Floor | Rear | -- |
| 2141-T-2-RM-ADA | Top Supply | On-Floor | Rear | Manufactured with ADA seat height |
| 2141-W-2-RM-ADA | Wall Supply | On-Floor | Rear | Manufactured with ADA seat height |
