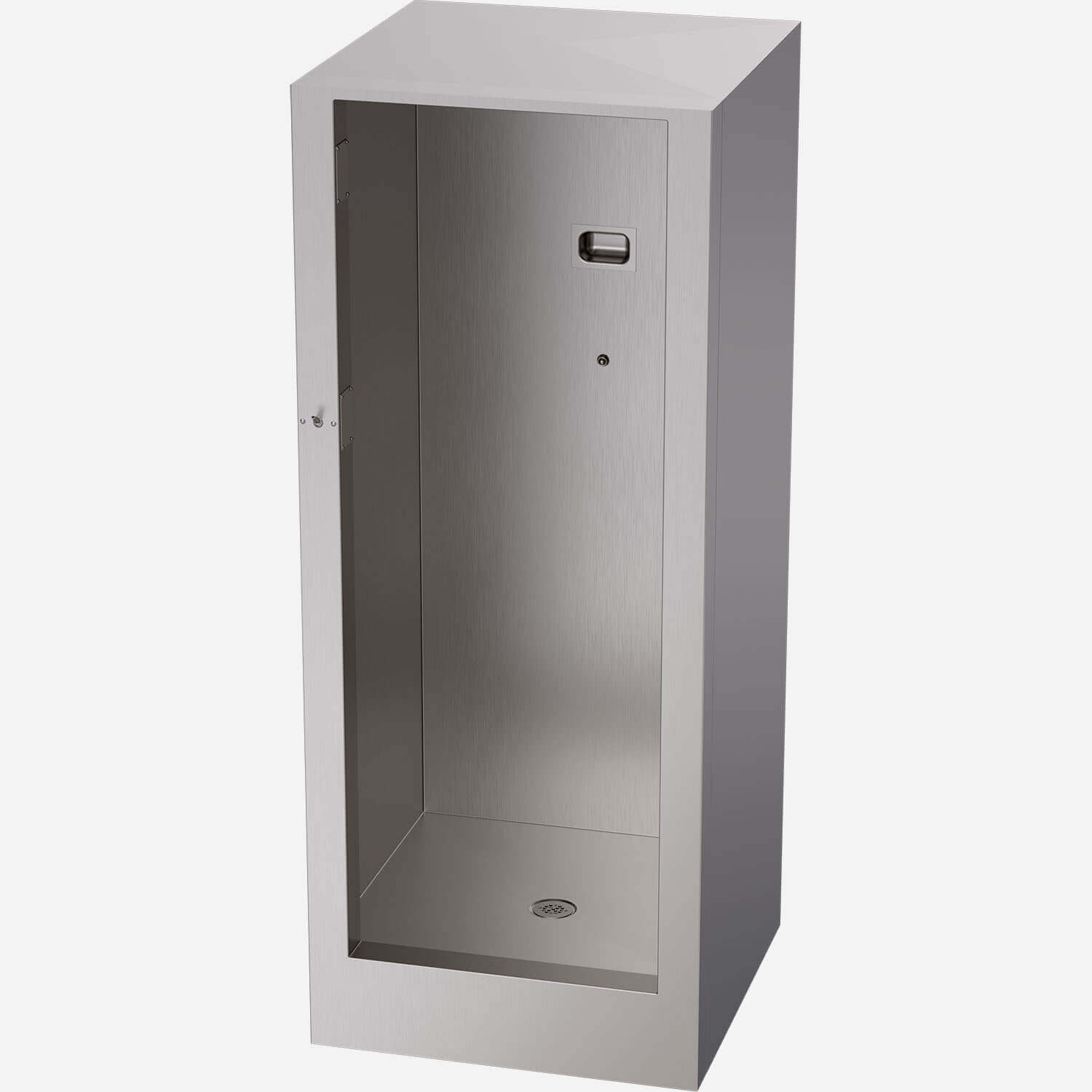

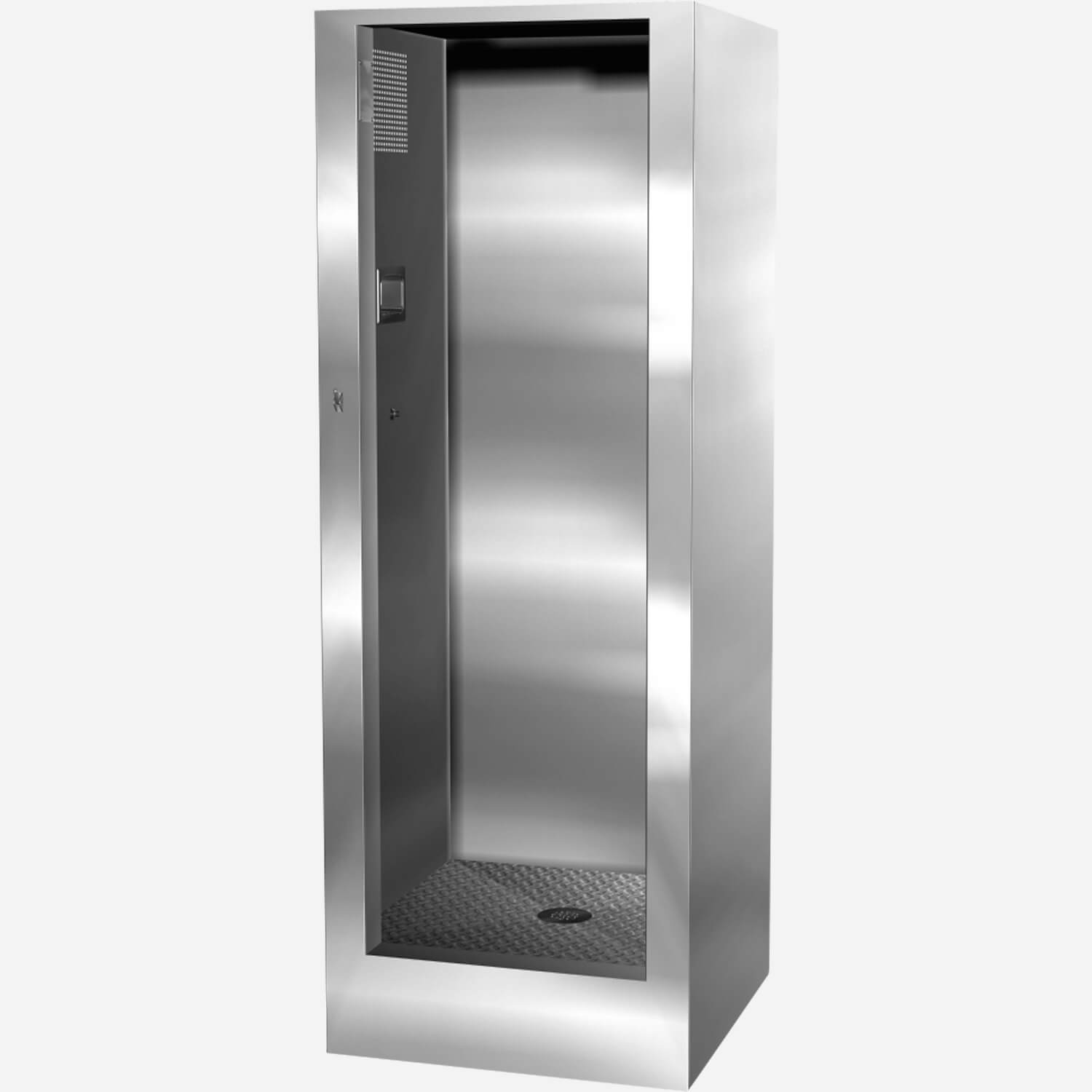

Secur-Care® Ligature-Resistant, Stainless Steel Security Cabinet Shower
Learn More on Ligature-Resistant Fixtures

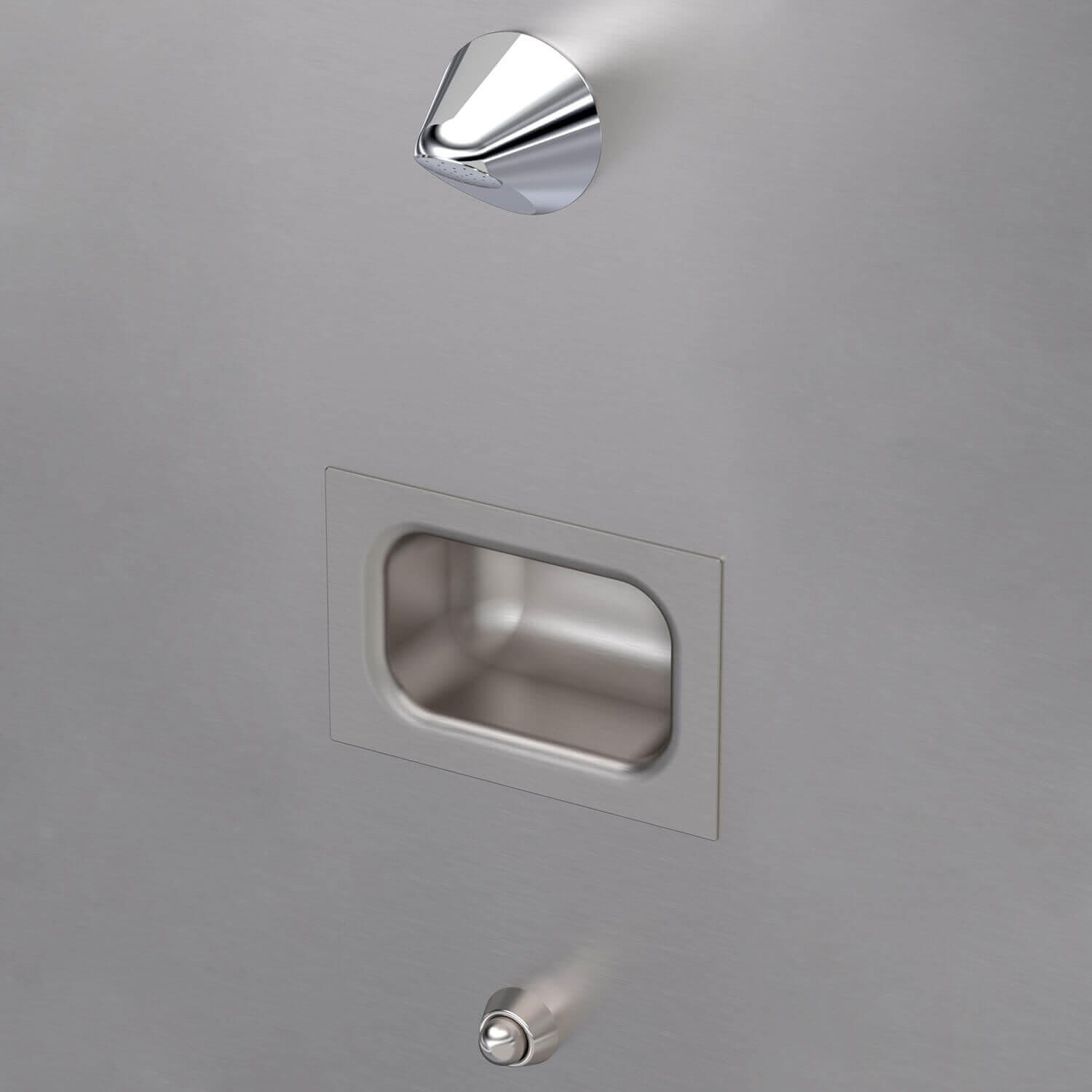

The conical showerhead and the provided valve choices contribute to the ligature-resistant features of this shower. Cabinet shall be one-piece, heavy-gage type 304 stainless steel. All seams shall be continuously welded. Exposed surfaces shall have a satin finish, except the shower floor, which shall have a slip-resistant, matte finish. Drain includes ligature-resistant baffle. Conical Showerhead shall be mounted on the inside of the door jamb with concealed piping to the chase wall. The valve shall be Air-Control metering type (other valve options are available). Collapsible towel hook shall also be welded on the outside of the entry.
A popular tempering option is an ASSE 1016-compliant temperature/pressure balancing valve with an ADA ligature-resistant tri-lever control handle. A variation includes a metering valve working with the T/P valve.
Downloads
Resource Type | Title | Description | File Size | Action | |
|---|---|---|---|---|---|
 | | Ligature Resistant Stainless Steel Security Cabinet Showers [LR1730- 30 x 30 x 88"; LR1732- 32 x 32 x 88"; LR1736- 35-3/4 x 35-3/4 x 88"] | 2 MB | ||
| | Ligature Resistant Stainless Steel Security Cabinet Showers [LR1730- 30 x 30 x 88"; LR1732- 32 x 32 x 88"; LR1736- 35-3/4 x 35-3/4 x 88"] | 247 KB | ||
| | Secur-Care® Ligature-Resistant Flyer (pdf) | 458 KB | ||
| | Overview of MGI Divisions | 718 KB | ||
| | Secur-Care® Ligature-Resistant Brochure (pdf) | 3 MB | ||
| | Commercial Showers Brochure (pdf) | 2 MB | ||
| | Who we are, Our History, Morris Group International Today | 27 MB | ||
| | Cleaning and Care Guide for Stainless Steel, Enviro-Glaze® Powdercoating , Corterra® Solid Surface , & Terrazzo | 1 MB | ||
 | | Ligature Resistant Stainless Steel Security Cabinet Shower - 30 Width x 30 Depth x 88" Height (76.2 x 76.2 x 223.5 cm) | 154 KB | ||
| | Ligature Resistant Stainless Steel Security Cabinet Shower - 30 Width x 30 Depth x 88" Height (76.2 x 76.2 x 223.5 cm) | 440 KB | ||
 | | Learn how to adjust the stop limits and temperature on a SV16 (MGI ConTrols® SV16) shower mixing valve. The SV16 ligature-resistant temperature/pressure balancing valve provides multiple layers of bather safety in a shower or bathtub. | 134 KB |
Specifications
| Brand | Secur-Care®, Acorn ConTrols® |
| Material | Stainless Steel |
| Mounting | Rear-Chase Mounted |
| Product Type | Shower |
| Product Features | Ligature-Resistant Design, Cabinet Shower, Conical Showerhead(s) |
| Ligature Resistant | Yes |
| Compliance | Ligature-Resistant |
Models

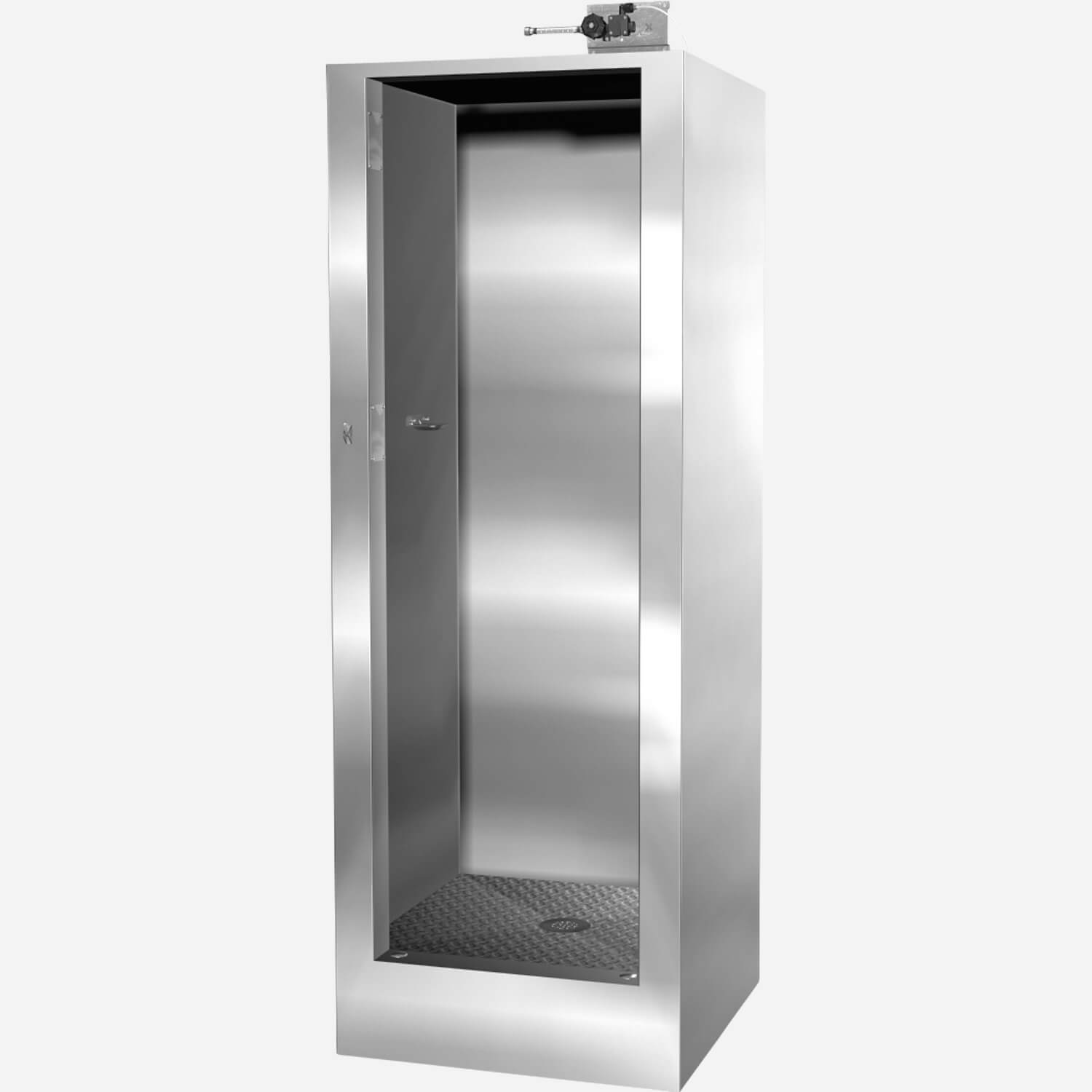

LR1730 Shower Cabinet -
30 Width (side-to-side) x 30 Depth (front-to-back) x 88" Height (76.2 x 76.2 x 223.5 mm)
LR1732 Shower Cabinet -
32 Width x 32 Depth x 88" Height (81.3 x 81.3 x 223.5 mm)
LR1736 Shower Cabinet -
35-3/4 Width x 35-3/4 Depth x 88" Height (90.8 x 90.8 x 223.5 mm)
Valve options shown below.
Model Number -8
ASSE 1016 Compliant Temperature-Pressure Balancing Mixing Valve with ADA Ligature-Resistant Tri-Lever Handle
Patent No D697.591 and 10,474,170 B2
-8MV
ASSE 1016 Compliant Temperature-Pressure Balancing Mixing Valve with ADA Ligature-Resistant Tri-Lever Handle and Pushbutton for Metered Valve
Patent No D697.591 and 10,474,170 B2
Electronic valve options:
Specify: -MTP1 , -MTPP1 , -EVS1 , -EVSP1 , -MVC1 , -MVC1-CI , -PPZ1 , -EVS2 , -EVSP2 , -MTP2 , -MTPP2 , -PPZ2
